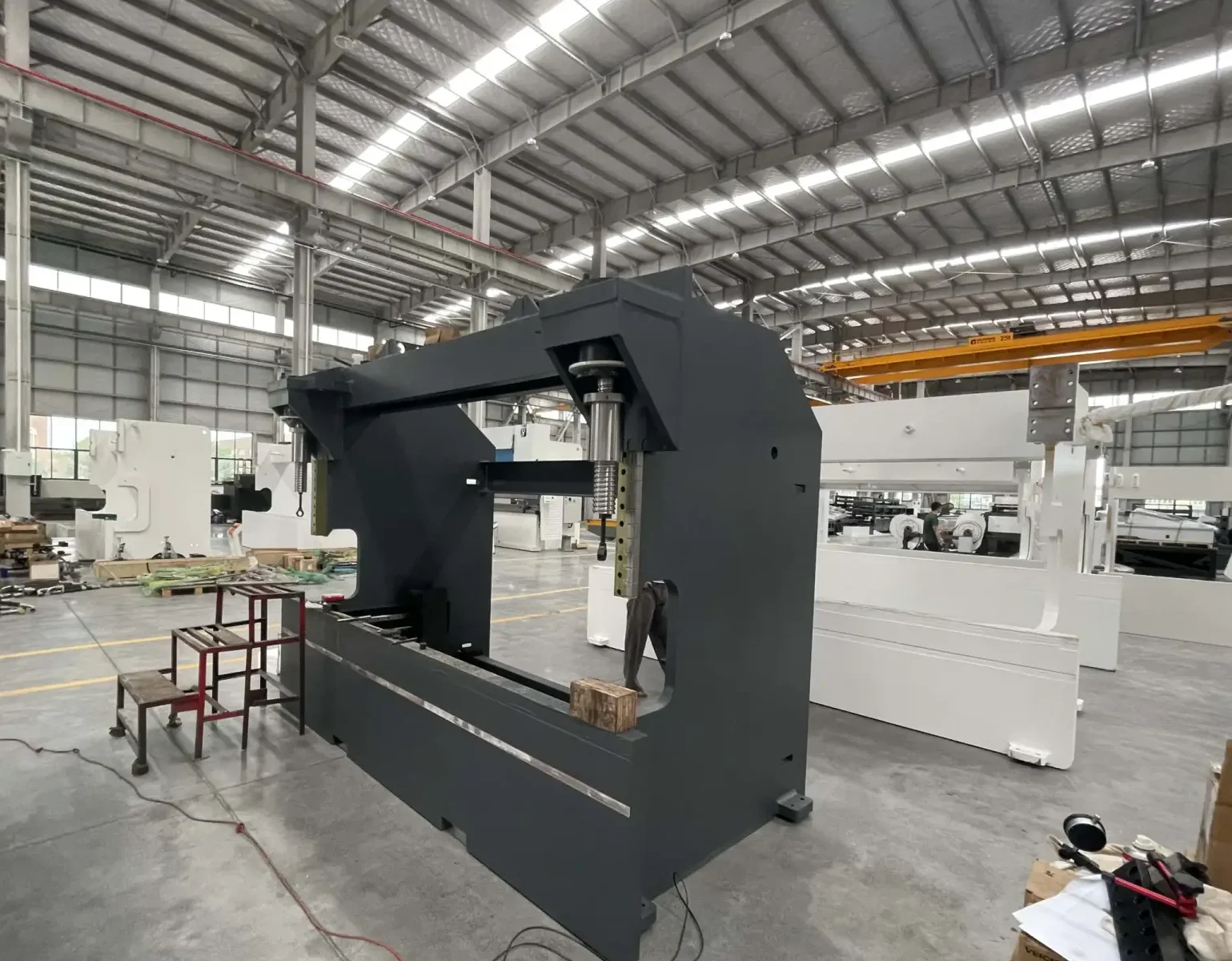

It adopts a fully welded steel structure with sufficient strength and rigidity, and undergoes realistic load condition simulation through finite element analysis to meet the required load conditions. After welding, annealing treatment is applied to eliminate residual stresses in the frame.
All Electric, servo driven
Small workpieces
Overview
No hydraulic oil
Environmentally friendly & energy-saving.
Imported grinding screw
Error ±0.01mm, slider speed 200mm/s.
6+1 axis servo control
Dealing with complex workpieces with ease.
Synetc/Delem/Esa/Cybtouch
A variety of CNC systems are available.
Fully closed-loop control
Givi Magnetic scale，accurate feedback every step.
Parameters & main configuration
Parameters are for reference only and our company’s products will be updated without prior notice.
To obtain the latest configuration parameters,please contact us.
Catalog download
1200-1600mm
600-800mm
400mm
200mm
Get your quotation
- Warranty: Two Years
- Customization of Complex Graphics: Sample Production Accepted
- Delivery Time: Most Models In Stock, Customized Models in 30 Days
- Service and Training: Unconditional Video Guidance for First Six Months, Lifetime Maintenance
- Payment Terms: TT 30%, Full Balance Due Before Shipment
* Copyright belongs to Machnist machine tool.Co.Ltd.
full electric
Features
This design is suitable for high-precision small workpieces,
represents a trend in future development.
01
energy-saving：50%
High energy efficiency: Driven by a servo motor, it can adjust power output according to actual needs, avoiding the energy waste common in traditional hydraulic systems and improving energy utilization efficiency.
02
eco-friendly
No hydraulic oil pollution: Traditional hydraulic bending machines require hydraulic oil as a power transmission medium, while pure electric bending machines do not, thus avoiding issues of hydraulic oil leaks and environmental oil pollution.
Reduced noise pollution: Pure electric bending machines typically produce lower noise levels compared to traditional hydraulic systems, reducing noise pollution in the work environment.
03
Higher precision
The minimum movement setting unit for the Y-axis is 0.005mm, with a repeat positioning accuracy of ±0.01mm.
04
Fast speed
Approach and return speed of 200mm/s, working speed of 0-20mm/s.”
05
Low maintenance cost
Due to its simple structure, low maintenance cost, and less susceptibility to damage.
The main structure
of full electric press brake
Frame
Slider
Controller
Grating ruler
Punch & die
Frame
Slider

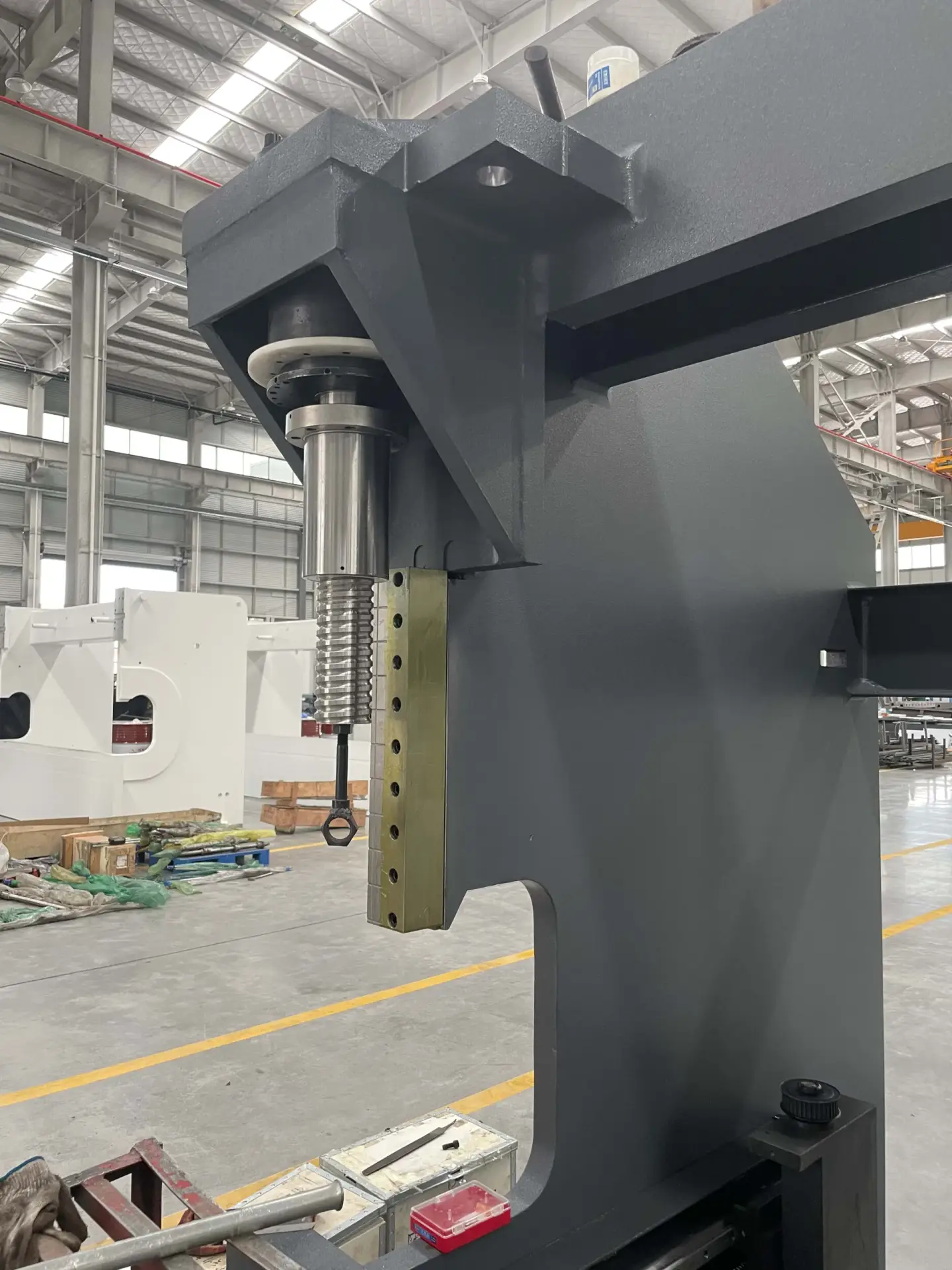

This full electric press brake adopts an eccentric shaft-guided slide block structure, featuring a simple overall structure that is convenient for debugging and maintenance.
Controller
The standard configuration utilizes a Chinese CNC bending system, providing flexible and user-friendly operation without the need for extensive operating experience. The visual touchscreen control allows for easy operation, and each axis adopts relative position recording of the origin, eliminating the hassle of origin disappearance and resetting. Optional configurations include the Taiwan Syntec 72BA or the Dutch Delem system.
Grating ruler
The Italian GIVI grating ruler, a fully closed-loop control system, with a repeat positioning accuracy of ±0.01mm.
Punch & die
It utilizes standard CNC double-V molds, and custom molds can also be designed according to customer workpiece requirements.

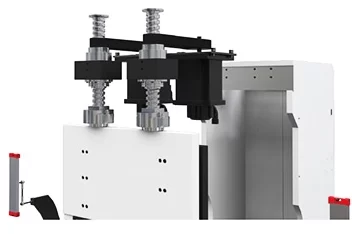

Direct & belt drive
Below 40 tons, belt.
More than 40 tons, directly driven by motor
The full electric servo press brake is driven by servo motor, which converts electrical energy into mechanical energy, reducing energy wastage. The servo can precisely and rapidly adjust the output of the motor based on system signals.

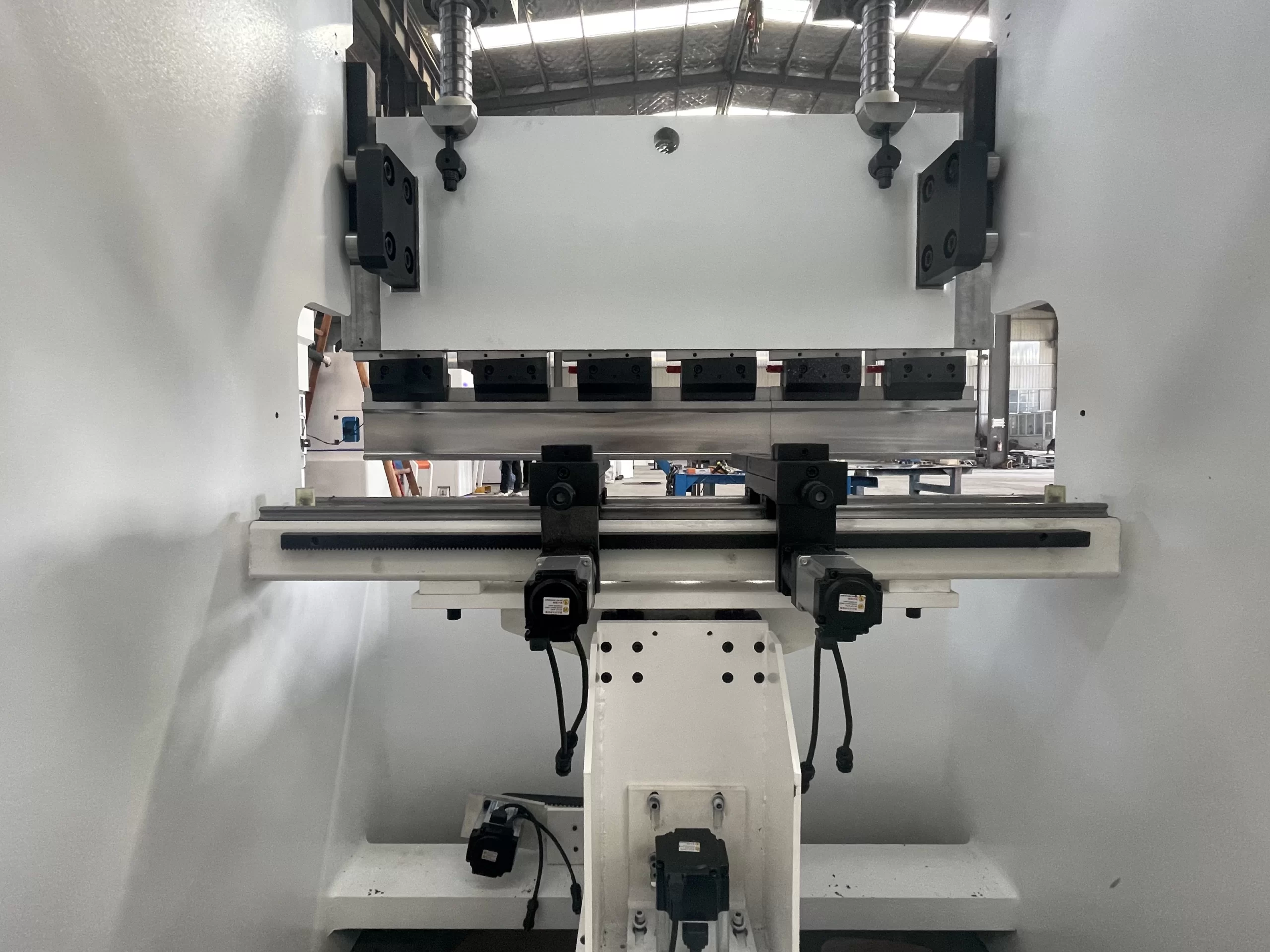

Advanced quick clamp
- The punch of the bending machine can be disassembled and installed directly from below.
- Quickly change molds to adapt to different production needs and improve production efficiency.
Previous slide
Next slide
Extra large avoidance space.
Deepened throat. Can be adapted to various non-standard molds.
