CNC Electro-Hydraulic Press Brake
PRO CNC
Press Brake
250T3200
A production-oriented CNC bending solution with reliable global components, closed-loop ram control and practical configuration for professional sheet metal fabrication.
Machine Profile
250T3200 PRO Series Overview
This manual presents the standard configuration and available options for the MACHNIST PRO Series CNC press brake, using the 250T3200 model as a reference. The appearance, component brands and selected functions can be confirmed according to the final project requirement.
(Customizable)
(Customizable)
2D Programming
Included Equipment
Standard Configuration
The PRO Series is configured for stable production, accurate bending control and practical daily operation. The table below summarizes the standard configuration of the sample 250T3200 machine.
| Item | Standard Configuration | Brand / Origin |
|---|---|---|
| Frame Structure | Heavy-duty welded frame with tempering treatment | MACHNIST / China |
| CNC Controller | DA53TX with 2D programming capability | Delem / Netherlands |
| Hydraulic Control | Proportional valve control for independent Y1 / Y2 ram positioning | Bosch Rexroth / Germany |
| Feedback System | Linear scale feedback and correction for ram positioning | GIVI / Italy |
| Item | Standard Configuration | Brand / Origin |
|---|---|---|
| Cylinders | Standard stroke hydraulic cylinders | Wuyang / China |
| Oil Pump | Hydraulic oil pump matched to machine specification | First / Germany or Sunny / USA |
| Hydraulic Tubing | Compression fittings and hydraulic pipeline connections | EMB / Germany |
| Backgauge | X and R axis backgauge system | MACHNIST / China |
| Crowning Table | Electric mechanical crowning compensation table | MACHNIST / China |
| Item | Standard Configuration | Brand / Origin |
|---|---|---|
| Standard Tooling | 42CrMo tooling with whole-body heat treatment and blackened surface; tool type according to machine standard | MACHNIST / China |
| Main Motor | Standard main motor | Siemens / Germany |
| Electrical Components | Main low-voltage electrical components | Schneider Electric / France |
| Transformer | Control transformer | Taishun / Taiwan |
| Servo Motor | Backgauge servo drive motor | Inovance / China |
| Foot Switch | Foot pedal with emergency stop button | MACHNIST / China |
| Safety Features | Door-open power-off, overload protection, three-color indicator light, side ladder, left/right/rear guarding | Standard Configuration |
Machine Data
Technical Specifications
The parameter section of the supplied source document is currently blank. The data below is provided as an editable 250T3200 layout sample for website preview and should be replaced or confirmed before official publication.
| Parameter | Specification |
|---|---|
| System Axis | 4+1 Axis |
| Nominal Force | 250 Ton / 2500 kN |
| Bending Length | 3200 mm |
| Distance Between Columns | 2600 mm |
| Parameter | Specification |
|---|---|
| Stroke | 250 mm |
| Daylight | 500 mm |
| Throat Depth | 320 mm |
| Table Height | 850 mm |
| Parameter | Specification |
|---|---|
| Approach Speed | 120 mm/s |
| Working Speed | 8-12 mm/s |
| Return Speed | 100 mm/s |
| Parameter | Specification |
|---|---|
| X-Axis Travel | 600 mm |
| R-Axis Travel | 200 mm |
| Number of Fingers | 4 pcs |
| Parameter | Specification |
|---|---|
| Main Motor Power | 15 kW |
| Hydraulic Pressure | 275 bar |
| Oil Tank Capacity | 400 L |
| Machine Size | 4200 x 1800 x 2600 mm |
| Machine Weight | 8500 kg |
| Power Supply | 380 V / 50 Hz / 3 Phase |
Component Presentation
Detailed Configuration
Insert your actual component photos in the reserved areas below. The layout uses a photo-and-description structure so customers can quickly understand the machine configuration and component quality.
Real Factory Photo

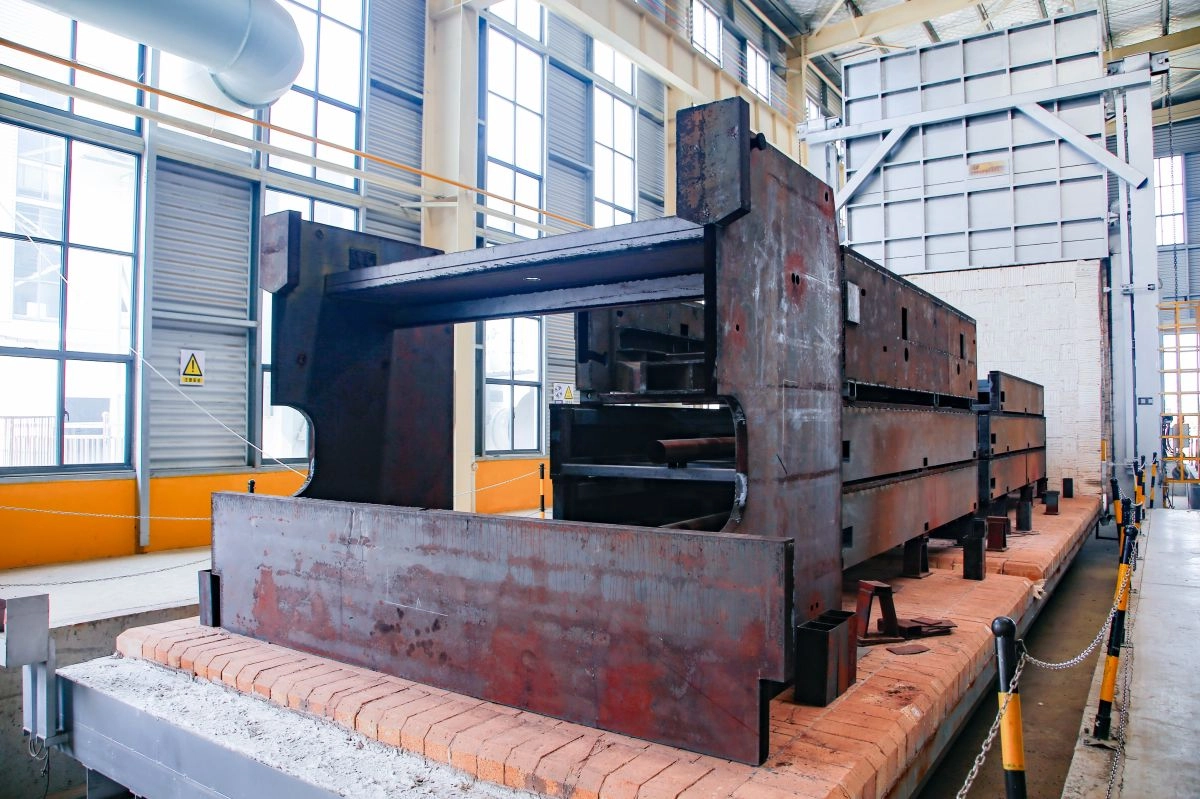

Heavy-Duty Frame
Welded machine structure with tempering treatment to improve long-term stability and reduce deformation during heavy bending operations.
Controller Photo
Delem DA53TX
Netherlands-origin CNC controller with 2D programming support for efficient daily bending setup and practical operator control.

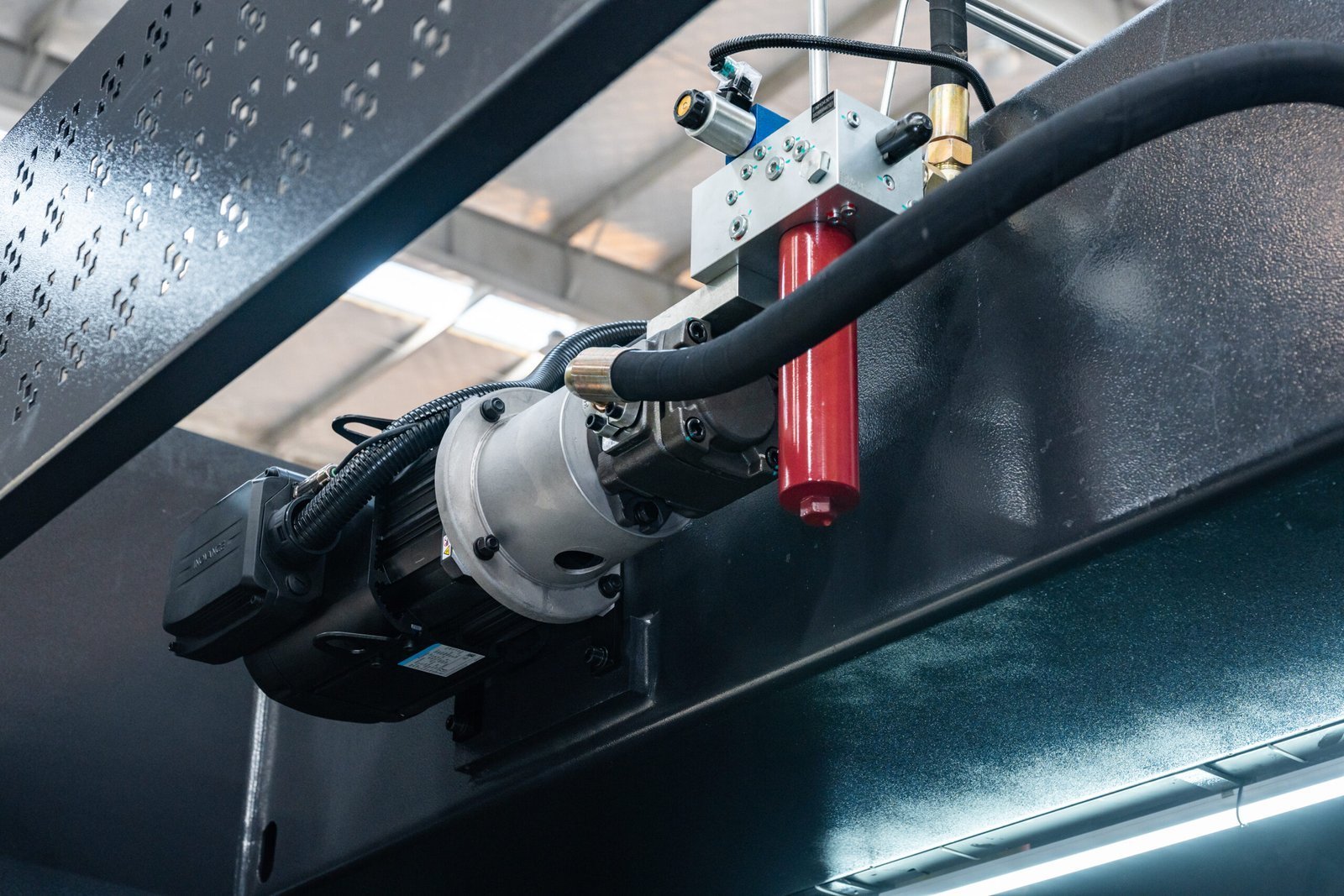

Hydraulic Valve
Hydraulic Valve System
Bosch Rexroth proportional valve technology supports stable hydraulic performance and independent Y1 / Y2 ram control.
Actual Photo
Linear Encoder Feedback
Italian GIVI linear scales provide ram position feedback, helping the CNC system correct positioning during bending.
Actual Photo
Hydraulic Cylinders
Standard-stroke hydraulic cylinders are matched to the selected machine specification for stable ram movement and force output.
Oil Pump
Hydraulic Oil Pump
The standard hydraulic power package uses a matched oil pump from First or Sunny according to the confirmed production configuration.
Tube Fittings
Hydraulic Tubing
EMB compression fittings are used for reliable hydraulic pipeline connections and convenient machine maintenance.
Actual Photo
X + R Backgauge
Standard two-axis backgauge positioning supports common production requirements with repeatable flange positioning.
Actual Photo
Mechanical Crowning Table
Electric mechanical crowning compensates for deflection during bending and helps maintain consistent angles along longer workpieces.
Actual Photo
Standard Tooling
42CrMo tooling with whole-body heat treatment and blackened surface. The supplied profile is determined by the machine's standard configuration.
Actual Photo
Electrical & Drive Components
Standard configuration includes Siemens main motor, Schneider electrical components, Taishun transformer and Inovance backgauge servo motor.
Actual Photo
Standard Safety Features
Door-open power-off protection, overload protection, indicator light, side ladder and left/right/rear guarding support safer operation.
Upgrade Choices
Optional Equipment
The following options can be selected according to the part geometry, production efficiency requirement and automation target.
Backgauge Photo
Additional Backgauge Axes
Upgrade to 4+1+2 Axis or 6+1 Axis configuration for increased positioning flexibility. System-controlled functions may require additional modules and final configuration confirmation.
Actual Photo
Main Servo Motor
An optional main servo motor is available for customers seeking improved energy efficiency, lower operating noise and more environmentally focused production.
Actual Photo
DSP Laser Safety Protection
Optional DSP laser protection helps reduce operator risk at the tooling area and supports safer bending operation in production environments.
Controller Photo
Delem DA58TX
Optional controller upgrade for customers requiring more advanced CNC functions, including automatic bend sequence calculation according to the selected configuration.
Actual Photo
Front Sheet Follower
A sheet follower assists with lifting large or heavy workpieces during bending, reducing manual handling and improving production ergonomics.
Reference Photo
Advanced Requirements
For all-electric bending, increased stroke, hydraulic clamping, 3D programming, 3D importing, angle measurement or robot bending, please consult our sales team for a MAX or ULTRA Series solution.
Need a Custom Configuration?
Send your part drawings and production requirements. Our technical team will recommend the appropriate machine model and option package.
Service Policy
Warranty, Training & After-Sales Support
MACHNIST provides technical assistance throughout machine installation, training and operation. Binding terms shall be subject to the signed contract for the selected machine configuration.
Whole Machine Warranty
3-year whole-machine warranty is available for the proposed machine. The applicable warranty scope and specific model are subject to the signed contract.
Installation Guidance
Free installation guidance is provided without a time limit, helping the customer complete machine setup and initial preparation.
Operator Training
Free video or real-time online training is available after the machine enters normal use, up to 2 hours per day within 2 weeks, with a total maximum of 28 hours.
Lifetime Technical Guidance
Lifetime free technical guidance. Our team will reply to technical consultation requests within 12 hours.
After-Sales Diagnosis
Reported after-sales issues will be checked within 24 hours. If the issue is determined to be caused by the machine, replacement parts will be supplied free of charge for customer replacement; return of faulty parts may be required when necessary.
Delivery Time & Delay Term
For a standard non-customized machine, the reference delivery time is 35 working days. Where agreed in the signed contract, delay compensation may be calculated at 0.5% per day, capped at 10%.
