High-Speed Tube Laser Cutting for Diverse Profiles
Built for efficient processing of metal tubes and structural profiles, the MACHNIST two-chuck tube laser cutting machine integrates high-speed chuck rotation, precision servo motion and a rigid welded bed for stable, consistent cutting performance.

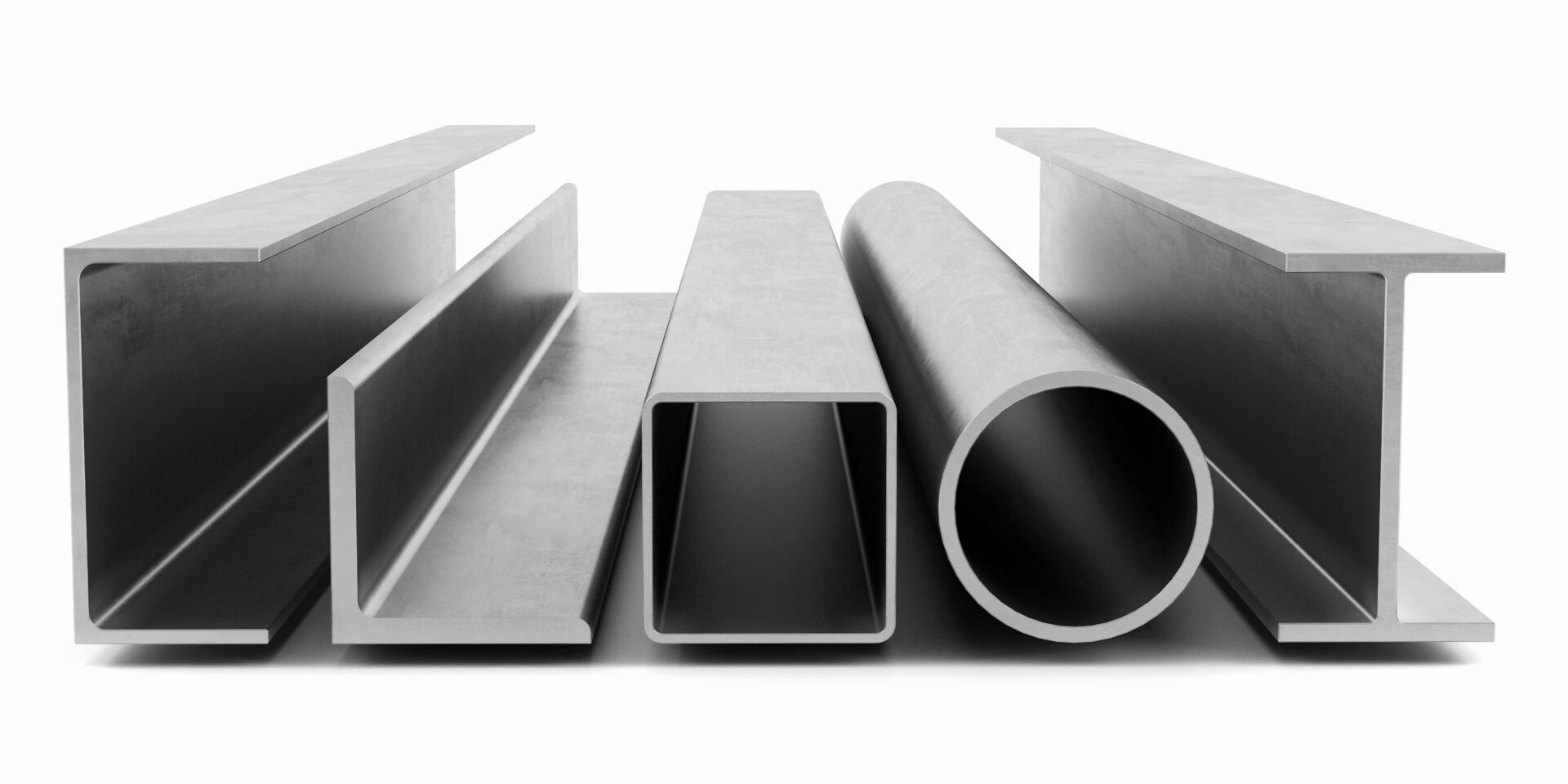

Cut Multiple Tube Types and Structural Profiles
Designed for versatile laser processing, this machine handles common tubes and structural profiles used in metal fabrication, construction equipment, furniture, automotive components and general industrial production.

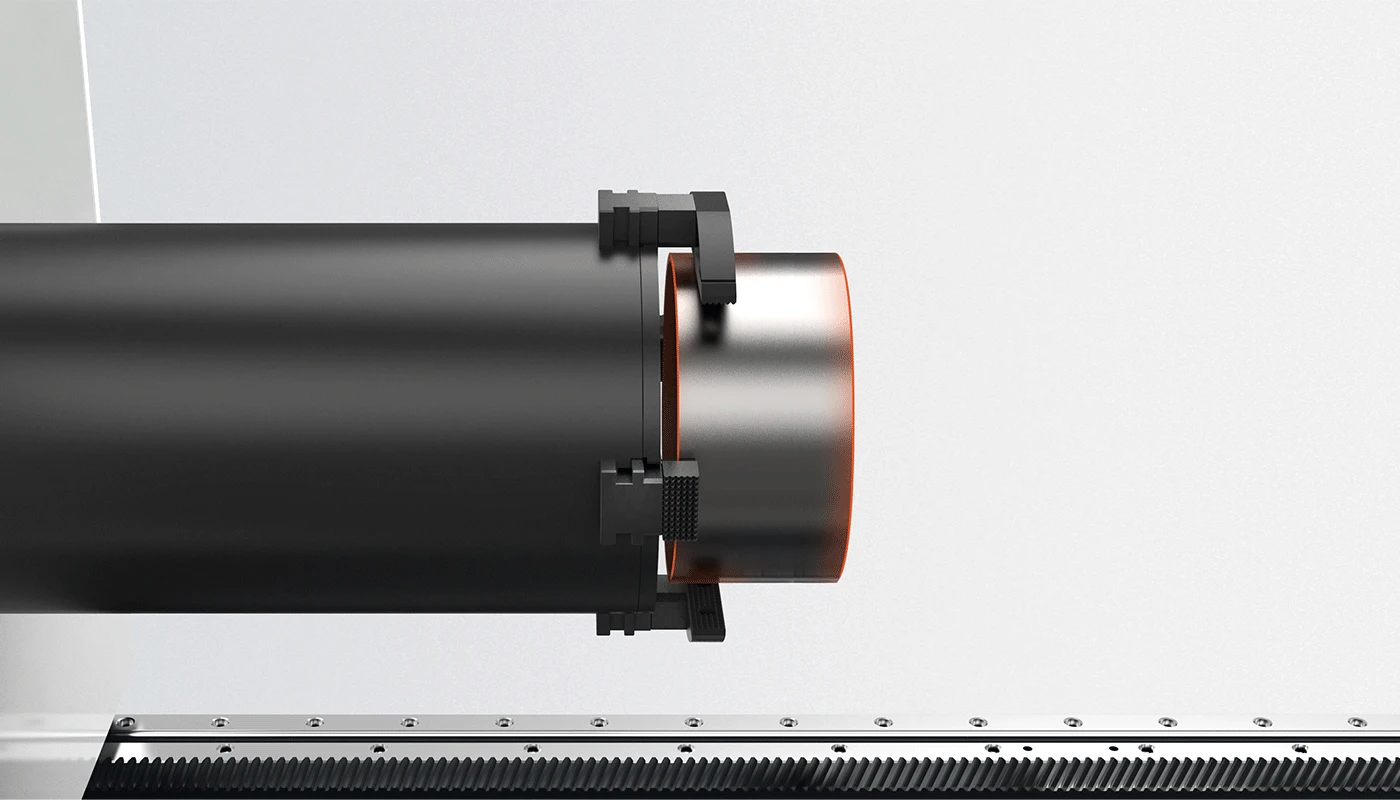

Fast Chuck Rotation with Short Tail Material
High-speed rotary performance and rapid loading movement improve tube processing efficiency, while the 40 mm short-tail design helps reduce material waste during production.
Max. Rotation Speed
Max. Loading Speed
Shortest Cutting Tail Material

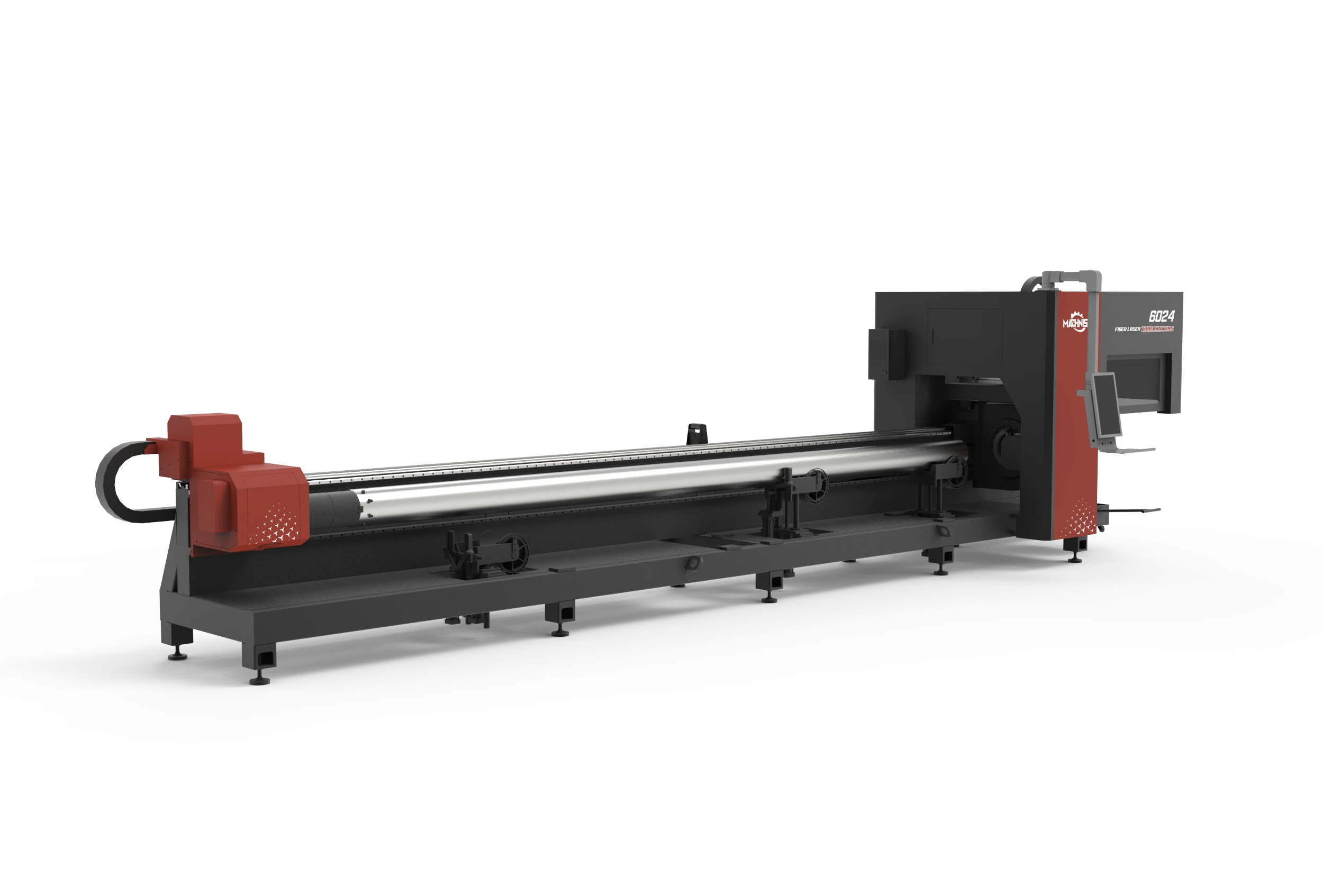

Vertical Plate-Welded Bed for Long-Term Stability
The machine bed adopts a reinforced vertical plate-welded construction, creating a rigid load-bearing foundation for high-speed chuck rotation and long-tube feeding. This structure enhances resistance to torsional deformation and supports consistent cutting accuracy during continuous operation.

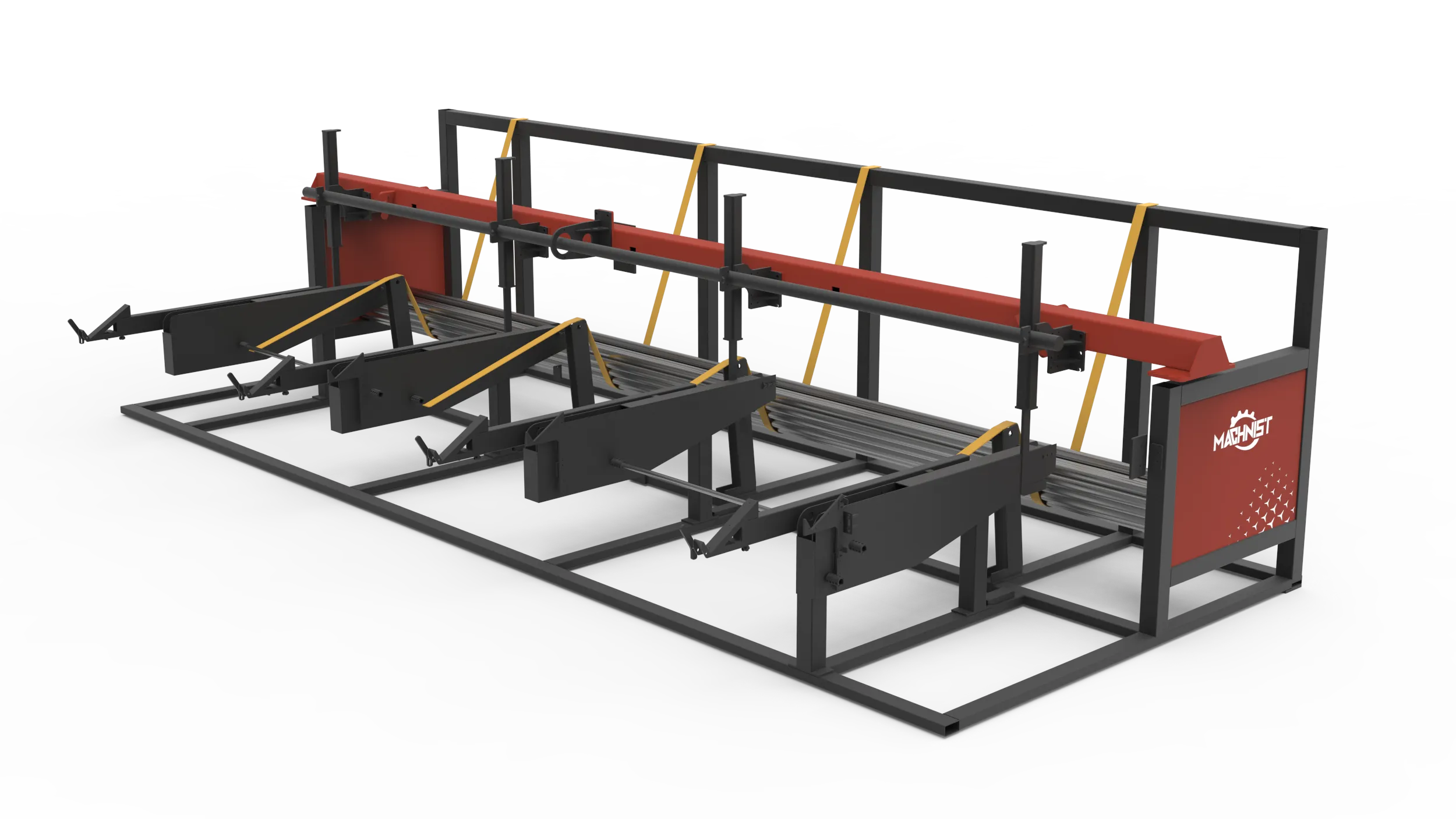

Auxiliary Loading & Unloading System
The optional auxiliary loading and unloading system improves material handling efficiency, reduces manual intervention and supports a more continuous workflow for batch tube cutting production.
Reliable Components for Precision Tube Cutting
Important components are selected for processing stability, positioning performance and reliable industrial operation. The configuration below is based on the supplied 3000 W machine specification.
MAX / RAYCUS · 3000 W
Fiber Laser Source
Stable laser output for efficient tube cutting and consistent edge quality.

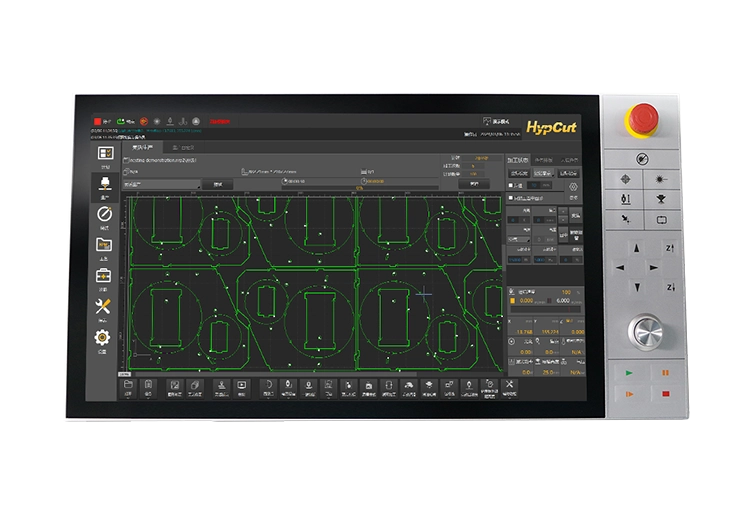

BOCHU SYSTEM
Tube Cutting Control System
Professional control platform for tube cutting programming and motion control.
Cutting Head Image Here
BLT310
Laser Cutting Head
Dedicated cutting-head solution for precise tube and profile processing.
Drive Image Here
DELTA · TAIWAN
Servo Drive System
High-speed servo motion for chuck drives, chuck travel, X axis and Z axis.
Image Here
PRECISION TRANSMISSION
Guide Rail & Gear Rack
Precision transmission components support smooth and stable axis movement.
Image Here
INDUSTRIAL SUPPORT SYSTEM
Lubrication & Electrical Control
Automatic lubrication and industrial control components support stable operation.
| Component | Brand / Specification | Description |
|---|---|---|
| Machine Bed | T2360F-A | Vertical plate-welded machine bed |
| Fiber Laser Source | MAX / Raycus | 3000 W |
| Water Chiller | Hanli | Dual-temperature, dual-control cooling system |
| Laser Cutting Head | BLT310 | Dedicated tube cutting configuration |
| Control System | BOCHU | Professional tube laser cutting control system |
| Front Chuck Drive | Delta, Taiwan | High-speed servo drive |
| Rear Chuck Drive | Delta, Taiwan | High-speed servo drive |
| Rear Chuck Travel Drive | Delta, Taiwan | High-speed servo drive |
| X / Z Axis Drive | Delta, Taiwan | High-speed servo drive |
| Reducer with Gear | Motovario | 3 sets |
| Electrical Control | DELIXI | Industrial electrical components |
| Guide Rail | Taiwan Brand | Precision linear motion support |
| Gear Rack | Taiwan Brand | Precision rack transmission |
| Proportional Valve | STARLET | Gas control component |
| Automatic Lubrication | Electric Quantitative Lubrication | Includes gear rack lubrication |
| Industrial Computer | Industrial PC | Dedicated for laser operation |
| Solenoid Valve | AIRTAC, Taiwan | Pneumatic control component |

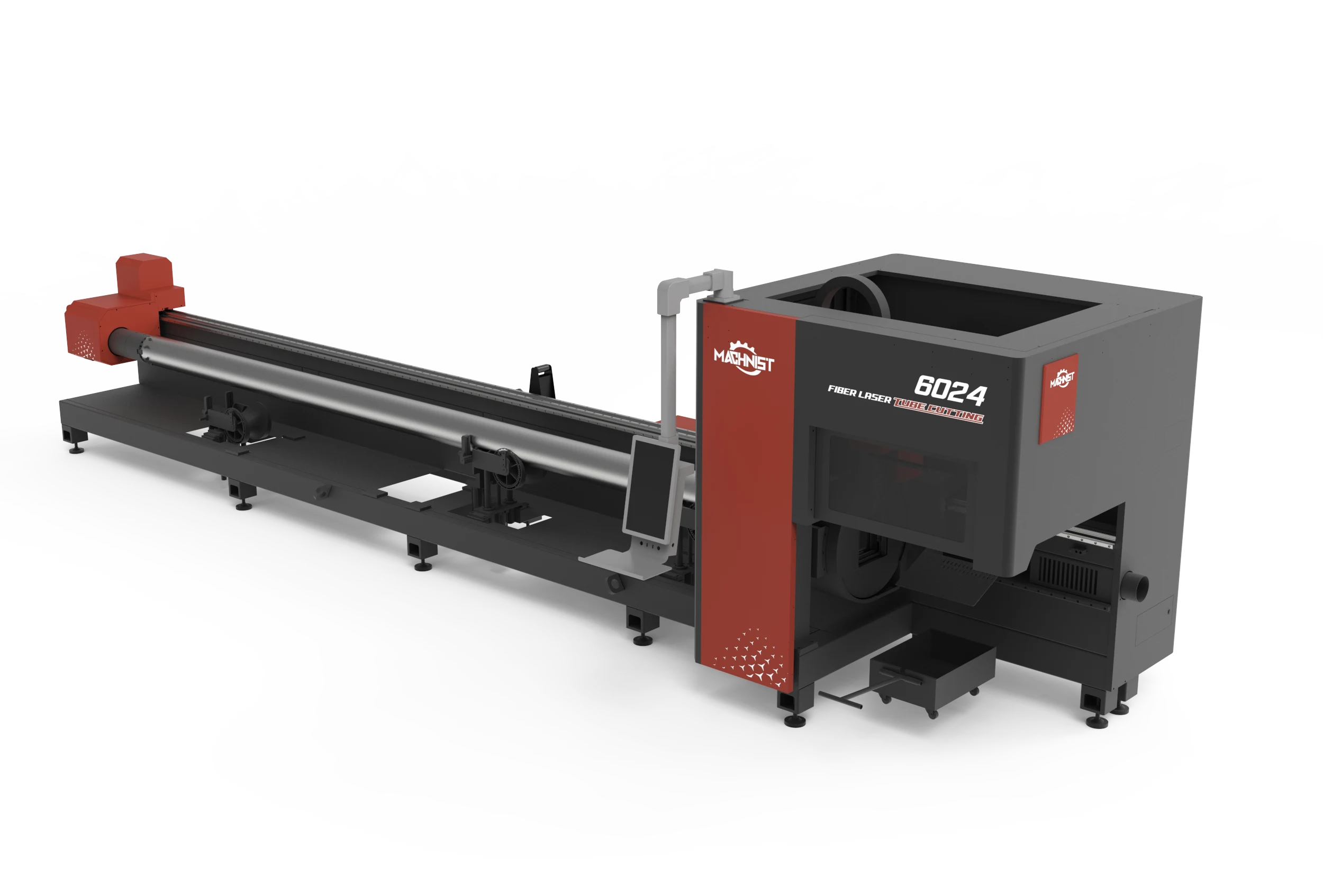

T2360F-A Two-Chuck Tube Laser Cutting Machine
Standard technical parameters based on the supplied machine configuration. Final specifications can be confirmed according to the selected laser power, tube profile and automation requirements.
Configure Your Tube Laser Cutting Solution
Tell us your tube profile, diameter, wall thickness and production requirements. MACHNIST will recommend the suitable tube laser cutting configuration for your application.
