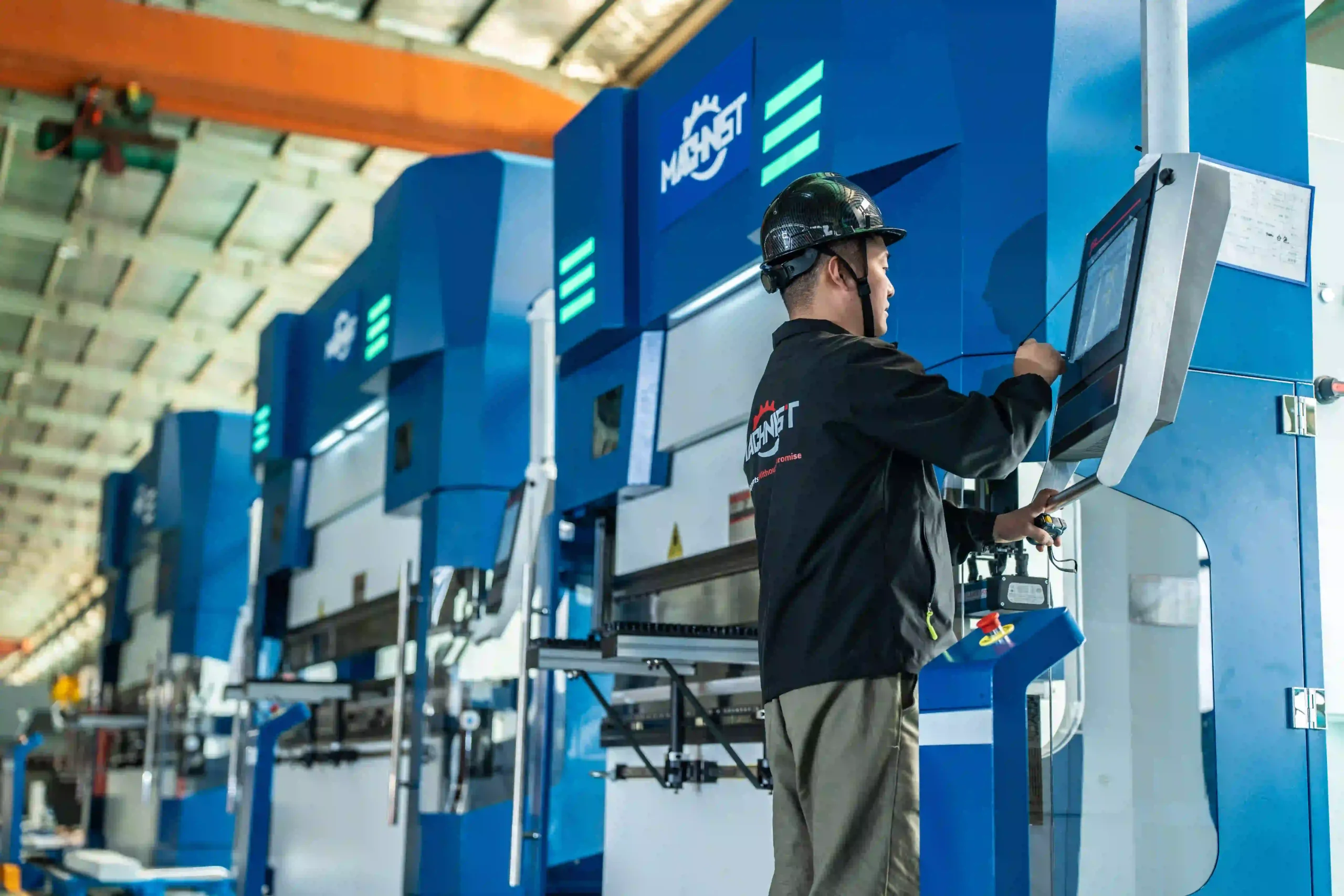

Hydraulic CNC Press Brake
You are here:
Proportional Valve Control
CNC press brake machines use a closed-loop control system with linear encoders and proportional valves.
This allows for precise synchronization of the dual cylinders across multiple axes.
I. Appearance Display
II. Standard Configuration

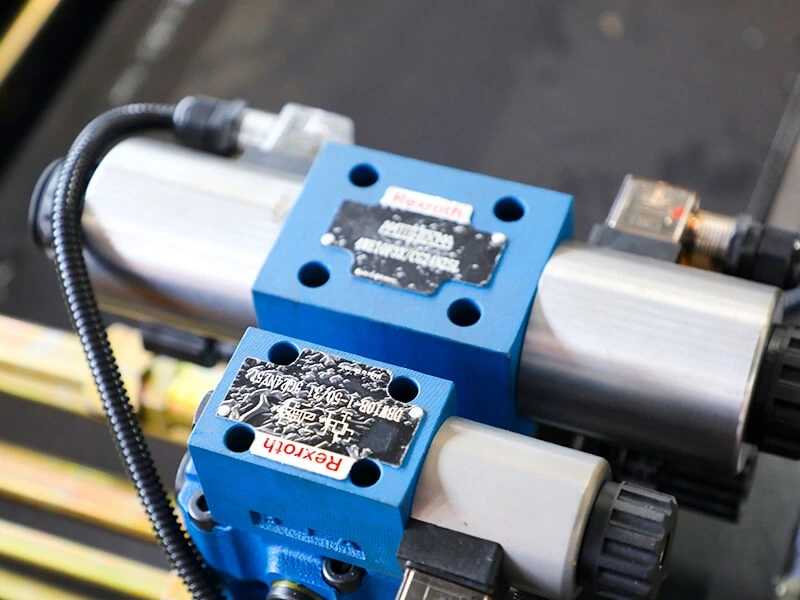

Hydraulic Valve
Uses Rexroth valves for better precision and stable performance.

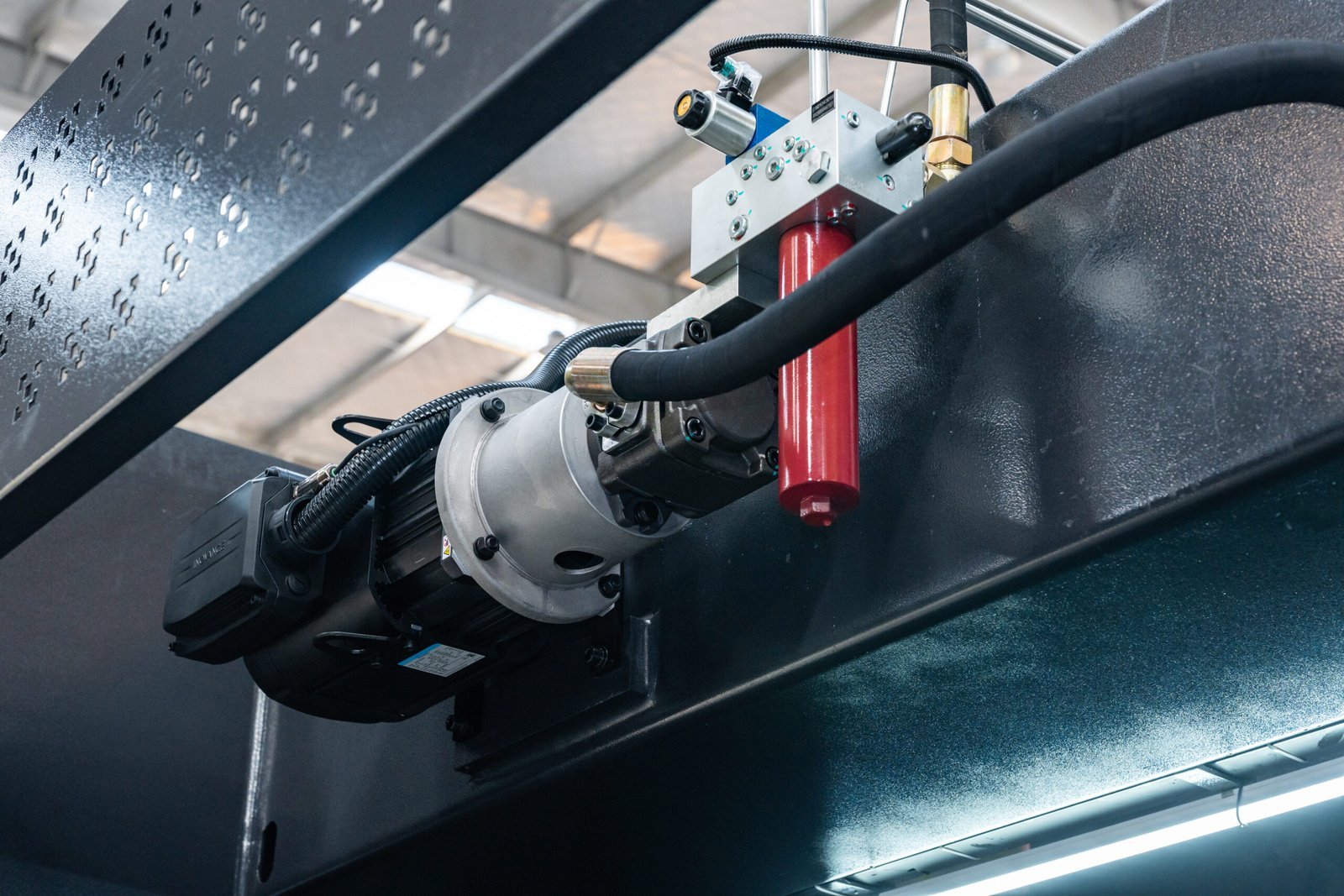

Main Servo Motor
The Main Servo Motor delivers precise power control for improved speed and efficiency.

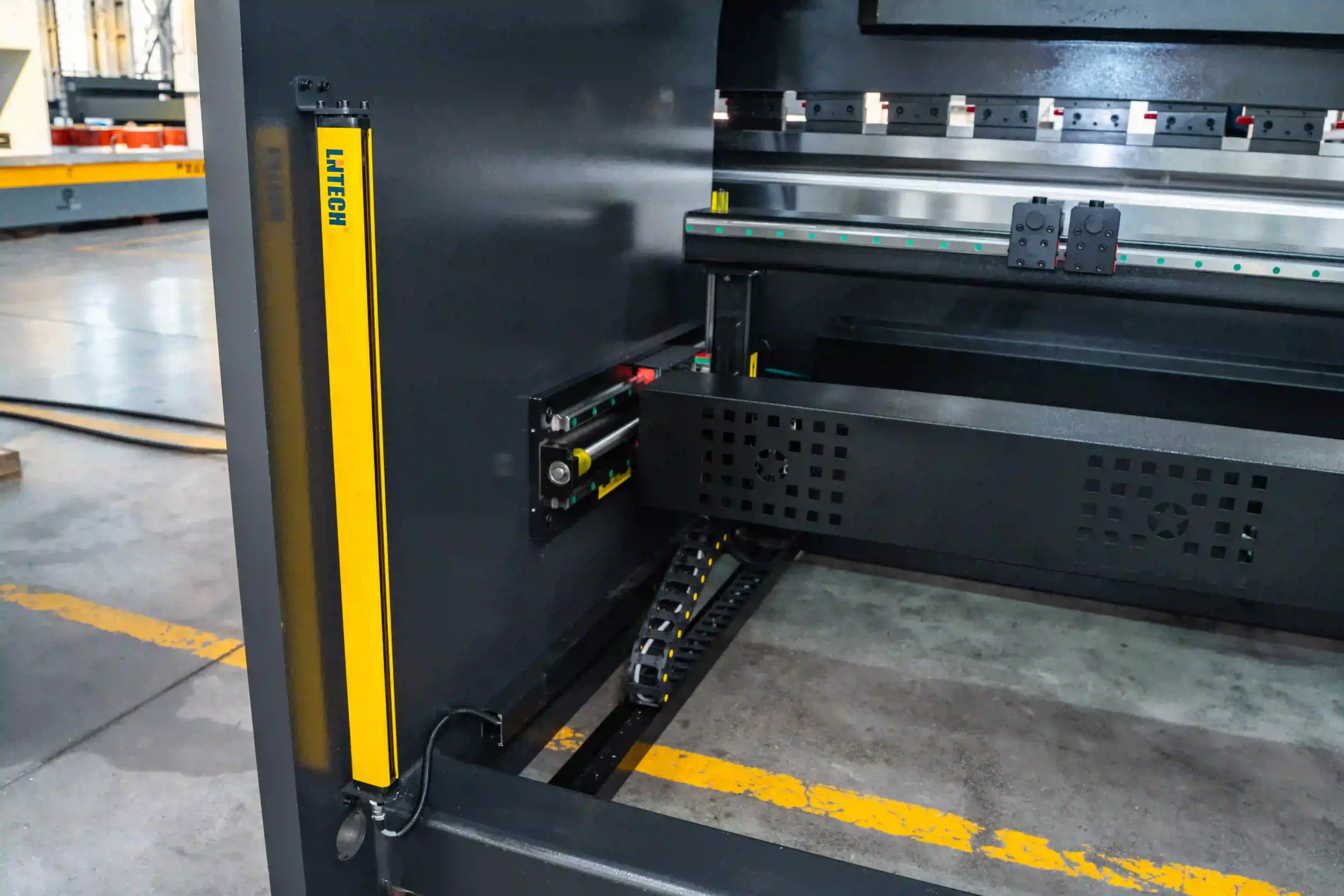

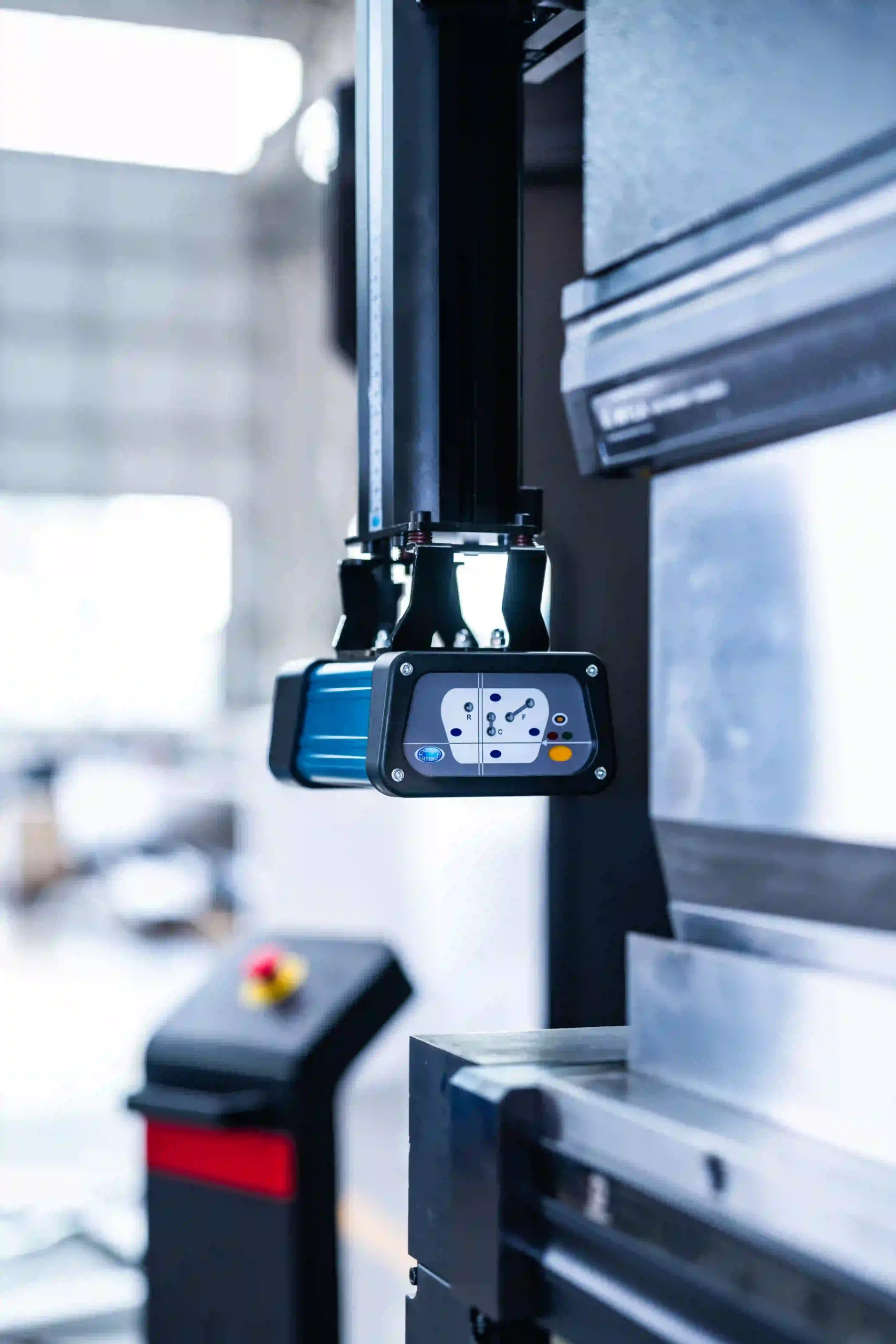

DSP Laser Safety
High-precision backgauge with adjustable stop fingers for accurate and repeatable bending.
Delem DA53t
The Delem DA53T is a precise CNC control system for cnc press brakes with touchscreen interface and real-time feedback.

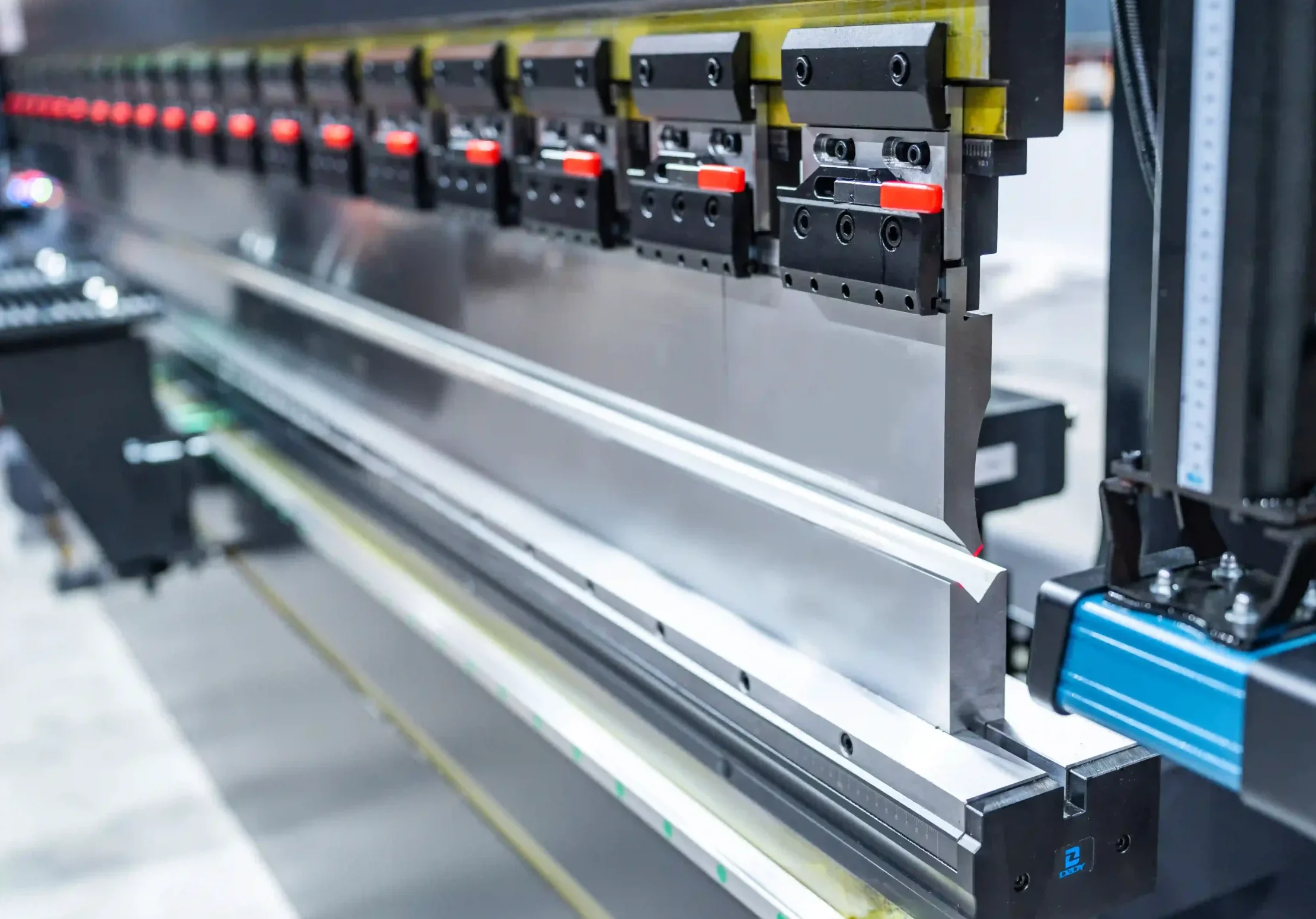

Punch & Die
Standard single V.
Wila/Amada press brake toolings available.
Wila/Amada press brake toolings available.

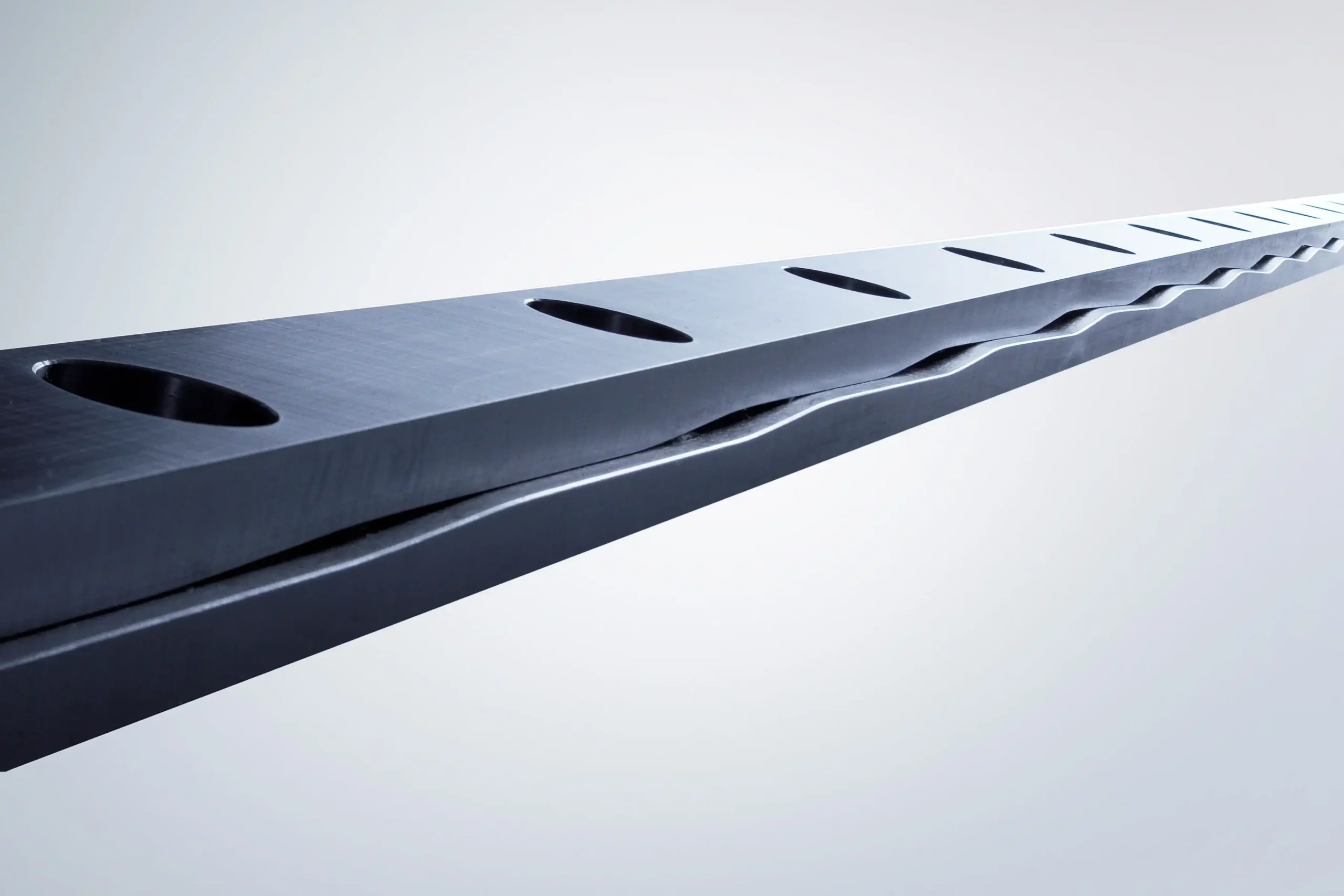

Wave-style Crowning Table
Wave-style integrated crowning table ensures uniform bending angles by automatically compensating for deflection.

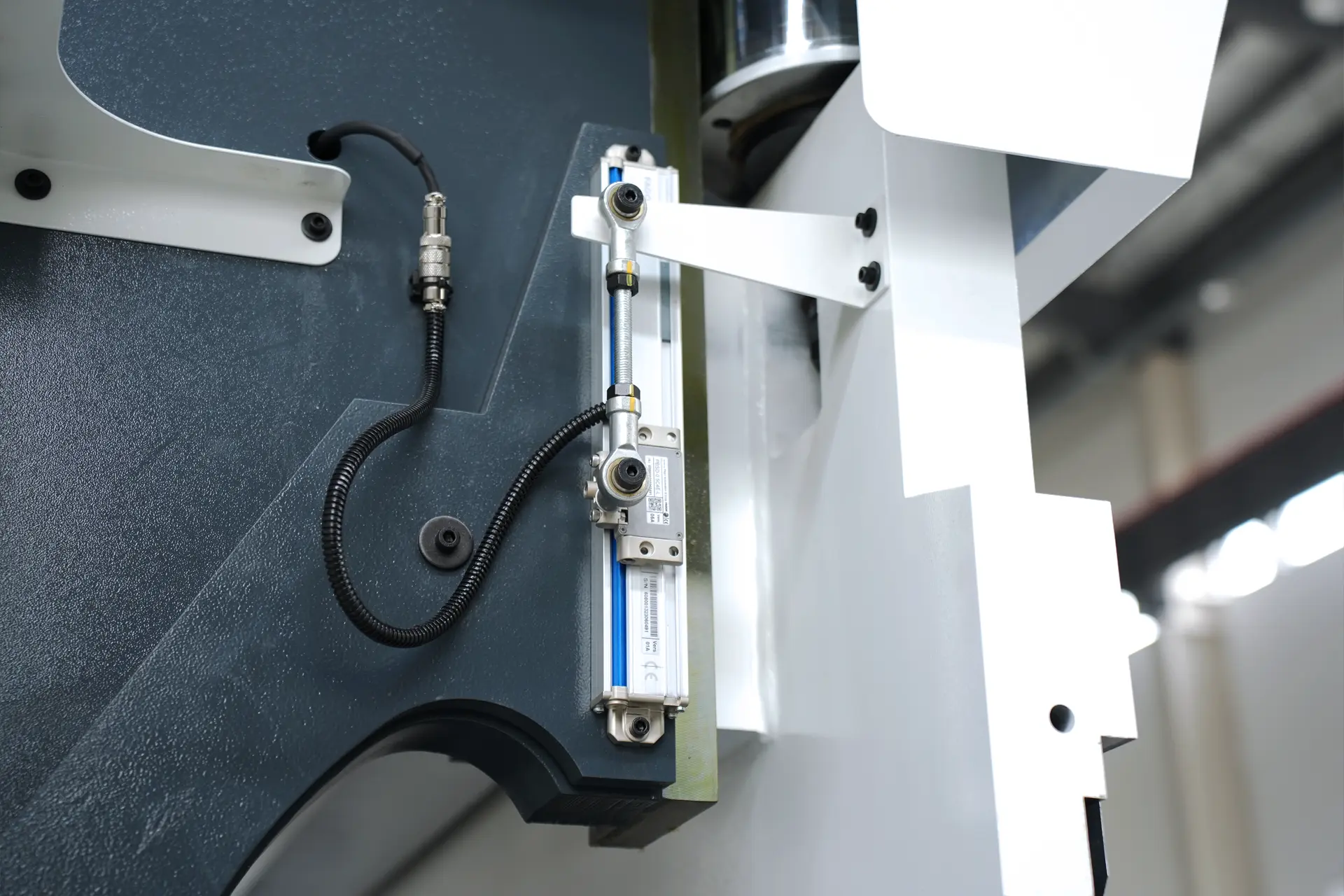

Fagor Optical Scale
The Fagor optical scale ensures precise back gauge positioning, improving bending accuracy and reducing errors with real-time feedback.
Crowning Table
The crowning table compensates for deflection during bending, ensuring consistent angles across the entire workpiece.
III. Key Advantages of CNC Press Brake
IV. Main Specification
| Model | Nominal Force | Bending Length | Stroke | Throat Depth | Open Height | Motor Power | Machine Dimensions |
|---|---|---|---|---|---|---|---|
| 40T1600 | 400kN | 1600mm | 120mm | 200mm | 380mm | 4kW | 2100×1400×2100mm |
| 63T2000 | 630kN | 2000mm | 120mm | 250mm | 400mm | 5.5kW | 2600×1500×2200mm |
| 80T2500 | 800kN | 2500mm | 140mm | 300mm | 450mm | 5.5kW | 3100×1600×2300mm |
| 100T2500 | 1000kN | 2500mm | 160mm | 320mm | 460mm | 7.5kW | 3100×1700×2350mm |
| 100T3200 | 1000kN | 3200mm | 160mm | 320mm | 460mm | 7.5kW | 3900×1700×2400mm |
| 130T3200 | 1300kN | 3200mm | 180mm | 320mm | 480mm | 11kW | 3900×1800×2450mm |
| 170T3200 | 1700kN | 3200mm | 200mm | 350mm | 520mm | 11kW | 3900×1900×2500mm |
| 200T3200 | 2000kN | 3200mm | 200mm | 400mm | 550mm | 15kW | 3900×2000×2600mm |
| 200T4000 | 2000kN | 4000mm | 200mm | 400mm | 550mm | 15kW | 4900×2100×2600mm |
| 300T4000 | 3000kN | 4000mm | 250mm | 400mm | 580mm | 18.5kW | 4900×2200×2700mm |
| 400T4000 | 4000kN | 4000mm | 250mm | 400mm | 580mm | 22kW | 4900×2300×2800mm |
| 600T6000 | 6000kN | 6000mm | 300mm | 500mm | 620mm | 30kW | 6900×2600×3200mm |
How to choose cnc press brake machine?
Our experts will tell you everything about CNC brake press.
