Hybrid CNC Press Brake
You are here:
Proportional Valve Control
“Energy-saving, fast-response CNC press brake powered by servo pump technology. Combining high bending accuracy with low energy consumption, perfect for modern sheet metal fabrication.”
Esa S875 Smarter Bending
- 3D Graphical Programming
- Offline Programming
- Smart Multi-Axis Control
DSP laser protect
- 360° full area laser protection
- Response time <10ms
- Auto stop when danger detected

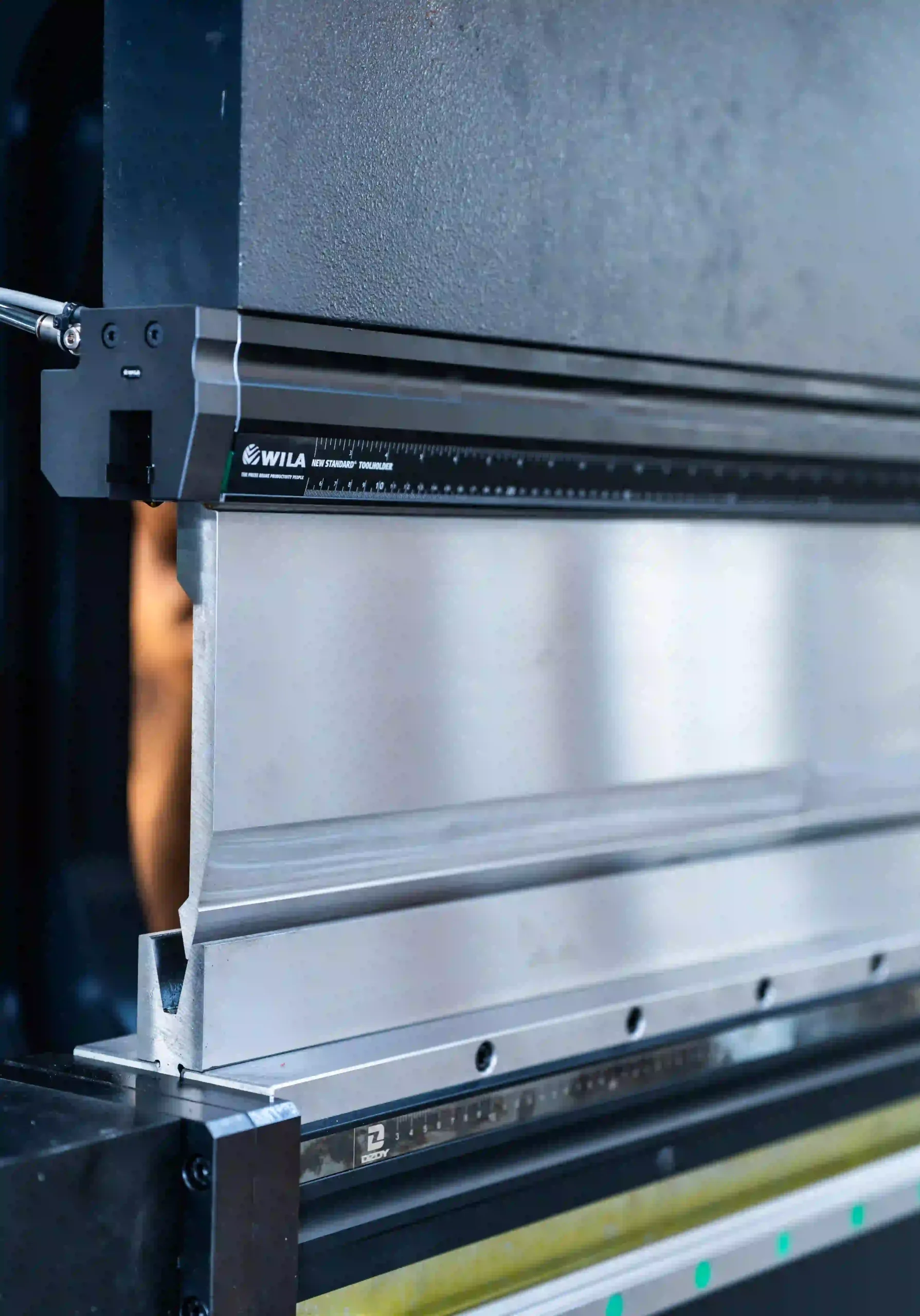

WILA NSCL-IHC/UPB
- Quick clamping for upper tools
- Compatible with European style tools

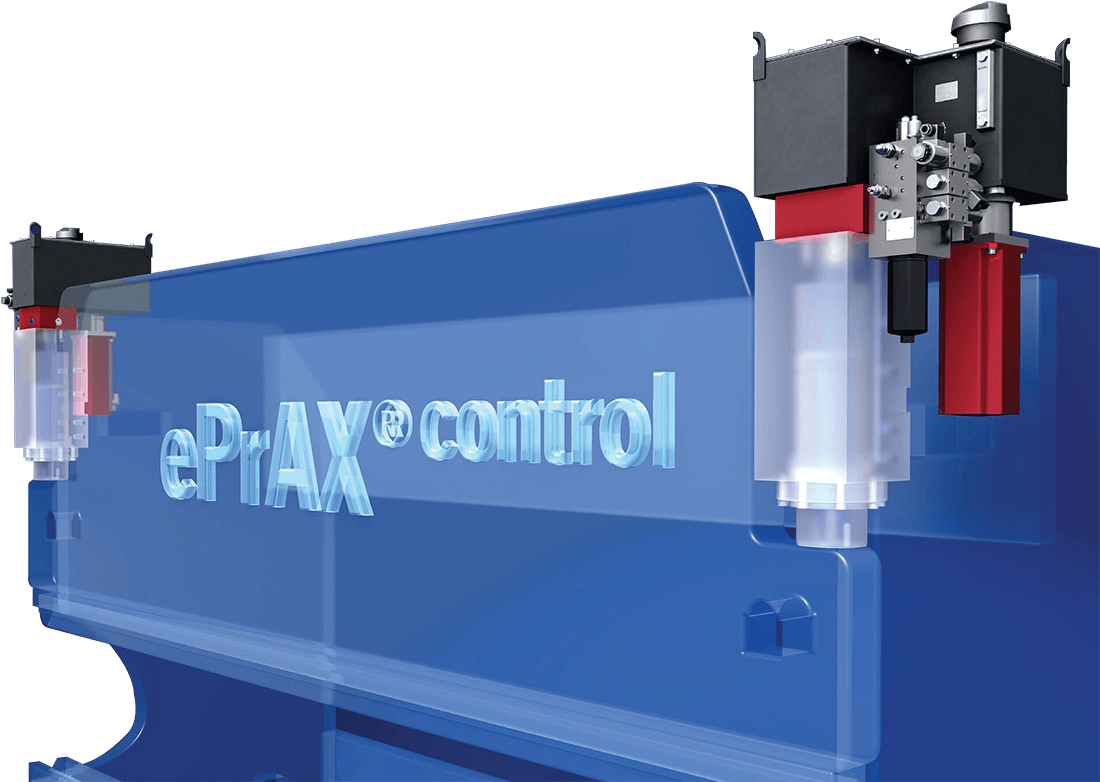

ePrAX® Hybrid Servo System
- Save energy up to 60%
- 30% faster response
- Lower noise & heat

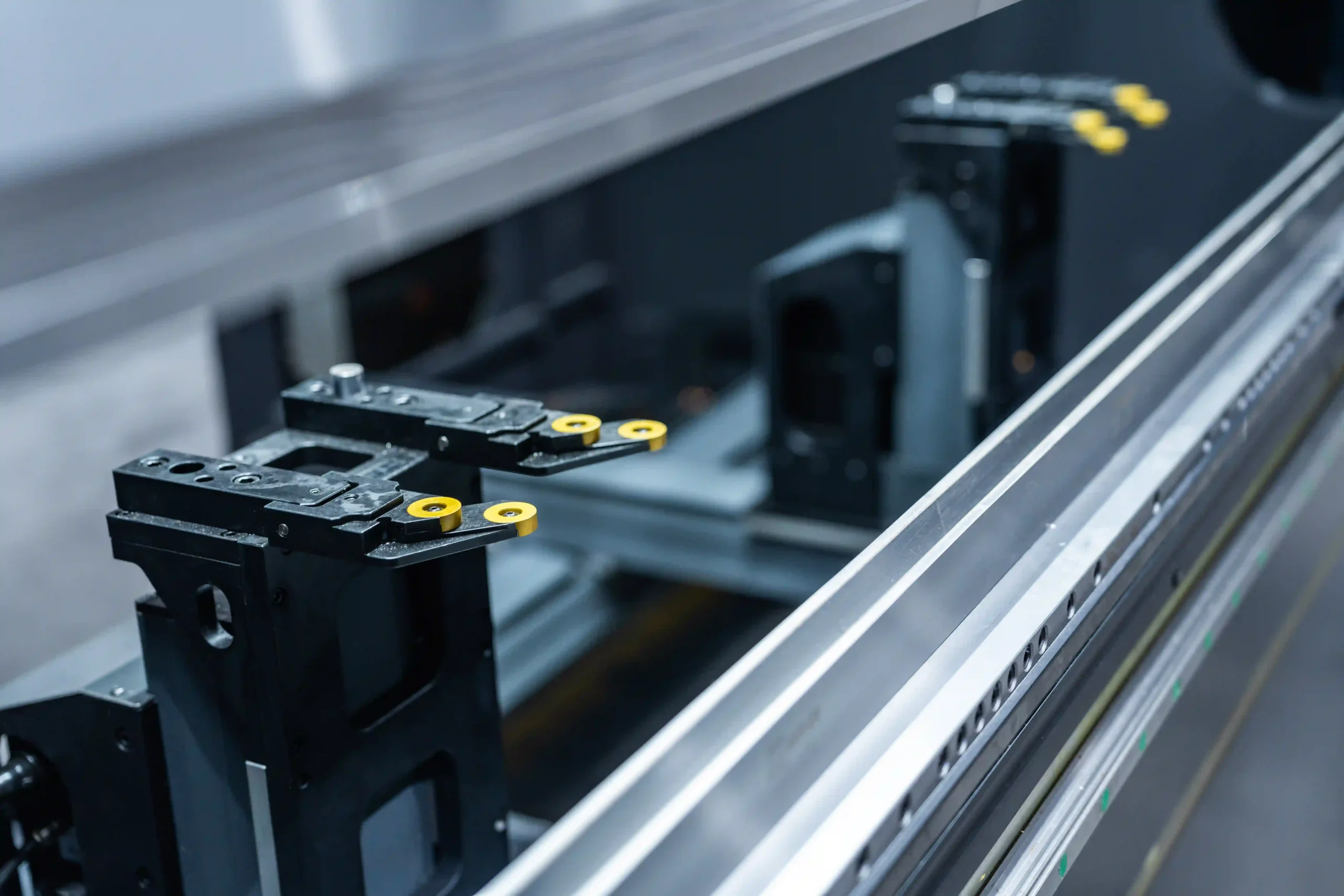

6 Axis Backgauge
- 6-axis backgauge for complex bending
- Accuracy ±0.02mm
- Auto adjust angle & step

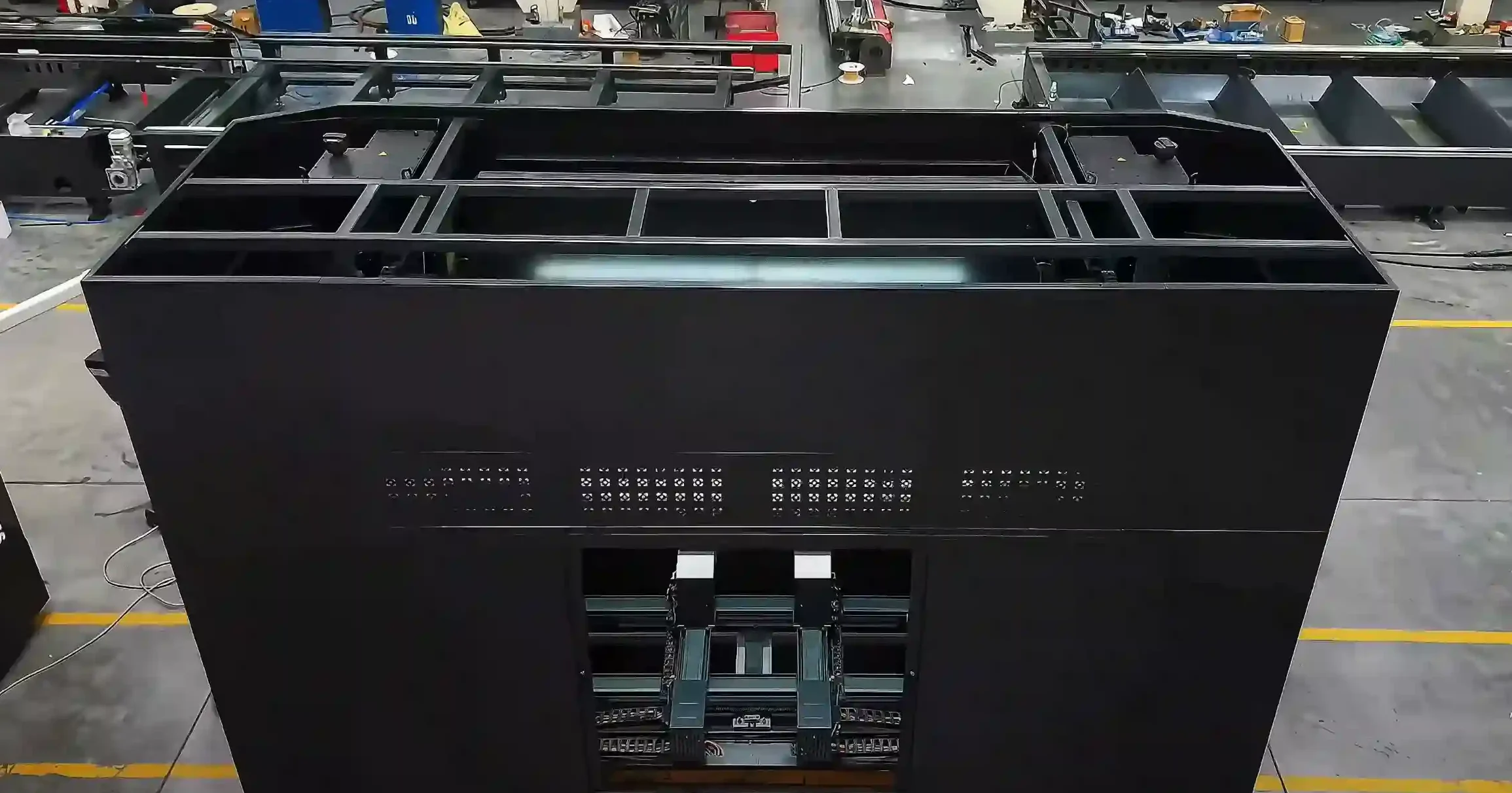

Full Cover Sheet Metal
- Modern full-cover design
- Safe & clean working area
- Easy maintenance access
Know more about hybrid press brake?
Our experts will tell you everything about hybrid brake press.
| Model | Nominal Force | Bending Length | Stroke | Throat Depth | Open Height | Motor Power | Machine Dimensions |
|---|---|---|---|---|---|---|---|
| 40T1600 | 400kN | 1600mm | 200mm | 300mm | 480mm | 4kW | 2100×1400×2100mm |
| 63T2000 | 630kN | 2000mm | 200mm | 300mm | 480mm | 5.5kW | 2600×1500×2200mm |
| 80T2500 | 800kN | 2500mm | 250mm | 350mm | 520mm | 5.5kW | 3100×1600×2300mm |
| 100T2500 | 1000kN | 2500mm | 300mm | 400mm | 520mm | 7.5kW | 3100×1700×2350mm |
| 100T3200 | 1000kN | 3200mm | 300mm | 400mm | 520mm | 7.5kW | 3900×1700×2400mm |
| 130T3200 | 1300kN | 3200mm | 300mm | 400mm | 580mm | 11kW | 3900×1800×2450mm |
| 170T3200 | 1700kN | 3200mm | 300mm | 400mm | 580mm | 11kW | 3900×1900×2500mm |
| 200T3200 | 2000kN | 3200mm | 350mm | 400mm | 580mm | 15kW | 3900×2000×2600mm |
| 200T4000 | 2000kN | 4000mm | 350mm | 400mm | 620mm | 15kW | 4900×2100×2600mm |
| 300T4000 | 3000kN | 4000mm | 350mm | 400mm | 620mm | 18.5kW | 4900×2200×2700mm |
| 400T4000 | 4000kN | 4000mm | 400mm | 500mm | 620mm | 22kW | 4900×2300×2800mm |
| 600T6000 | 6000kN | 6000mm | 400mm | 500mm | 620mm | 30kW | 6900×2600×3200mm |
