Full Electric CNC Press Brake
You are here:
Ultra : Full Electric Servo Drive Press Brake
All electric servo drive, ultra-quiet, maintenance-free, built for precision and energy savings.

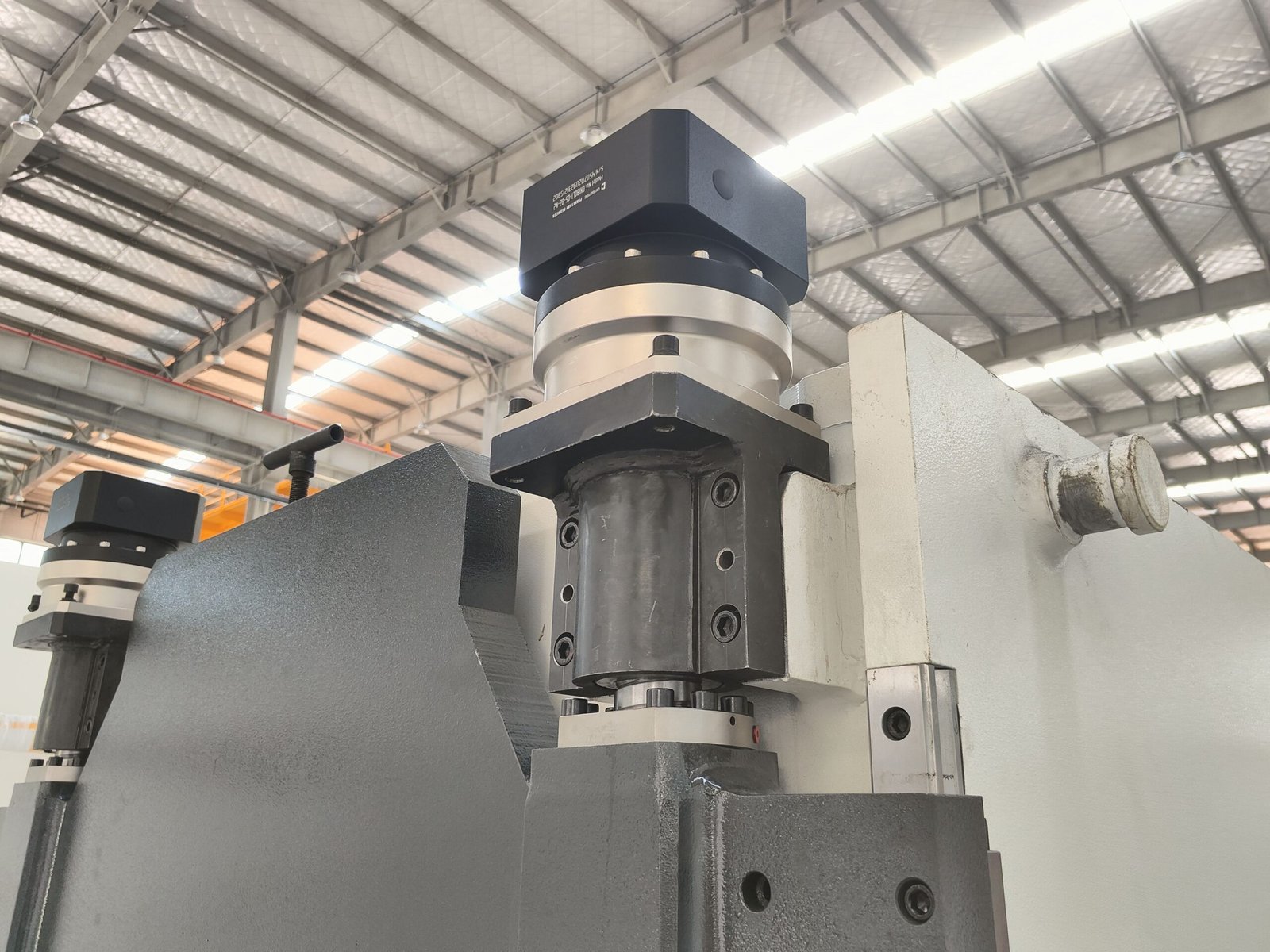

Nidec-Shimpo Reducer
Original Japan NIDEC SHIMPO brand, compact design, stable performance, widely used in CNC press brakes.
Main Motor
Inovance servo motor — fast, stable, energy-saving, and made for industrial precision.

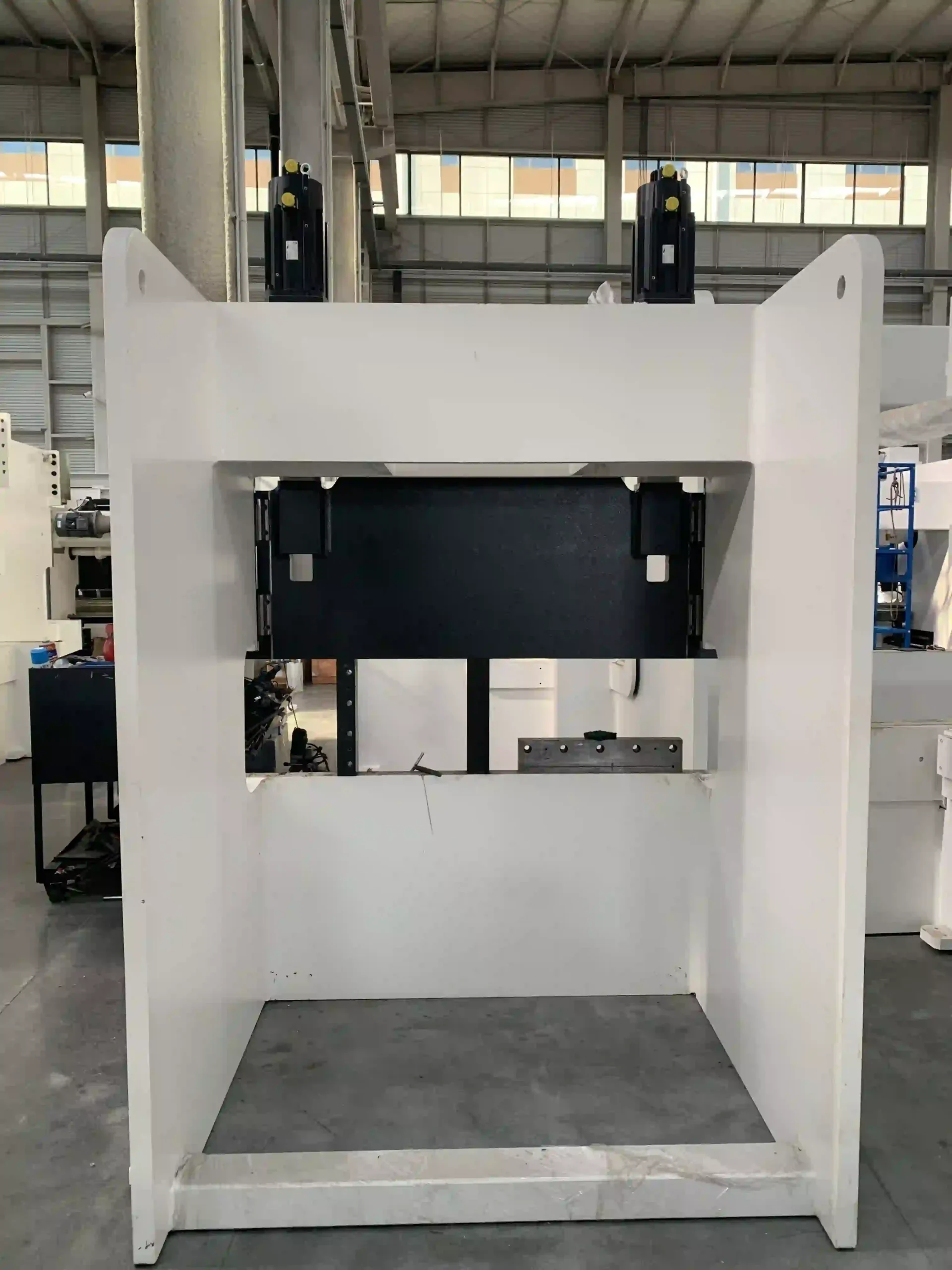

New Sheet Metal Design
Smarter structure, stronger performance

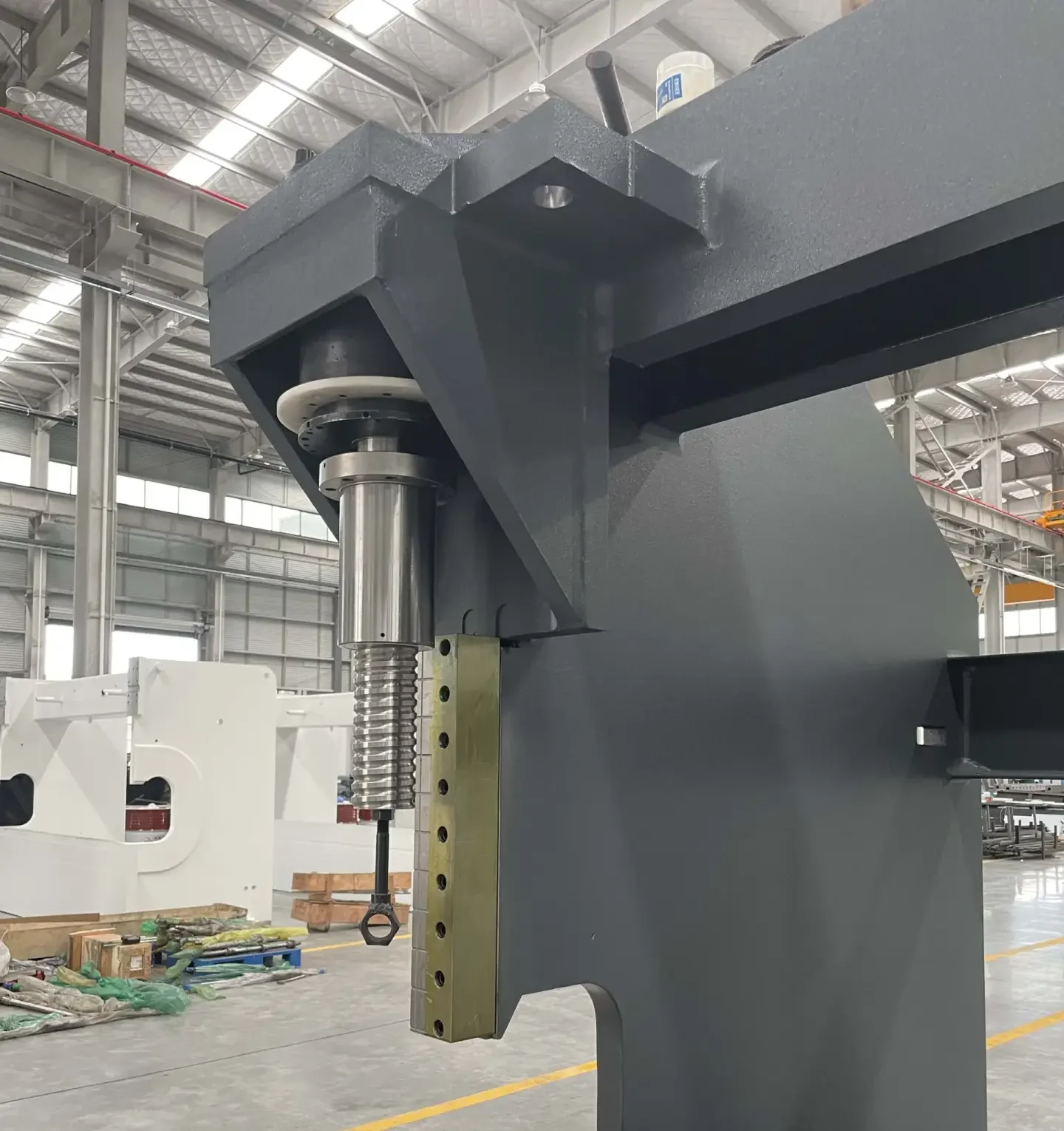

LINES Ball Screw
Japan LINES Ball Screw — Stable transmission, long service life, perfect for CNC bending applications.

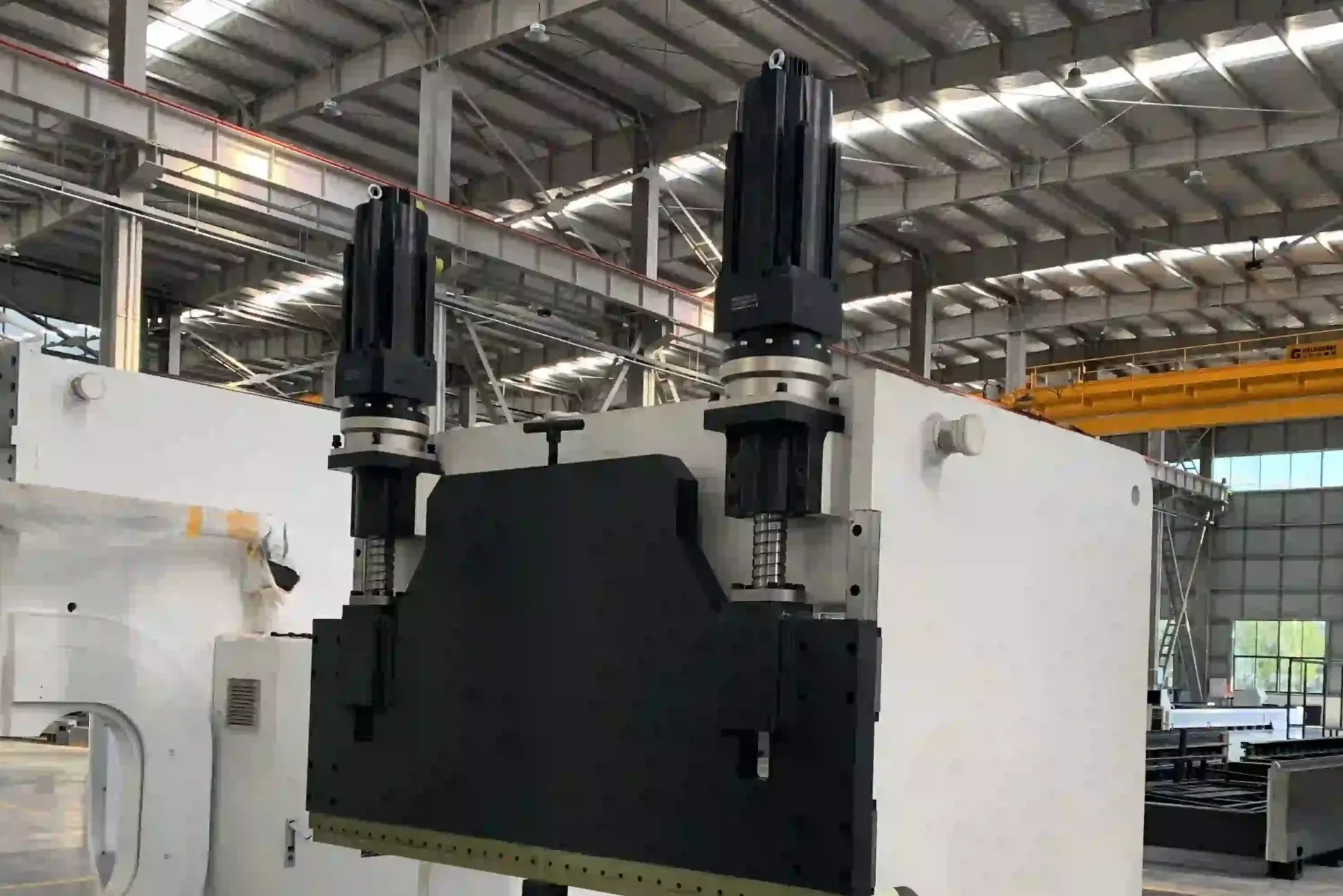

Direct Drive Structure
Servo motor directly drives the ball screw for faster response, higher accuracy, and lower energy loss.
Multiple CNC Controller Options
DELEM, ESA, CYBELEC, SYNTEC available for different needs and budgets.
- 3T200
- 6T400
- 12T600
- 20T800
- 30T1250
- 40T1600
- 50T2000
- 80T2500
- 100T3200

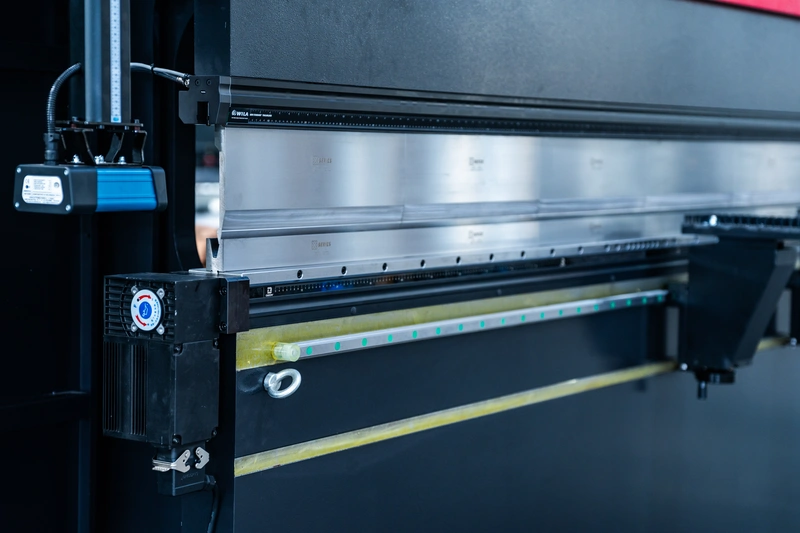

Euro 2V / Wila Single V
The Fast Center 2V Rail Die features a double-V concentric mold designed for processing thin plates. It is used in industries such as automotive, aerospace, and electronics manufacturing.
Press Brake Parts
Sheet Metal Solution
Robotic CNC Press Brake Cell for…
An automated press brake solution with an Estun 7-axis robot for high-efficiency precision sheet metal bending.
170T/3200 CNC Hydraulic Press Brake for…
This 170T/3200 CNC hydraulic press brake was supplied to a metal fabrication workshop in Syria in 2026. The machine was…
50T/1600 CNC Hydraulic Press Brake Sold…
This 50T/1600 CNC hydraulic press brake was sold during an exhibition in Jeddah, Saudi Arabia in 2022. The machine was…
Know more about hybrid press brake?
Our experts will tell you everything about hybrid brake press.
| Model | Nominal Force | Bending Length | Stroke | Throat Depth | Open Height | Motor Power | Machine Dimensions |
|---|---|---|---|---|---|---|---|
| 40T1600 | 400kN | 1600mm | 200mm | 300mm | 480mm | 4kW | 2100×1400×2100mm |
| 63T2000 | 630kN | 2000mm | 200mm | 300mm | 480mm | 5.5kW | 2600×1500×2200mm |
| 80T2500 | 800kN | 2500mm | 250mm | 350mm | 520mm | 5.5kW | 3100×1600×2300mm |
| 100T2500 | 1000kN | 2500mm | 300mm | 400mm | 520mm | 7.5kW | 3100×1700×2350mm |
| 100T3200 | 1000kN | 3200mm | 300mm | 400mm | 520mm | 7.5kW | 3900×1700×2400mm |
| 130T3200 | 1300kN | 3200mm | 300mm | 400mm | 580mm | 11kW | 3900×1800×2450mm |
| 170T3200 | 1700kN | 3200mm | 300mm | 400mm | 580mm | 11kW | 3900×1900×2500mm |
| 200T3200 | 2000kN | 3200mm | 350mm | 400mm | 580mm | 15kW | 3900×2000×2600mm |
| 200T4000 | 2000kN | 4000mm | 350mm | 400mm | 620mm | 15kW | 4900×2100×2600mm |
| 300T4000 | 3000kN | 4000mm | 350mm | 400mm | 620mm | 18.5kW | 4900×2200×2700mm |
| 400T4000 | 4000kN | 4000mm | 400mm | 500mm | 620mm | 22kW | 4900×2300×2800mm |
| 600T6000 | 6000kN | 6000mm | 400mm | 500mm | 620mm | 30kW | 6900×2600×3200mm |
