NC Press Brake
You are here:
Torsion Bar Bend
Estun E21 NC Controller
- Simple Structure: The torsion bar ensures synchronization, making the system stable and easy to maintain.
- Lower Cost: It is cost-effective, making it ideal for small to medium-sized factories.
- Easy Operation: Suitable for basic bending tasks and easy for operators to learn.
- Power-off protection
- Unilateral and bidirectional positioning to eliminate spindle clearance
- Automatic reference searching
- Fast position indexing
- Intelligent positioning control
- Retract functions
- One-key parameter backup and restore
- Storage for 40 programs, each with 25 steps

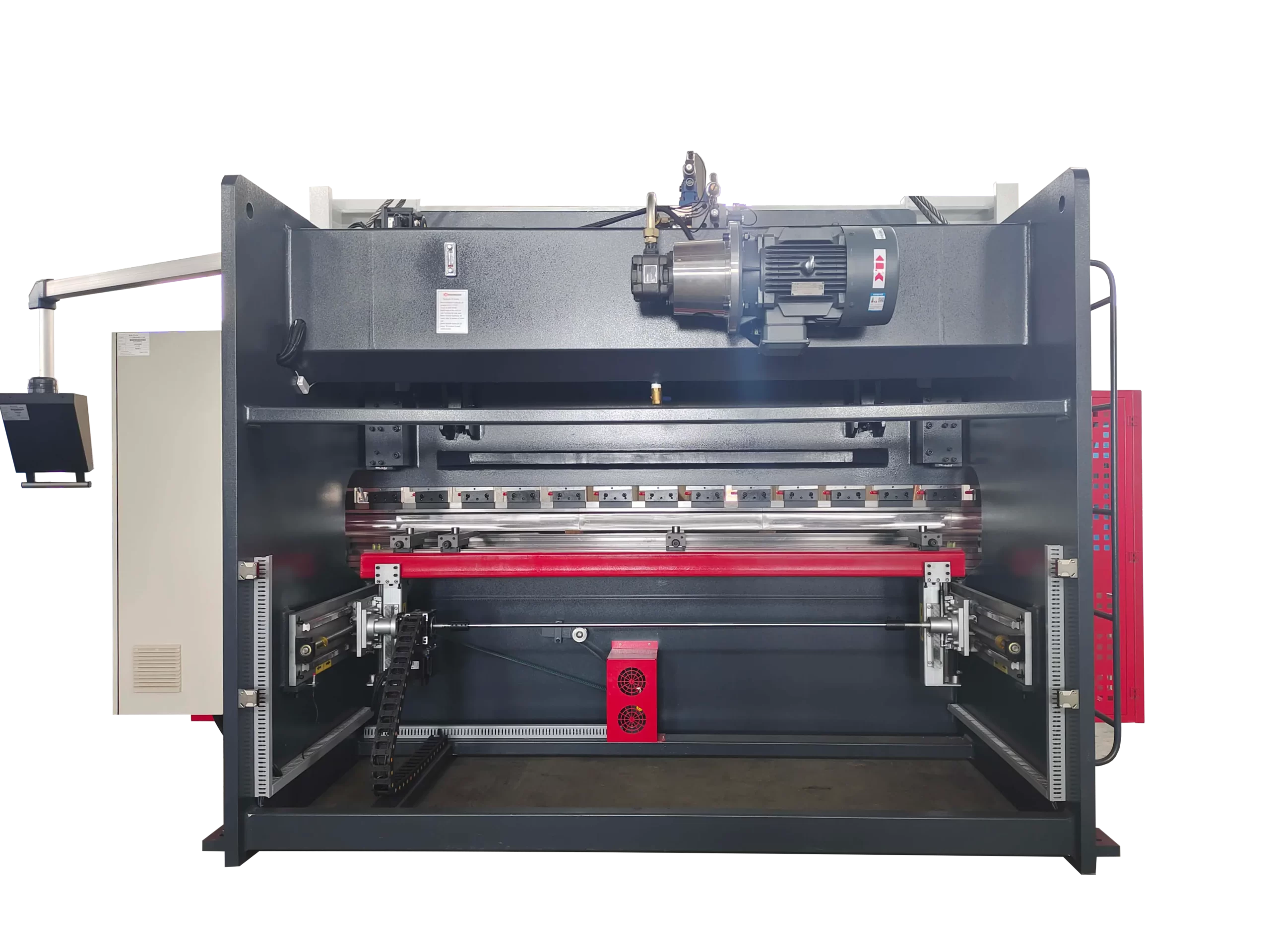

CNC Torsion Bar Bend

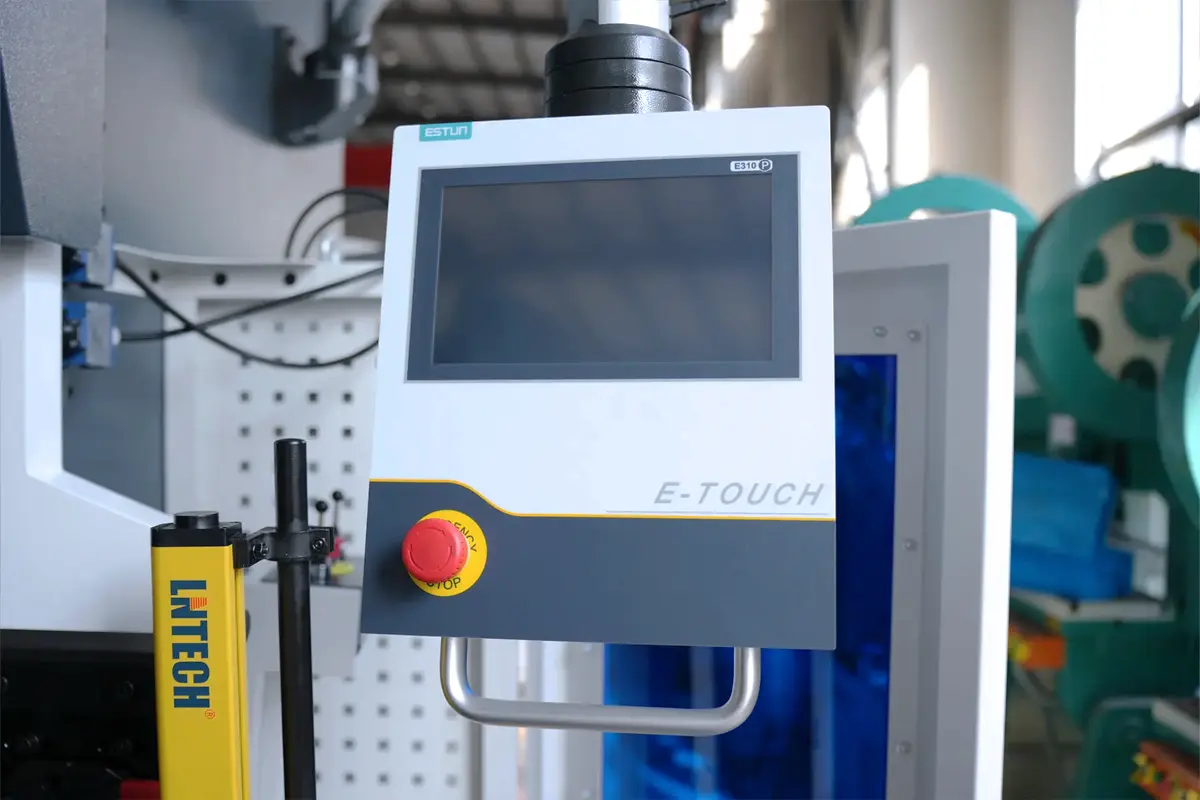

Estun E310p CNC Controller
– Servo motor controls X and Y axes for fast, precise movement.
– Angle programming with automatic calculation for quicker adjustments.
– Supports auto crowning for automatic compensation.
- Power-off protection
- High precision bending
- Servo motor control
- Angle programming
- Punch & die programming
- grating ruler limit
- adjust Y1Y2 balance quickly
- Storage for 200 programs, each with 50 steps
Standard Configuration
CNC E310P Estun controller
- High precision bending
- User-friendly interface
- Easy programming
- Real-time monitoring
- Multiple axis control
- Auto compensation system
- Memory storage for programs
- Cost-effective solution

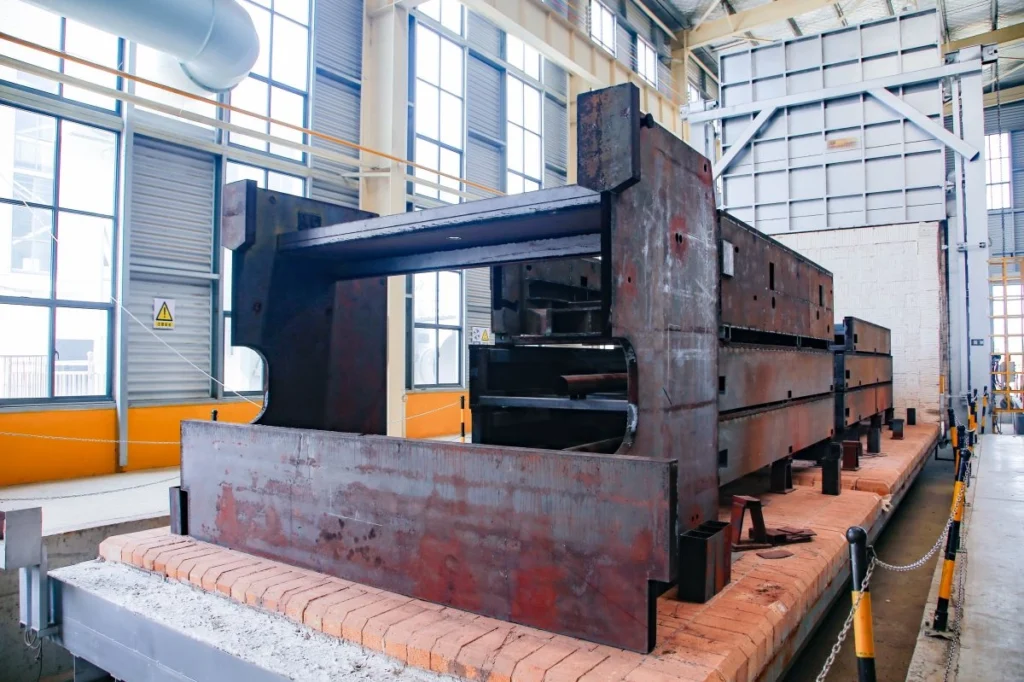

Machine Bed & Machining
- Bed precision through careful machining.
- Full machine annealing prevents deformation and ensures accuracy.

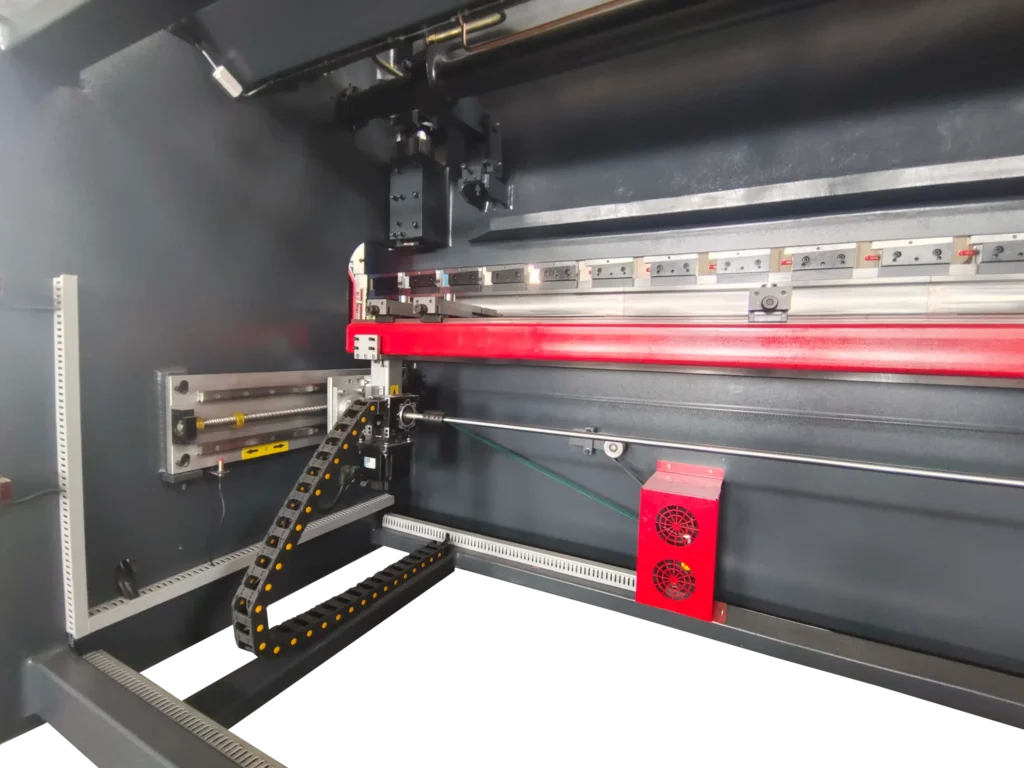

Backgauge 2axis X R, Servo Driven
- The CNC Hydraulic press brake features automated control of the X-axis and R-axis using servo motors.
- The R-axis, governing upward and downward movement, is controlled for precision adjustments.

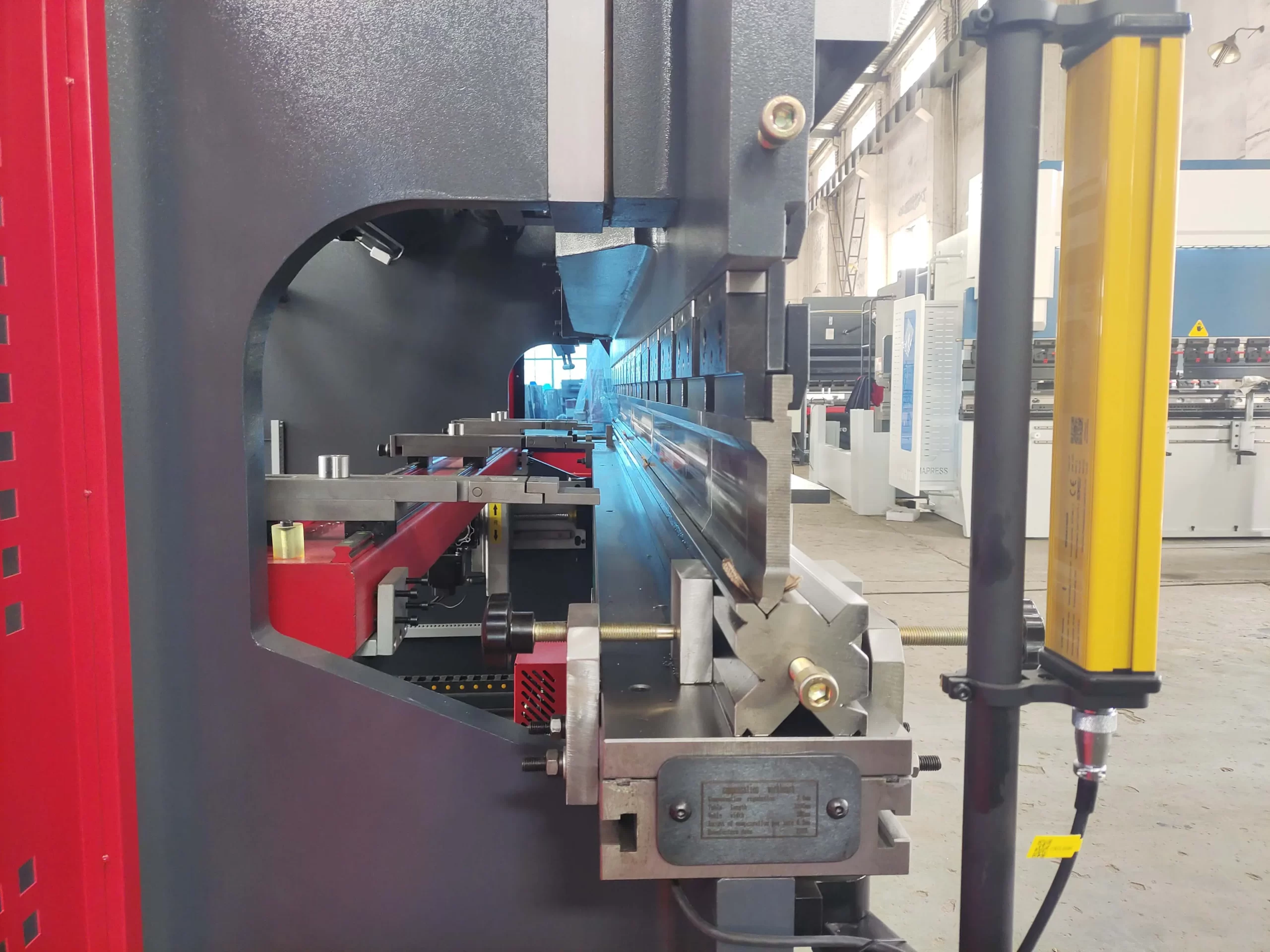

Multiple V Die
Standard configuration includes a multi-V bottom die, offering versatility for various shapes and sizes, improving efficiency and adaptability.

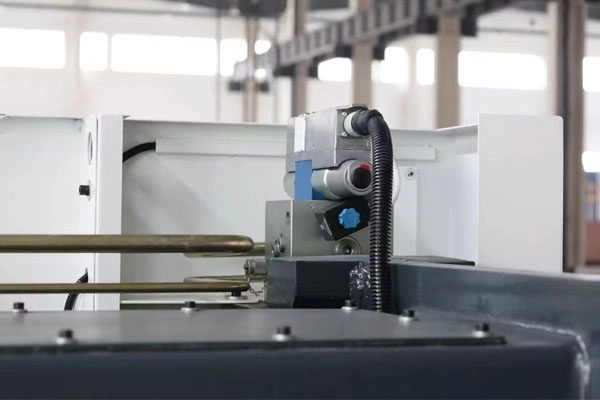

Bosch Rexroth
Hydraulic System
– Advanced tech for precise fluid control
– Durable, low-maintenance design
– Industry-leading expertise and standards

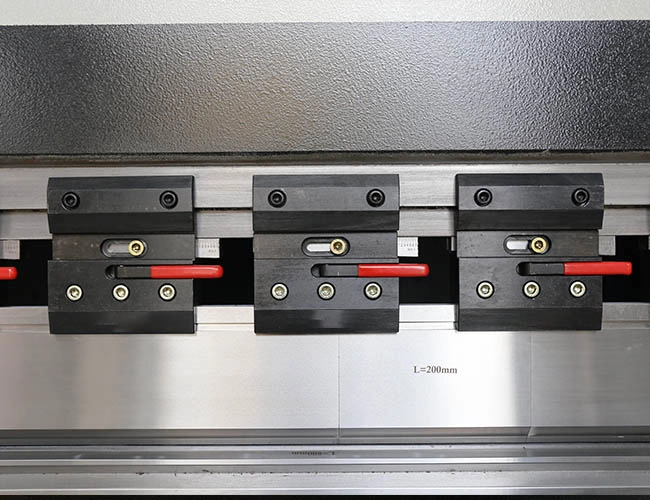

Segmented Punch & Quick Clamp
– Precision bending for accurate, complex shapes
– Customizable segments for versatile applications
– Quick changeover minimizes downtime
– Faster setup boosts productivity

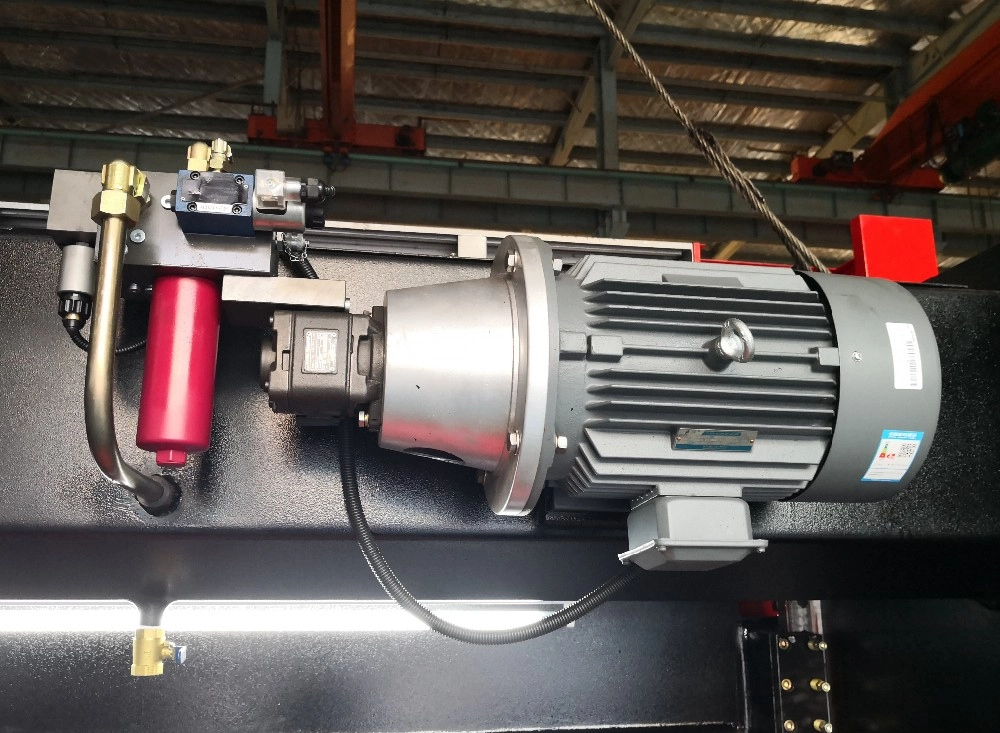

Siemens main motor
– Reliable and durable Siemens motors
– Precise and consistent bending performance
– Seamless CNC integration for efficient operations
Optional Configuration

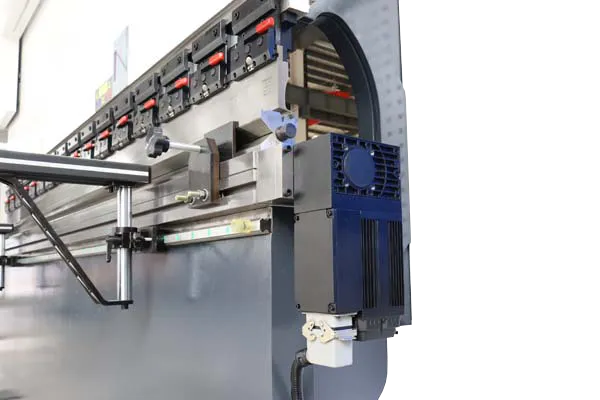

Worktable Manual-Crownig
– The Manual-Crowning feature ensures uniform bending across the workpiece.
– Precise adjustments enhance bending accuracy and reduce errors.
– Crown settings can be adapted for flexibility with various materials and thicknesses.

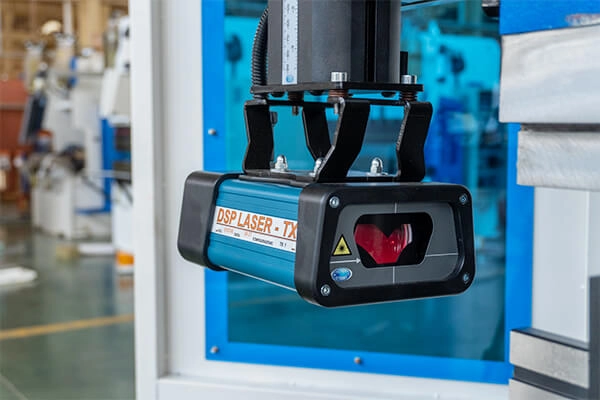

DSP laser protect device
– DSP laser protection enhances safety by quickly stopping the hydraulic press brake when obstacles are detected in the laser path.
– Accurate laser beam positioning ensures the protected area aligns with the work zone, minimizing accident and equipment damage risks.
Press Brake Parts
Sheet Metal Solution
Robotic CNC Press Brake Cell for…
An automated press brake solution with an Estun 7-axis robot for high-efficiency precision sheet metal bending.
170T/3200 CNC Hydraulic Press Brake for…
This 170T/3200 CNC hydraulic press brake was supplied to a metal fabrication workshop in Syria in 2026. The machine was…
50T/1600 CNC Hydraulic Press Brake Sold…
This 50T/1600 CNC hydraulic press brake was sold during an exhibition in Jeddah, Saudi Arabia in 2022. The machine was…
Know more about hybrid press brake?
Our experts will tell you everything about hybrid brake press.
| Model | Nominal Force | Bending Length | Stroke | Throat Depth | Open Height | Motor Power | Machine Dimensions |
|---|---|---|---|---|---|---|---|
| 40T1600 | 400kN | 1600mm | 200mm | 300mm | 480mm | 4kW | 2100×1400×2100mm |
| 63T2000 | 630kN | 2000mm | 200mm | 300mm | 480mm | 5.5kW | 2600×1500×2200mm |
| 80T2500 | 800kN | 2500mm | 250mm | 350mm | 520mm | 5.5kW | 3100×1600×2300mm |
| 100T2500 | 1000kN | 2500mm | 300mm | 400mm | 520mm | 7.5kW | 3100×1700×2350mm |
| 100T3200 | 1000kN | 3200mm | 300mm | 400mm | 520mm | 7.5kW | 3900×1700×2400mm |
| 130T3200 | 1300kN | 3200mm | 300mm | 400mm | 580mm | 11kW | 3900×1800×2450mm |
| 170T3200 | 1700kN | 3200mm | 300mm | 400mm | 580mm | 11kW | 3900×1900×2500mm |
| 200T3200 | 2000kN | 3200mm | 350mm | 400mm | 580mm | 15kW | 3900×2000×2600mm |
| 200T4000 | 2000kN | 4000mm | 350mm | 400mm | 620mm | 15kW | 4900×2100×2600mm |
| 300T4000 | 3000kN | 4000mm | 350mm | 400mm | 620mm | 18.5kW | 4900×2200×2700mm |
| 400T4000 | 4000kN | 4000mm | 400mm | 500mm | 620mm | 22kW | 4900×2300×2800mm |
| 600T6000 | 6000kN | 6000mm | 400mm | 500mm | 620mm | 30kW | 6900×2600×3200mm |
