CNC Back Gauge Options for Press Brake
MACHNIST CNC press brakes can be equipped with different back gauge structures according to the bending accuracy, production efficiency, and automation level required by the customer. From standard 4+1 axis to advanced 8+1 axis, each configuration is designed for stable positioning, repeatable bending, and easier operation.
Configuration 1

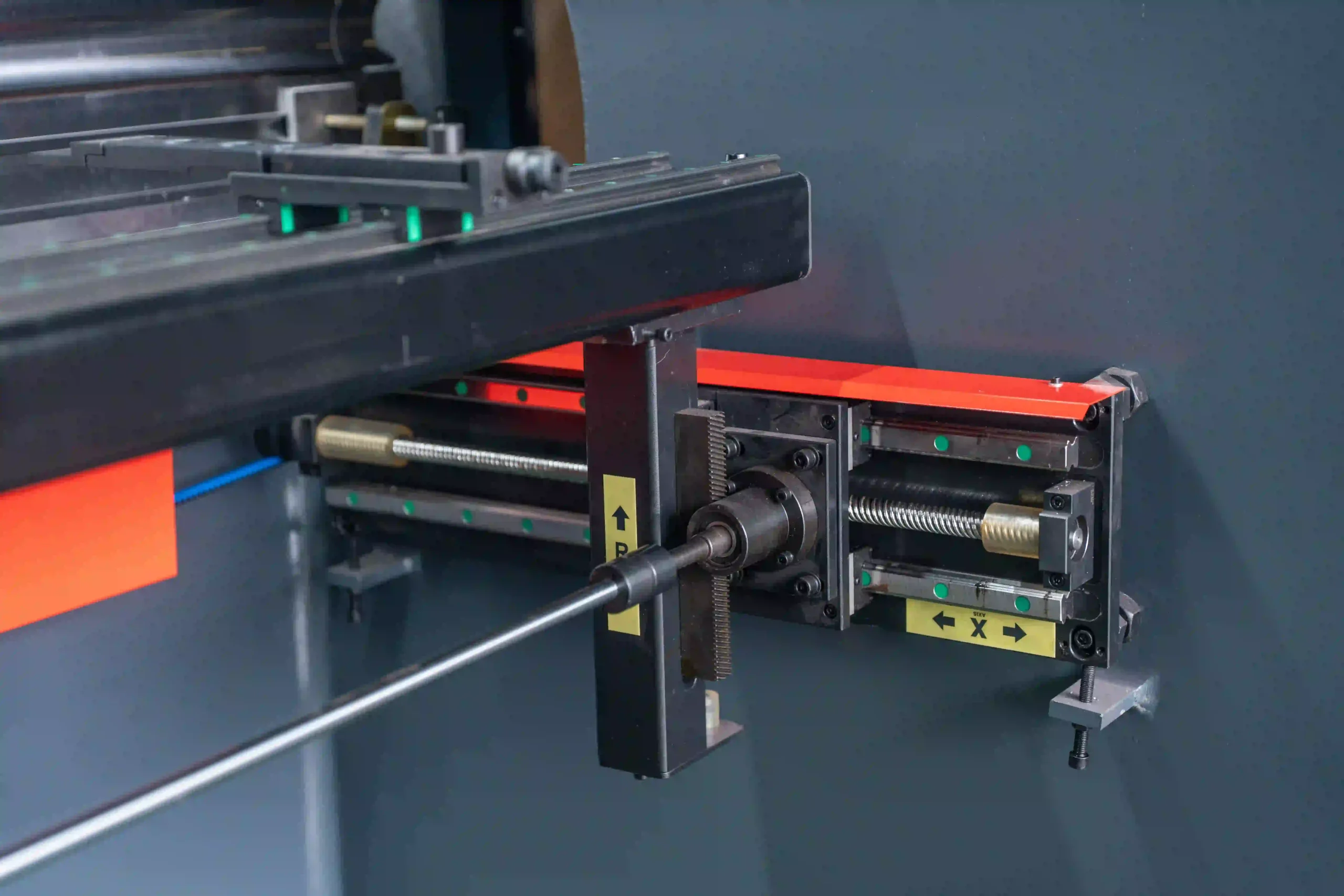

DA53TX · 4+1 Axis Back Gauge
A stable and commonly used CNC back gauge solution for standard bending production. It is suitable for customers who need reliable positioning with simple and efficient 2D programming.
- Controller: Delem DA53TX
- Programming: 2D graphical programming
- Axis: X, R, Y1, Y2 + V
- V Axis: Motorized mechanical crowning
- Application: Standard sheet metal bending
Configuration 2

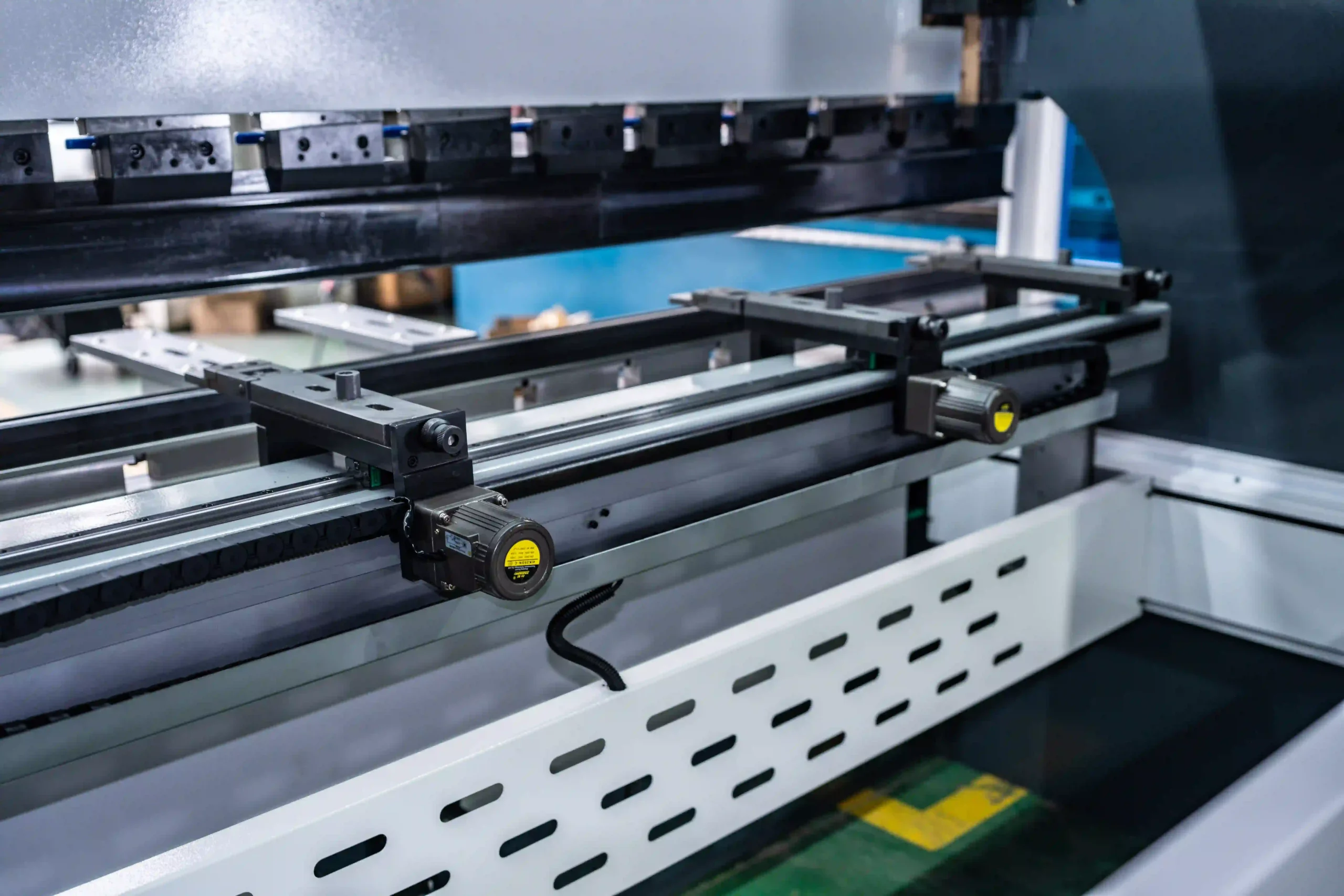

DA58TX · 6+1 Axis Back Gauge
Compared with the 4+1 axis solution, this configuration adds Z1 and Z2 automatic finger positioning, making it more efficient for different bending widths and repeated production.
- Controller: Delem DA58TX
- Programming: 2D graphical programming
- Axis: X, R, Y1, Y2, Z1, Z2 + V
- Function: Automatic bending sequence calculation
- Application: Higher-efficiency batch production
Configuration 3
DA66S · 6+1 Axis Back Gauge
A higher-level Delem CNC solution with 2D programming and 3D simulation. It helps operators check the bending process before production and reduce programming mistakes.
- Controller: Delem DA66S
- Programming: 2D graphical programming
- Simulation: 3D machine simulation
- Axis: X, R, Y1, Y2, Z1, Z2 + V
- Function: Automatic bending sequence calculation
Configuration 4

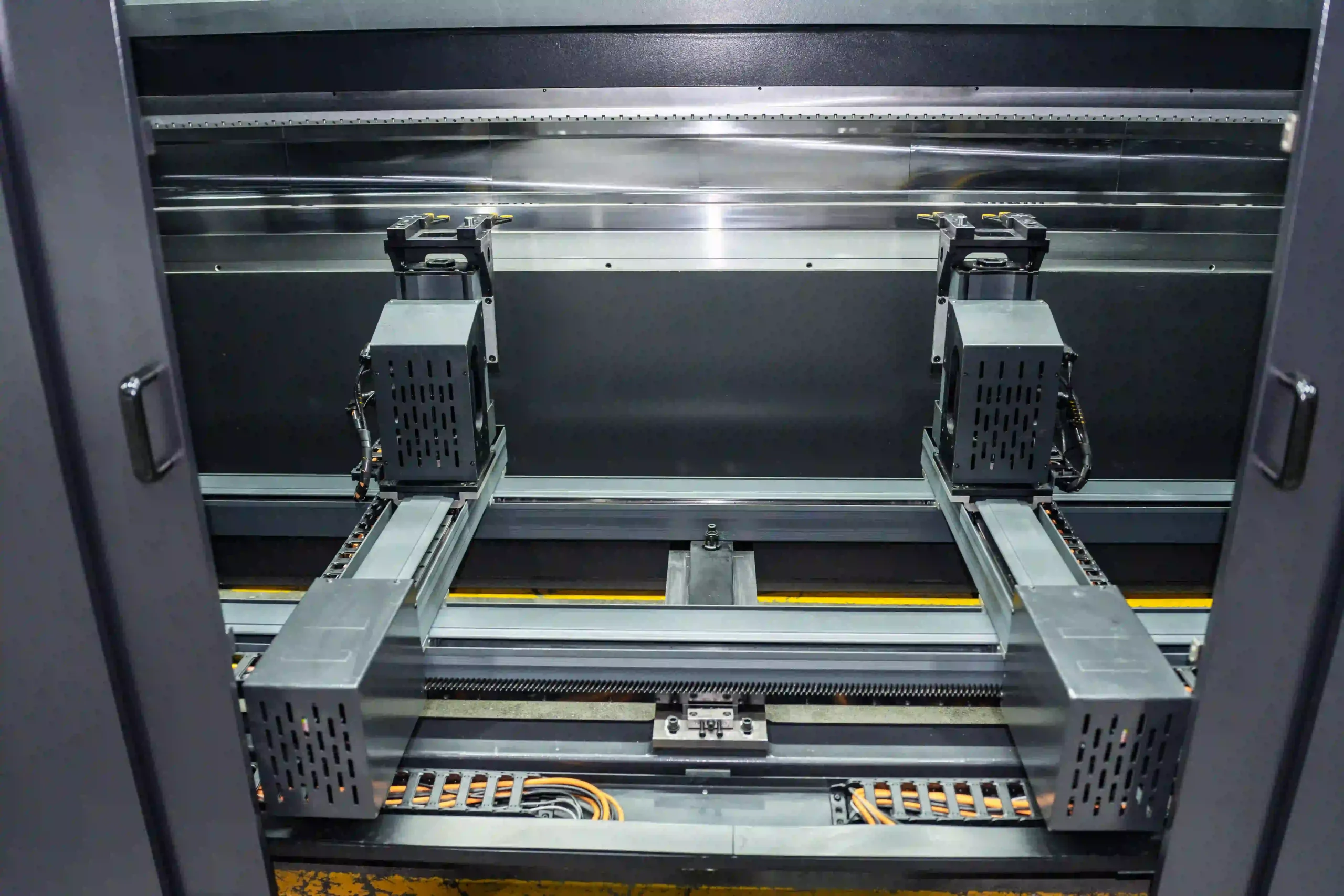

DA69S · 8+1 Axis Back Gauge
The advanced solution for complex bending parts. With 3D programming and 3D file import, it is suitable for customers who need professional offline programming and high automation.
- Controller: Delem DA69S
- Programming: 3D programming
- File Import: 3D file import supported
- Axis: X1, X2, Y1, Y2, Z1, Z2, R1, R2 + V
- Application: Complex parts and high-end CNC bending

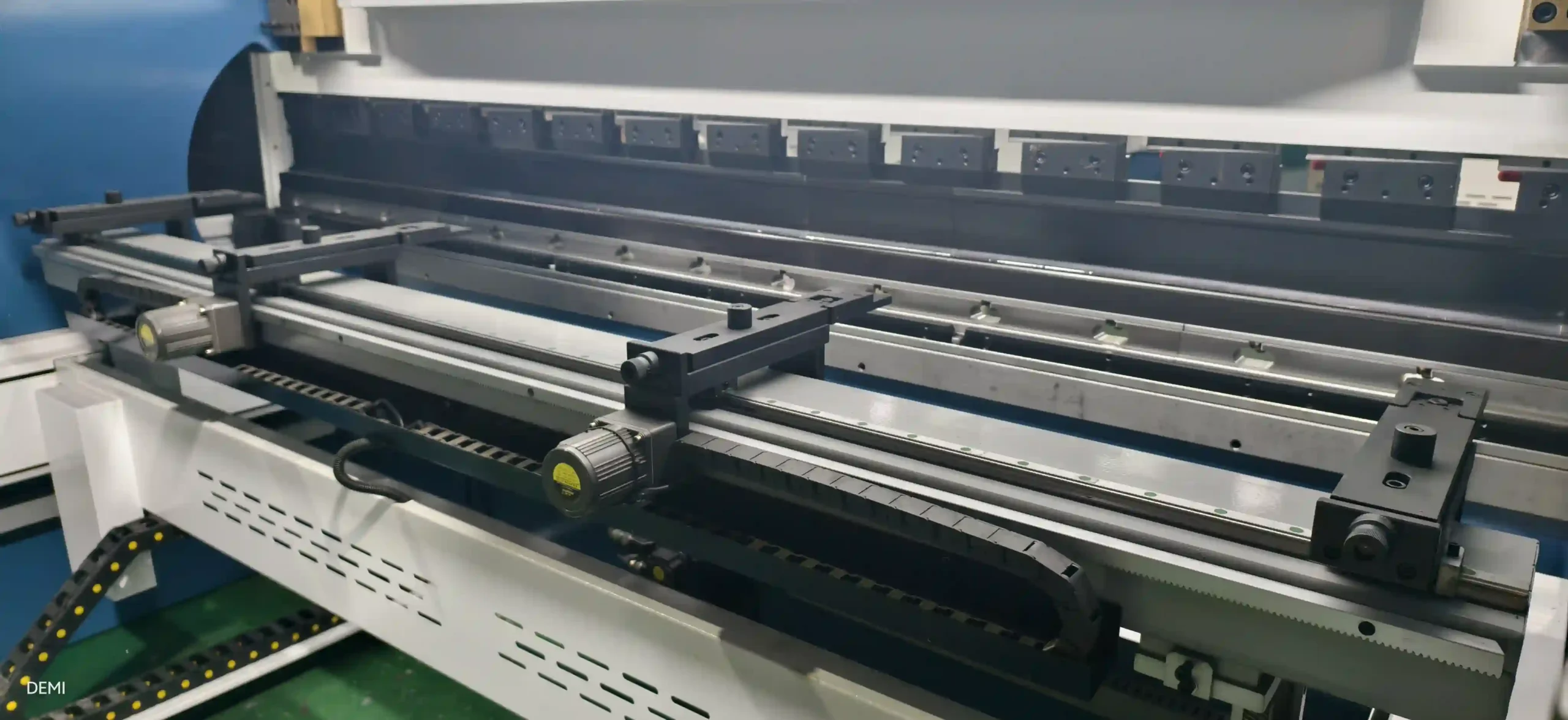

Optional 4+1+2 Axis Reinforced Back Gauge
For customers who choose the DA53TX 4+1 axis configuration, MACHNIST can also provide an optional reinforced 4+1+2 axis back gauge. It adds two motorized Z-axis finger movements without requiring a full 6+1 axis CNC system upgrade.

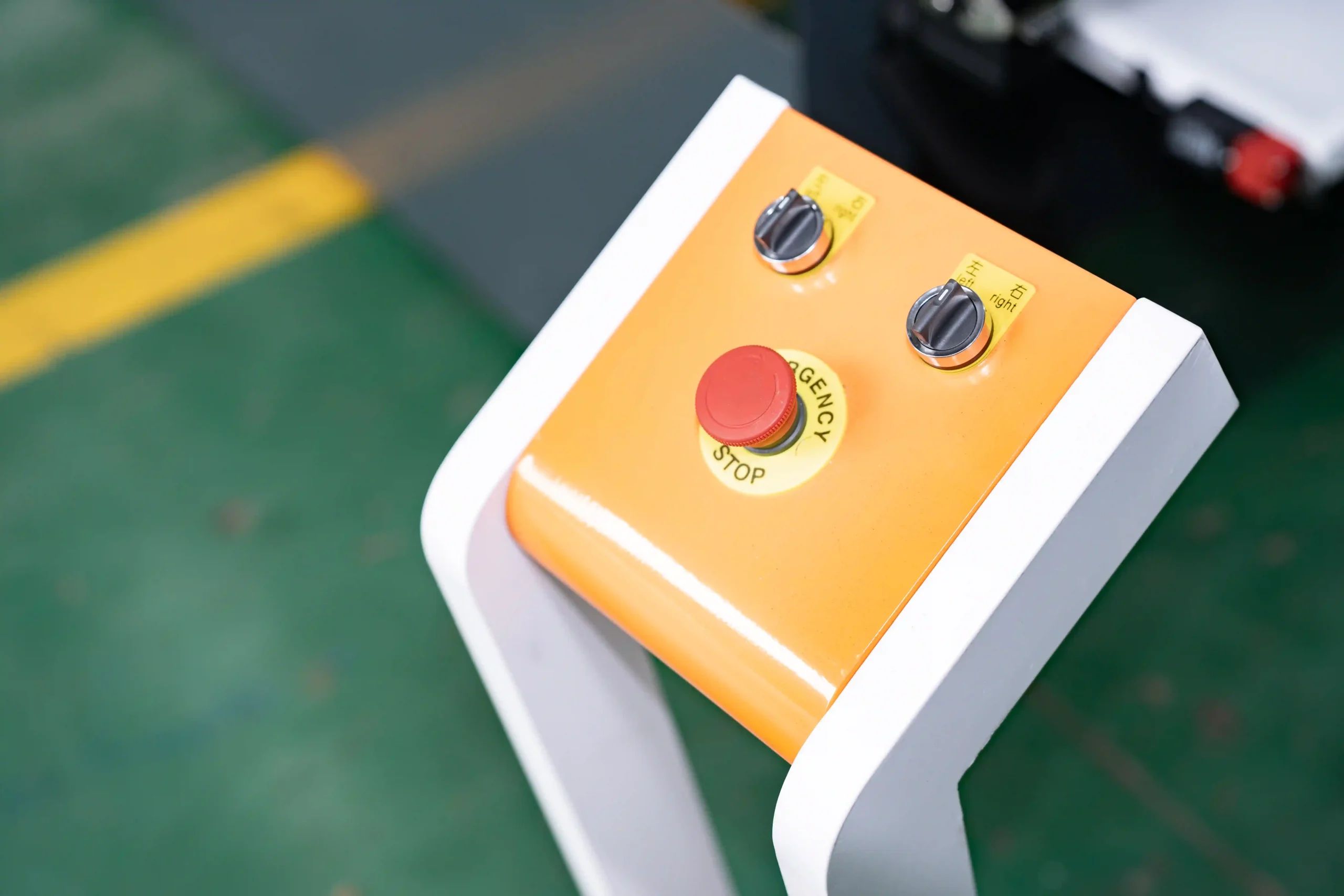

The Z1 and Z2 fingers can be moved by electric control buttons installed on the foot pedal. This makes operation easier and safer, because the operator does not need to put hands inside the back gauge area for manual adjustment.
- Lower cost than a full 6+1 axis CNC back gauge
- Motorized Z1/Z2 movement by button control
- No additional CNC system authorization module required
- More convenient than manual finger adjustment
- Safer operation for daily bending work
