Machine Images
-

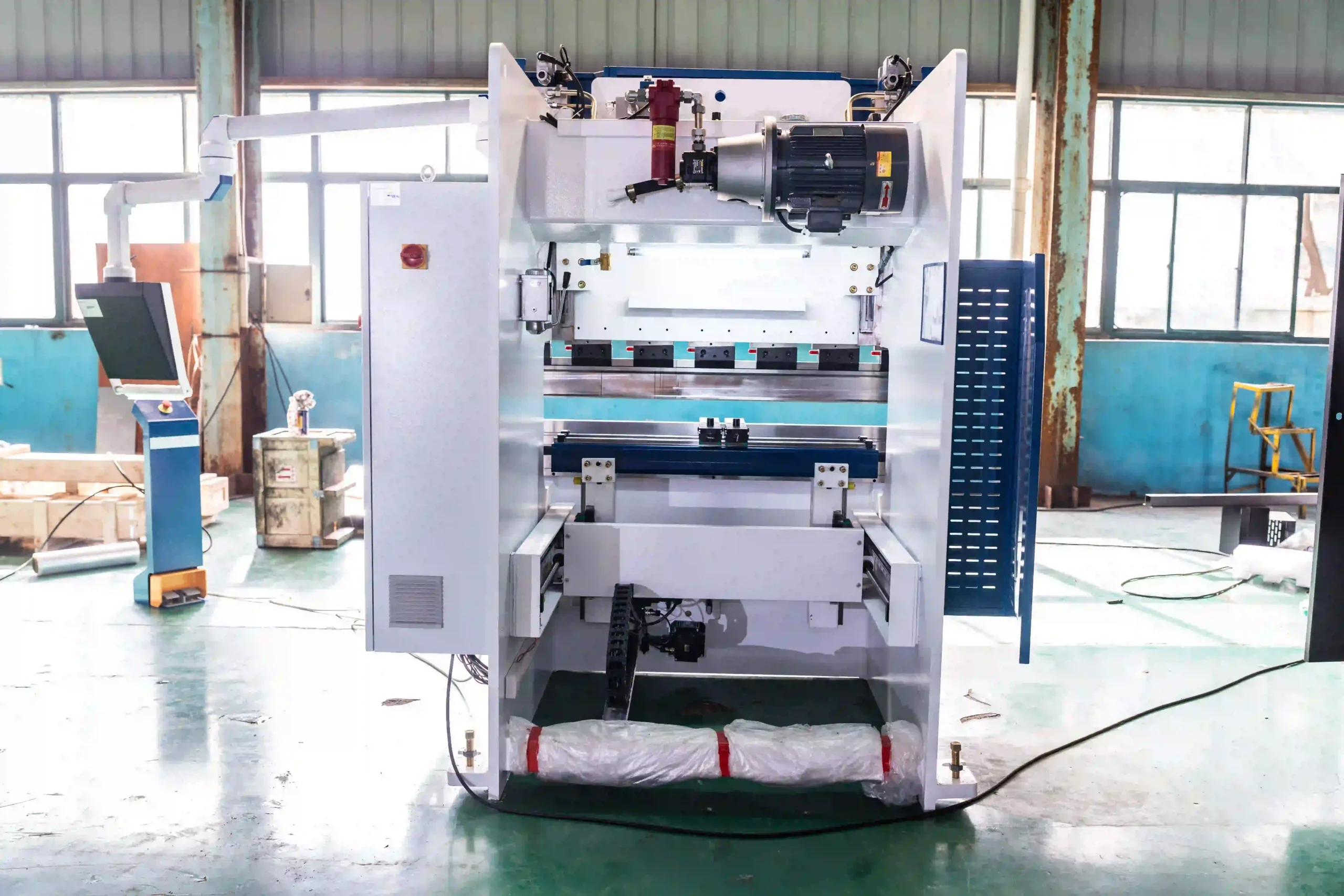

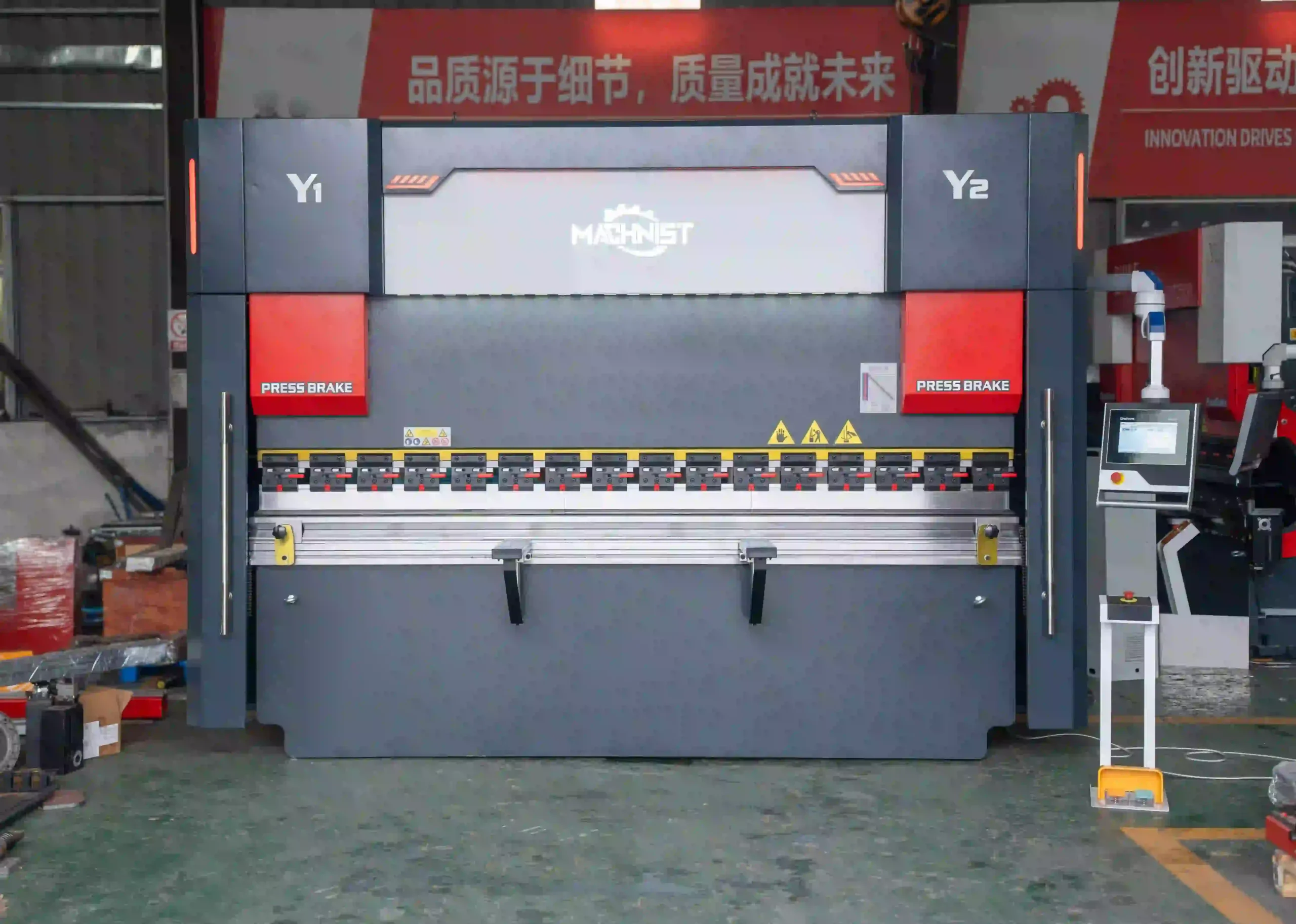

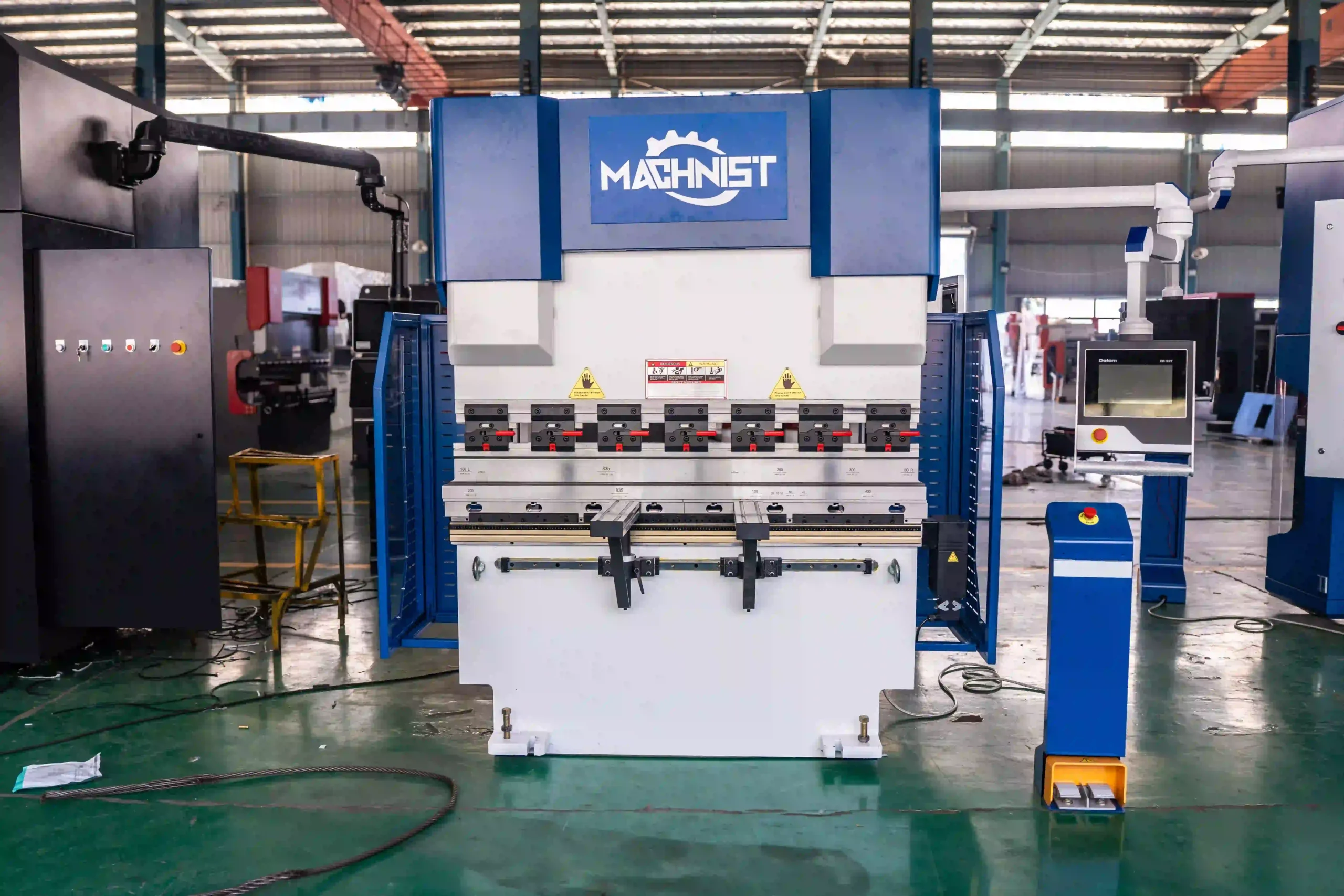

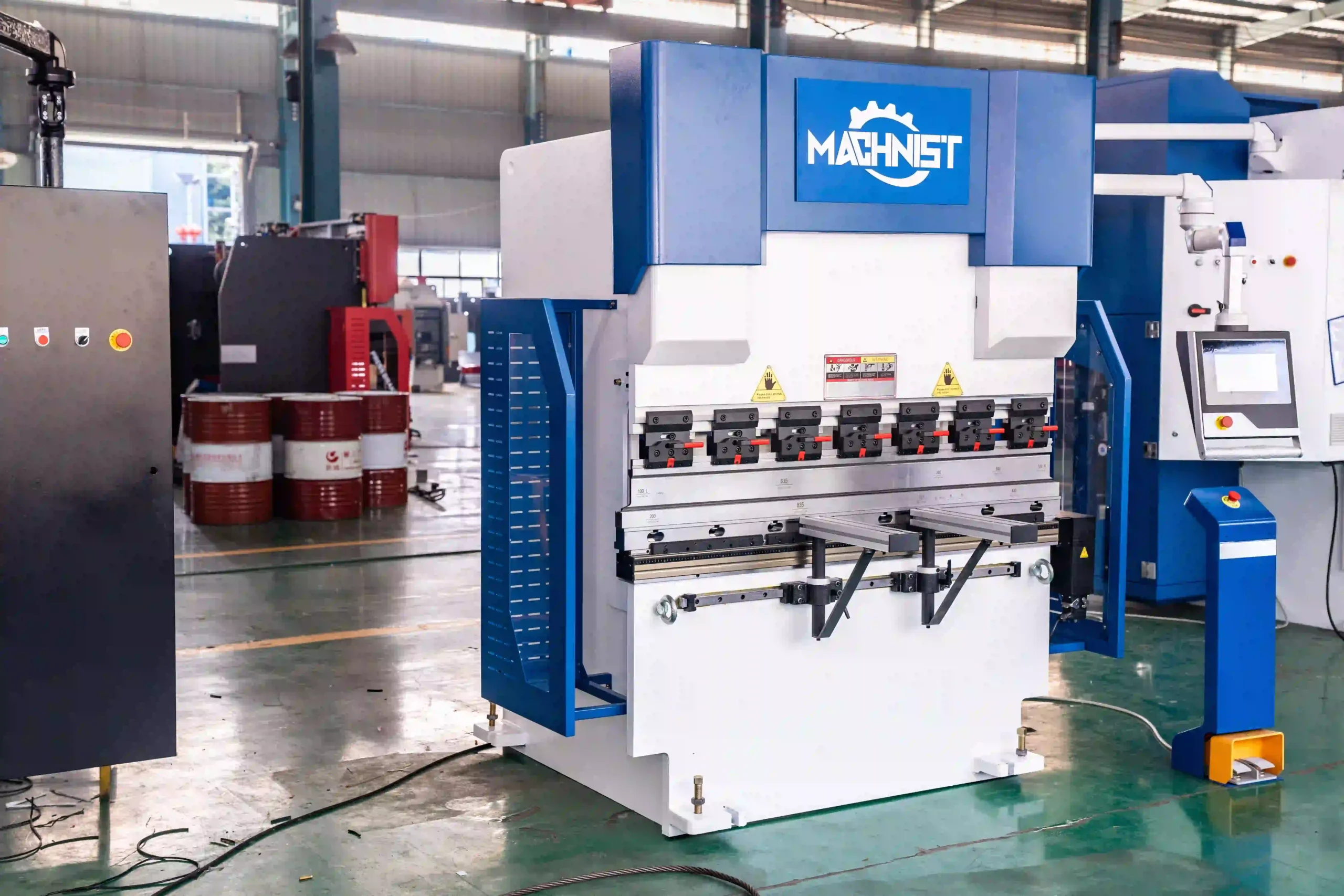

- Machnist Hydraulic CNC Press Brake – 50T1600
-
- Machnist Hydraulic CNC Press Brake – 50T1600
A compact CNC hydraulic press brake solution for light sheet metal bending and precision fabrication work.
A compact CNC hydraulic press brake solution for light sheet metal bending and precision fabrication work.
Country
Saudi Arabia
City
Jeddah
Installation Year
2022
Customer Industry
Light Sheet Metal Fabrication
Customer Type
End User
Machine Type
Hydraulic Press Brake
Machine Model
50T/1600
Controller

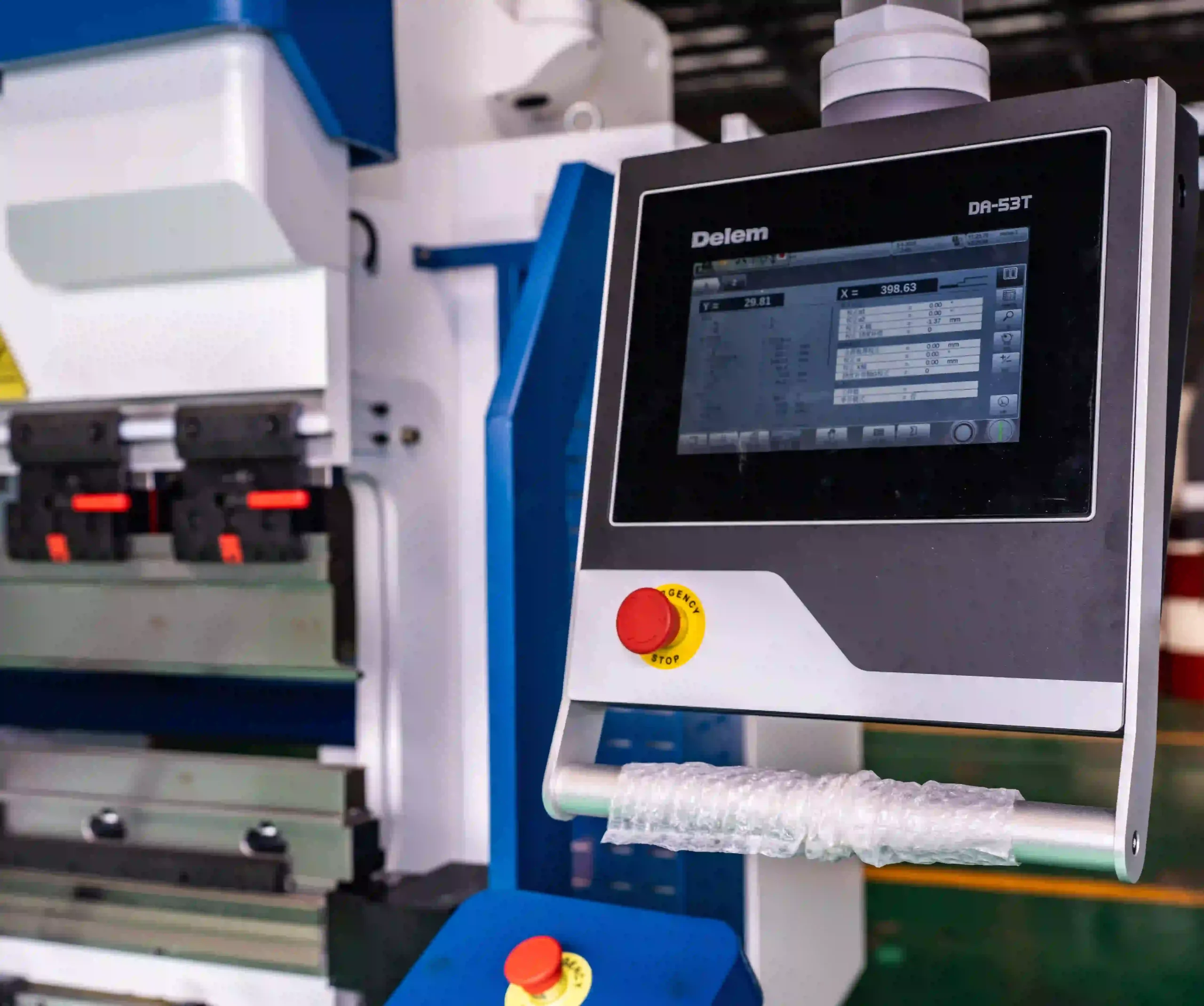

Delem DA53T CNC Controller with 2D Programming
Axis Configuration
4+1 Axis
Machine Configuration

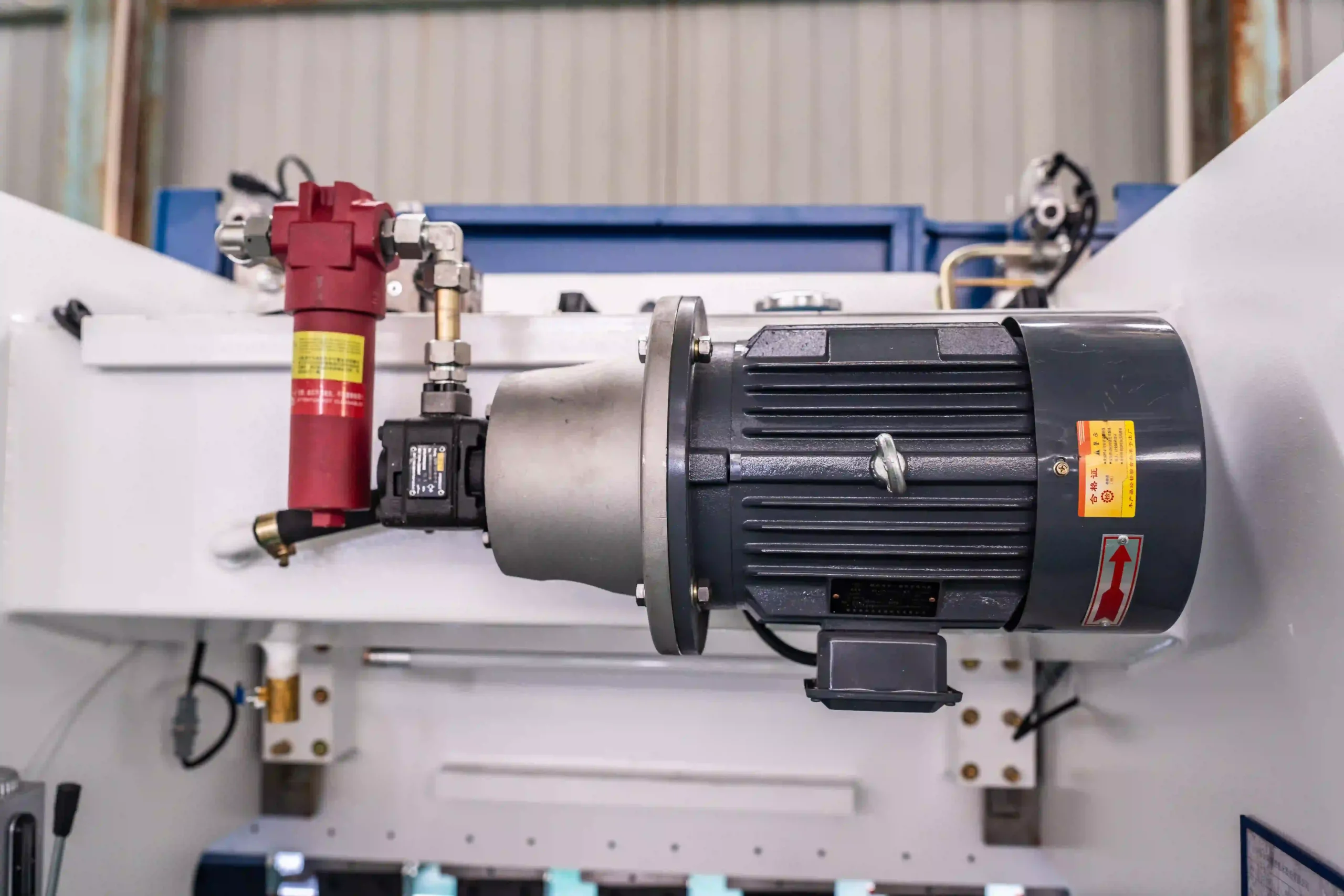

Siemens Standard Motor
Bosch Rexroth Hydraulic Valve Group
Italian GIVI Linear Scales

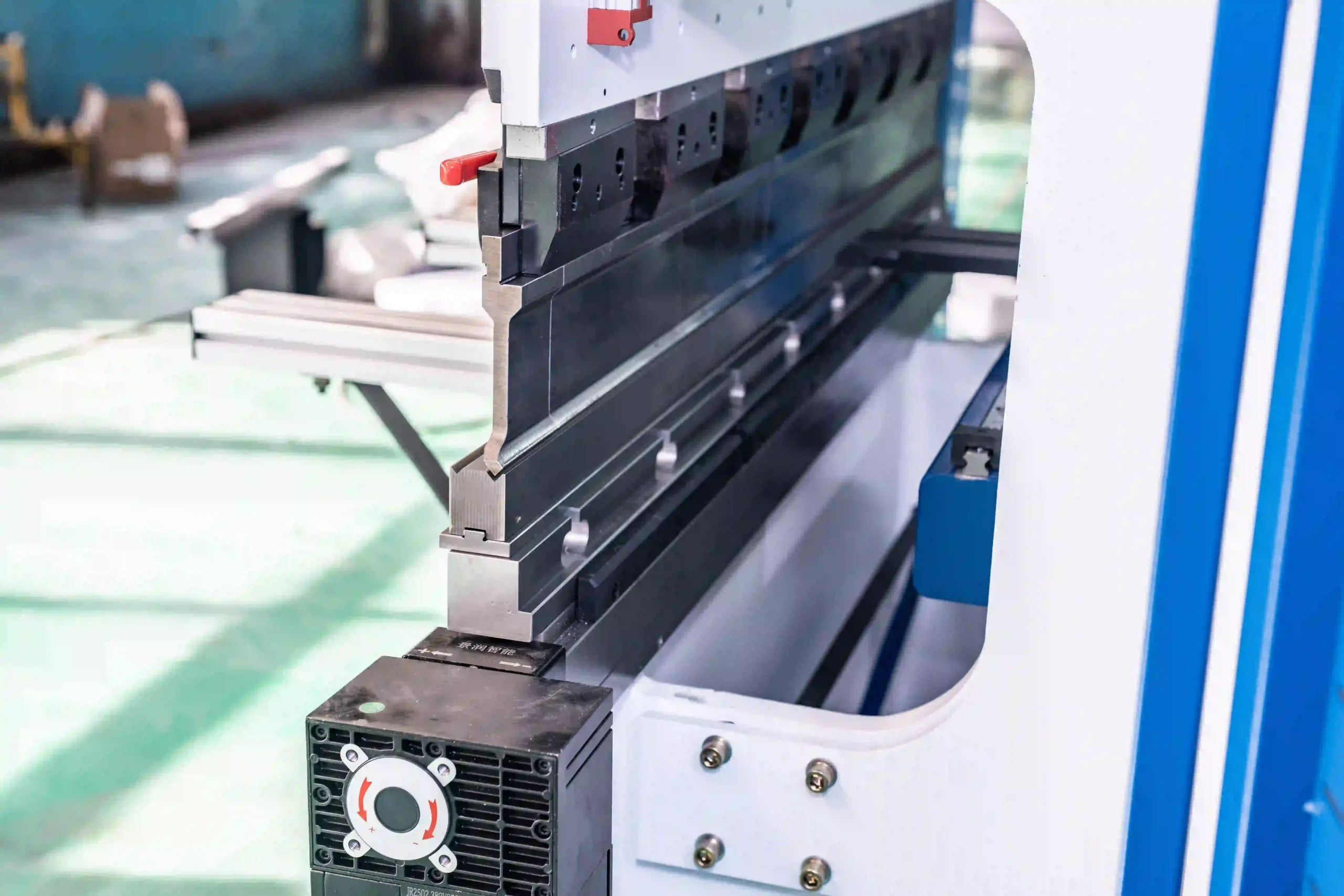

Electric Mechanical Crowning
Delem DA53T CNC controller with 2D programming, 4+1 axis control, Siemens standard motor, Bosch Rexroth hydraulic valve group, Italian GIVI linear scales, fast clamping system, Machnist self-centering double V lower die, and electric mechanical crowning for stable bending accuracy.
Customer Requirement
The customer was looking for a compact CNC hydraulic press brake for light sheet metal bending work. Since the machine was selected during the Jeddah exhibition, the customer needed a practical, easy-to-operate, and reliable press brake that could be quickly understood and used for daily fabrication jobs.
The main requirements were stable bending accuracy, simple CNC operation, reliable hydraulic performance, quick tooling changes, and a machine structure suitable for small and medium-size sheet metal parts.
Recommended Solution
Based on the customer’s bending needs, we recommended the 50T/1600 CNC hydraulic press brake. This model is suitable for light sheet metal bending, small workpieces, cabinet parts, stainless steel components, aluminum panels, and general fabrication work.
The machine was equipped with a Delem DA53T CNC controller with 2D programming, 4+1 axis control, Siemens standard motor, Bosch Rexroth hydraulic valve group, Italian GIVI linear scales, fast clamps, Machnist self-centering double V lower die, and electric mechanical crowning. This configuration provides a strong balance between operation convenience, bending accuracy, and long-term stability.
Why This Machine
The 50T/1600 CNC hydraulic press brake is a compact but capable bending solution for workshops that need precision, flexibility, and easy operation. Compared with a basic NC press brake, this CNC model gives the operator better control over bending parameters, backgauge positioning, and repeat bending accuracy.

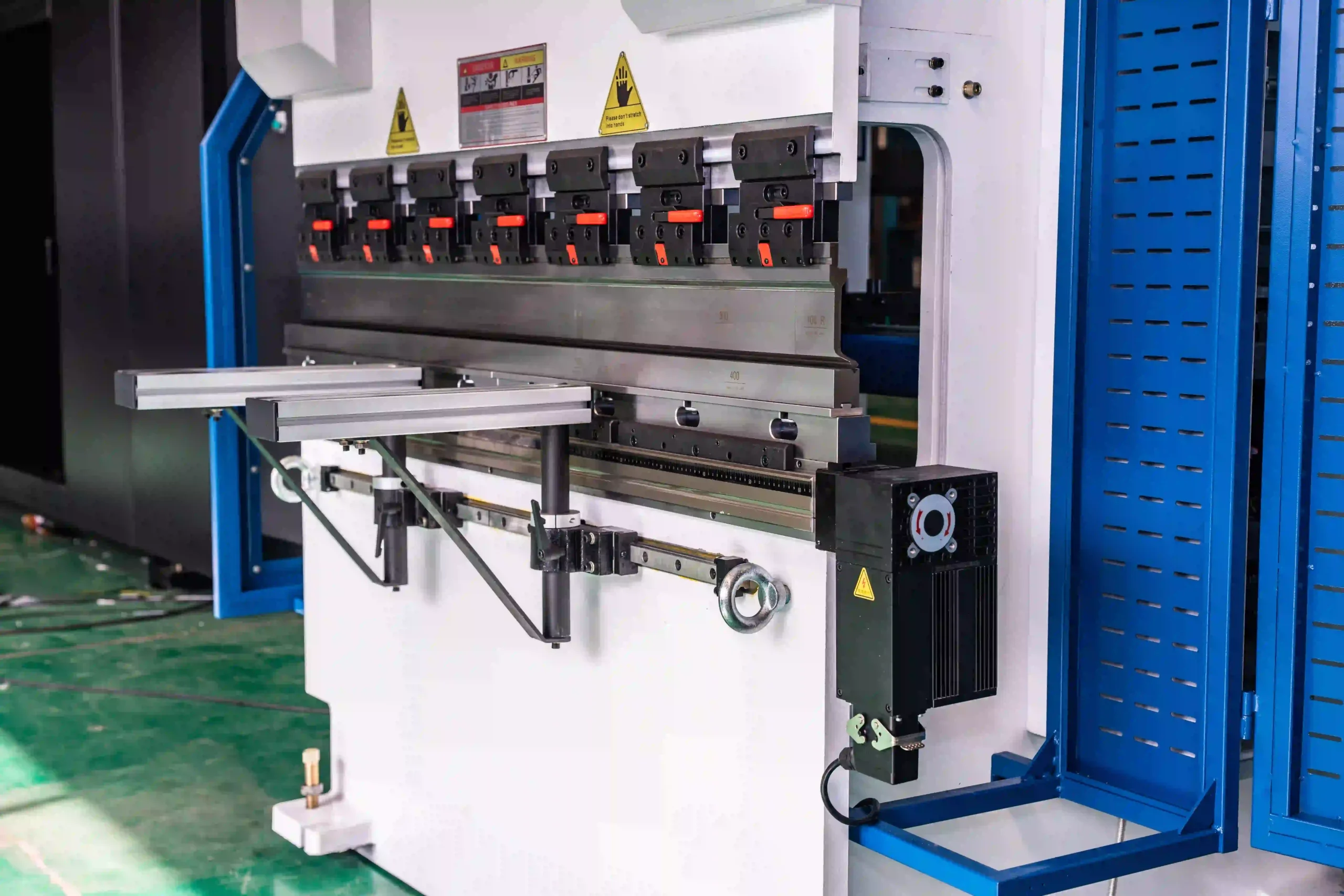

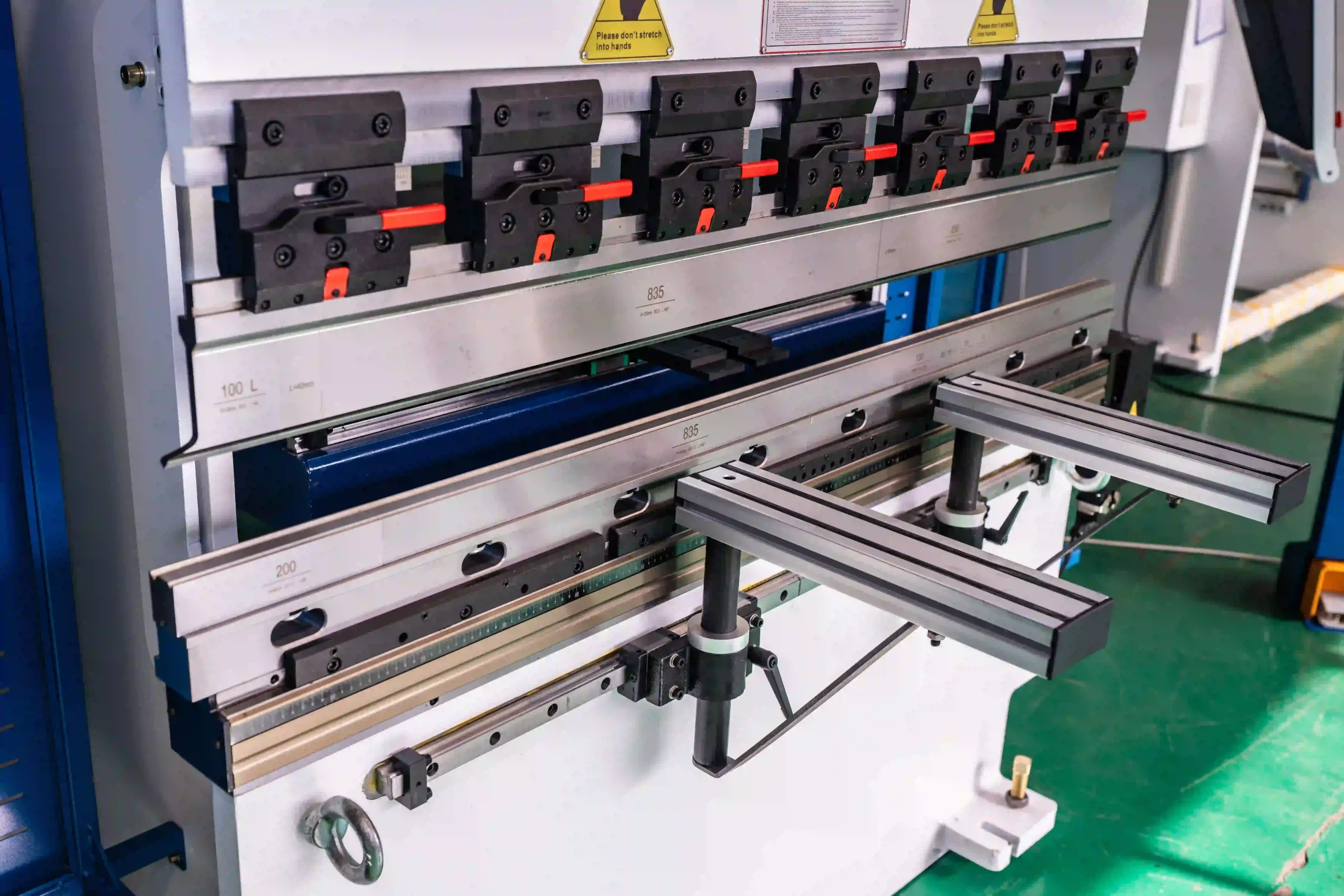

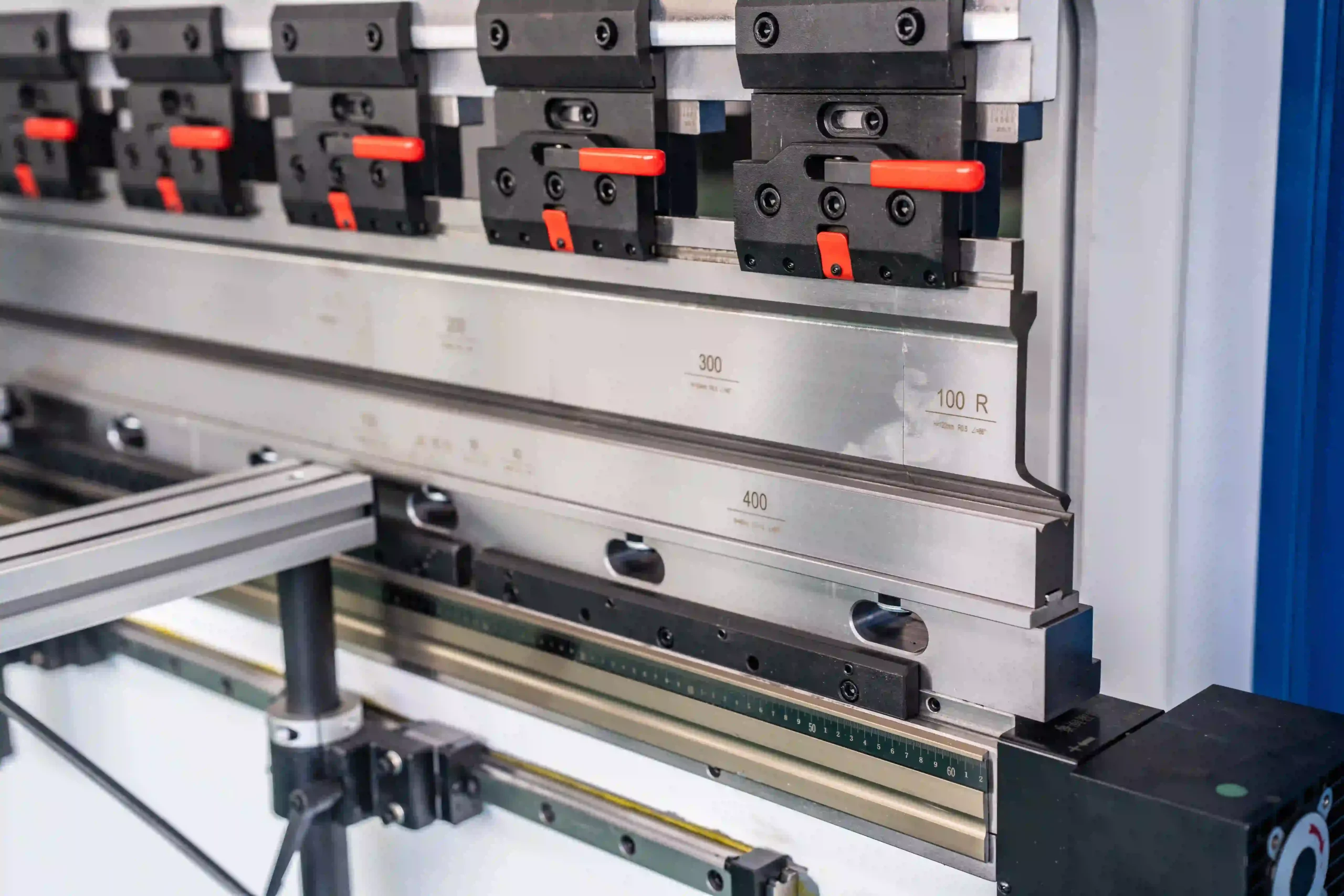

The Delem DA53T controller with 2D programming helps simplify daily operation. The 4+1 axis configuration improves bending flexibility, while the electric mechanical crowning system helps compensate for deflection during bending. The Bosch Rexroth hydraulic valve group and Italian GIVI linear scales support stable and accurate ram movement. Fast clamps and the Machnist self-centering double V lower die also make tool setup faster and more convenient.
Project Result
The machine was successfully sold during the 2022 Jeddah exhibition and matched the customer’s requirements for compact CNC bending equipment. Its configuration made it suitable for daily light sheet metal fabrication, especially where accuracy, simple operation, and stable hydraulic performance are important.
With the DA53T CNC controller, 4+1 axis system, electric mechanical crowning, and reliable hydraulic components, the customer received a practical press brake solution for small and medium-size bending applications.
Customer Feedback
The customer appreciated the compact machine size, CNC control system, quick clamping design, and overall configuration. The machine offered a practical solution for their bending work and provided better efficiency and accuracy compared with basic manual or NC bending equipment.
