- Machnist Hydraulic cnc press brake

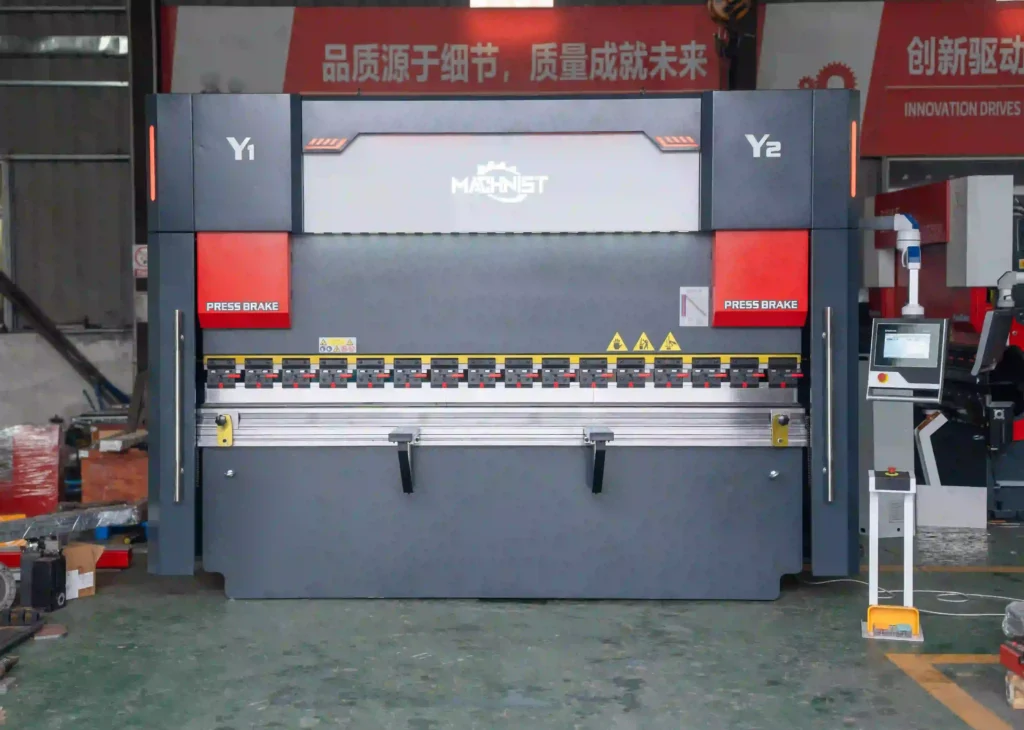

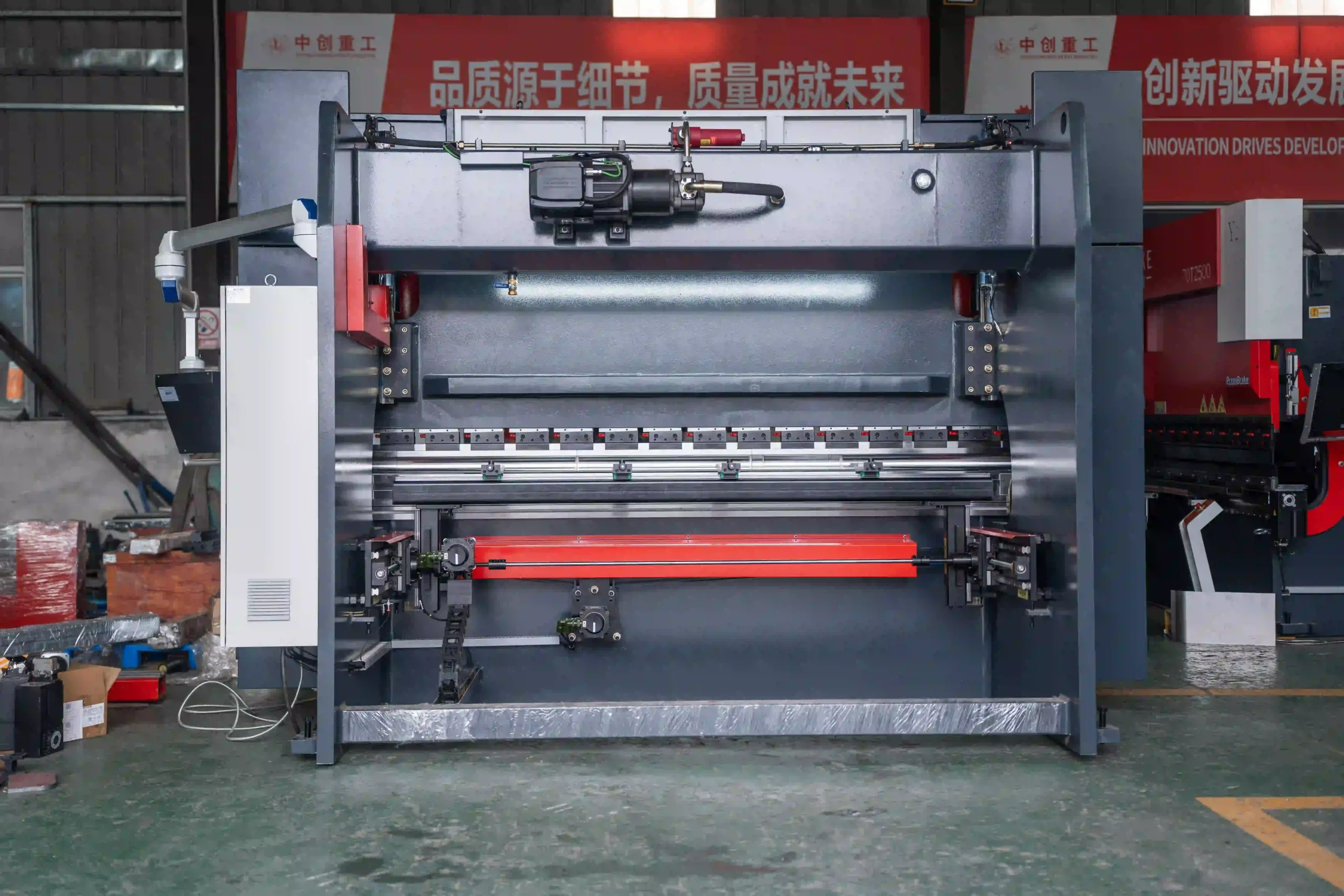

A 170T/3200 CNC hydraulic press brake built for stable, quiet, and efficient sheet metal fabrication.
This 170T/3200 CNC hydraulic press brake was supplied to a metal fabrication workshop in Syria in 2026. The machine was configured with a Delem DA53T CNC controller, 4+1 axis control, Bosch Rexroth servo proportional valve, INOVANCE main servo motor, heavy-duty welded frame, fast tool clamping, multi-V lower die, reinforced backgauge fingers, semi-enclosed side guards, and a customized modern sheet metal appearance.
Country
Syria
City
Aleppo
Installation Year
2026
Customer Industry
Metal Fabrication Workshop
Customer Type
End User
Machine Type
CNC Press Brake
Machine Model
170T/3200
Controller
Delem DA53T CNC Controller
Axis Configuration
4+1 Axis
Machine Configuration
INOVANCE Main Servo Motor
Germany REF Servo Proportional Valve

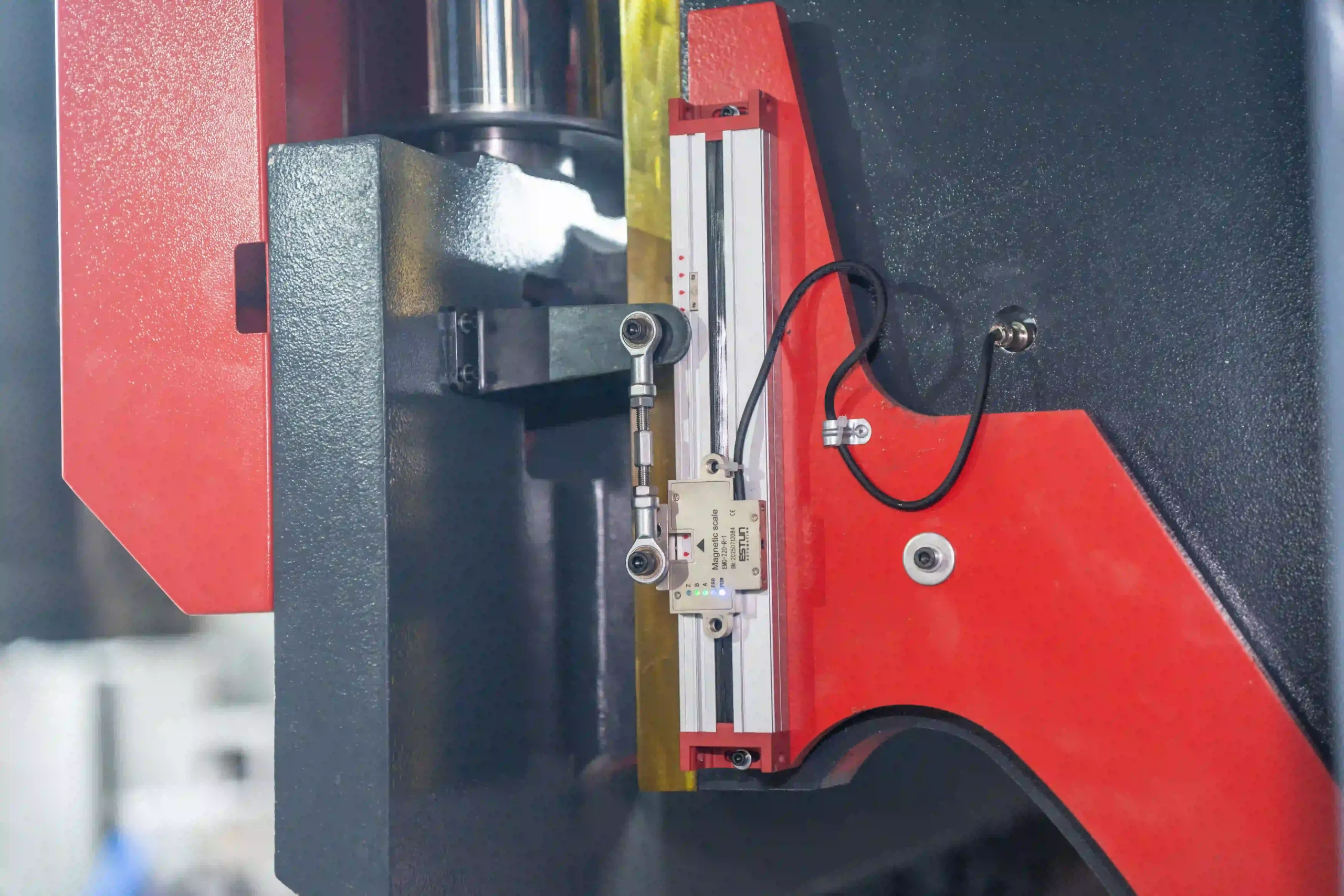

Estun Linear Scale
CNC Crowning System
Delem DA53T CNC controller, 4+1 axis control, Bosch Rexroth servo proportional valve, INOVANCE main servo motor for energy-saving and quiet operation, heavy-duty welded frame with 50/60/80 mm high-strength plates, semi-enclosed side safety guards, fast tool clamping system, economical multi-V lower die, four reinforced backgauge fingers, and customized modern sheet metal covers.
Customer Requirement
The customer is a metal fabrication workshop in Syria. They needed a CNC hydraulic press brake for regular sheet metal bending jobs, including medium-thickness plates, custom metal parts, and daily subcontract fabrication work.
Their main requirements were stable bending accuracy, strong machine structure, easy operation, safer working protection, higher production efficiency, and lower operating noise. Since the machine would be used in a metal processing workshop, durability and practical tooling configuration were also important.
Recommended Solution
Based on the customer’s production needs, we recommended a 170T/3200 CNC hydraulic press brake with Delem DA53T controller and 4+1 axis configuration. This model provides enough bending force and working length for common sheet metal fabrication work while keeping the machine practical, efficient, and easy to operate.

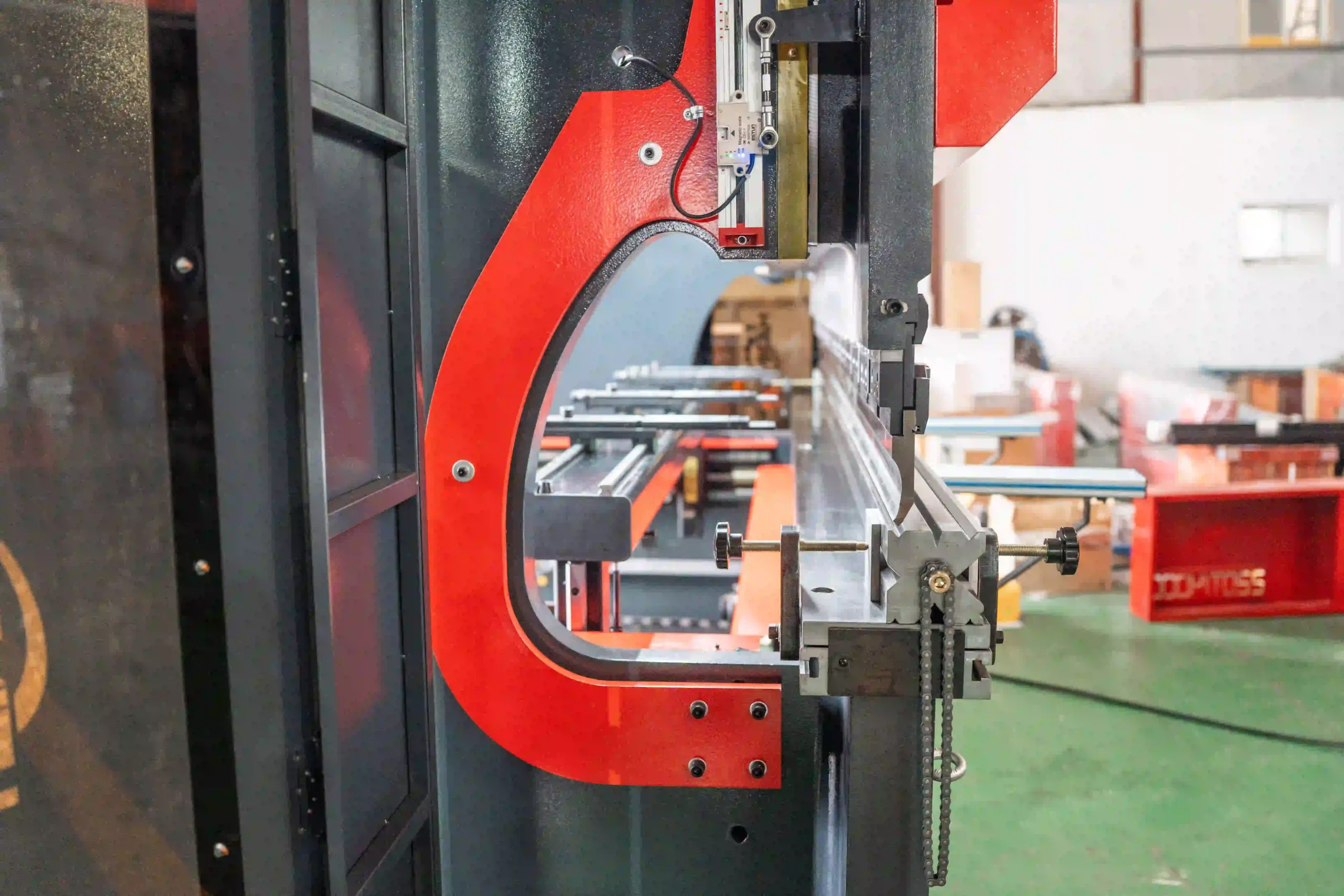

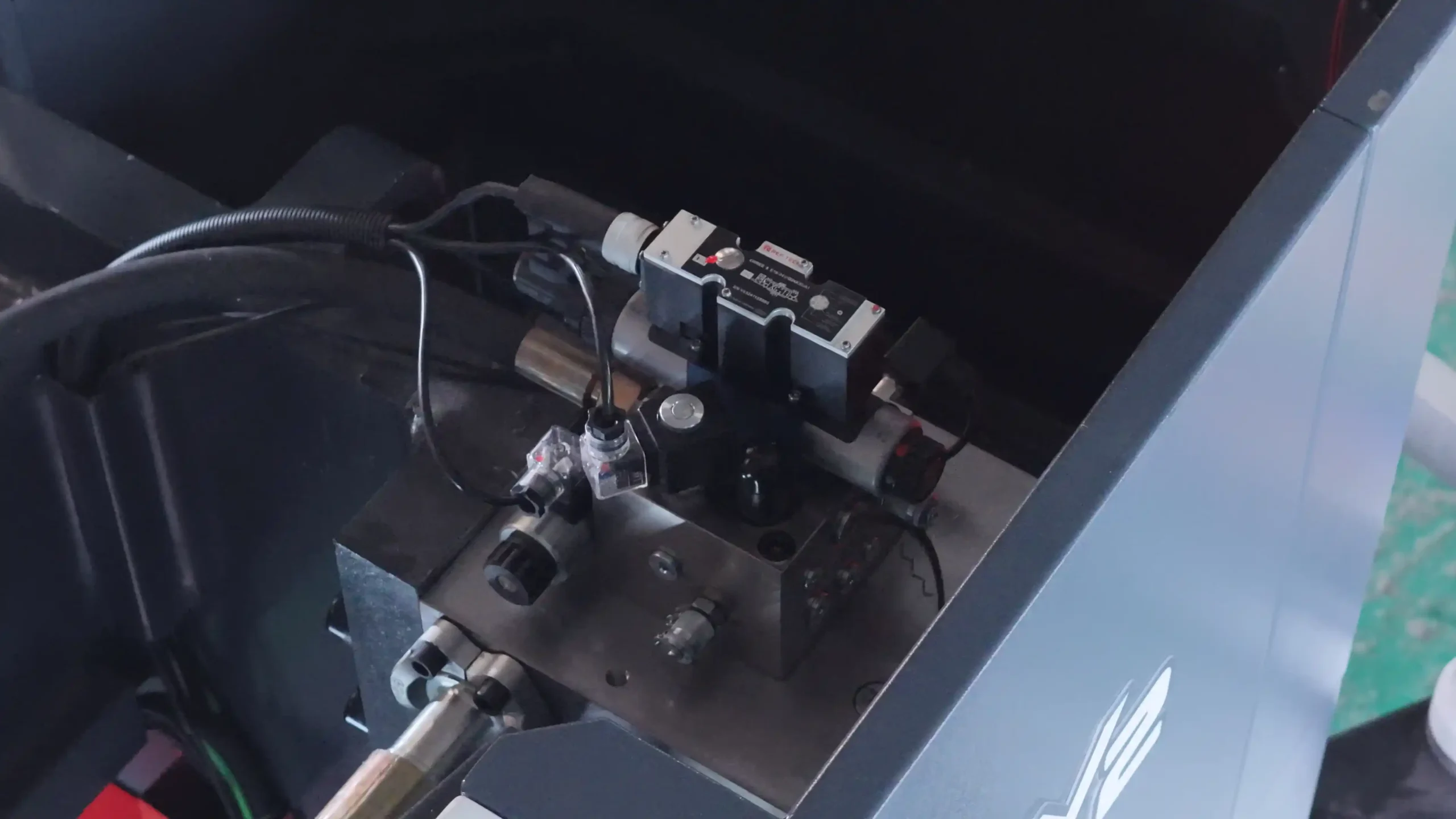

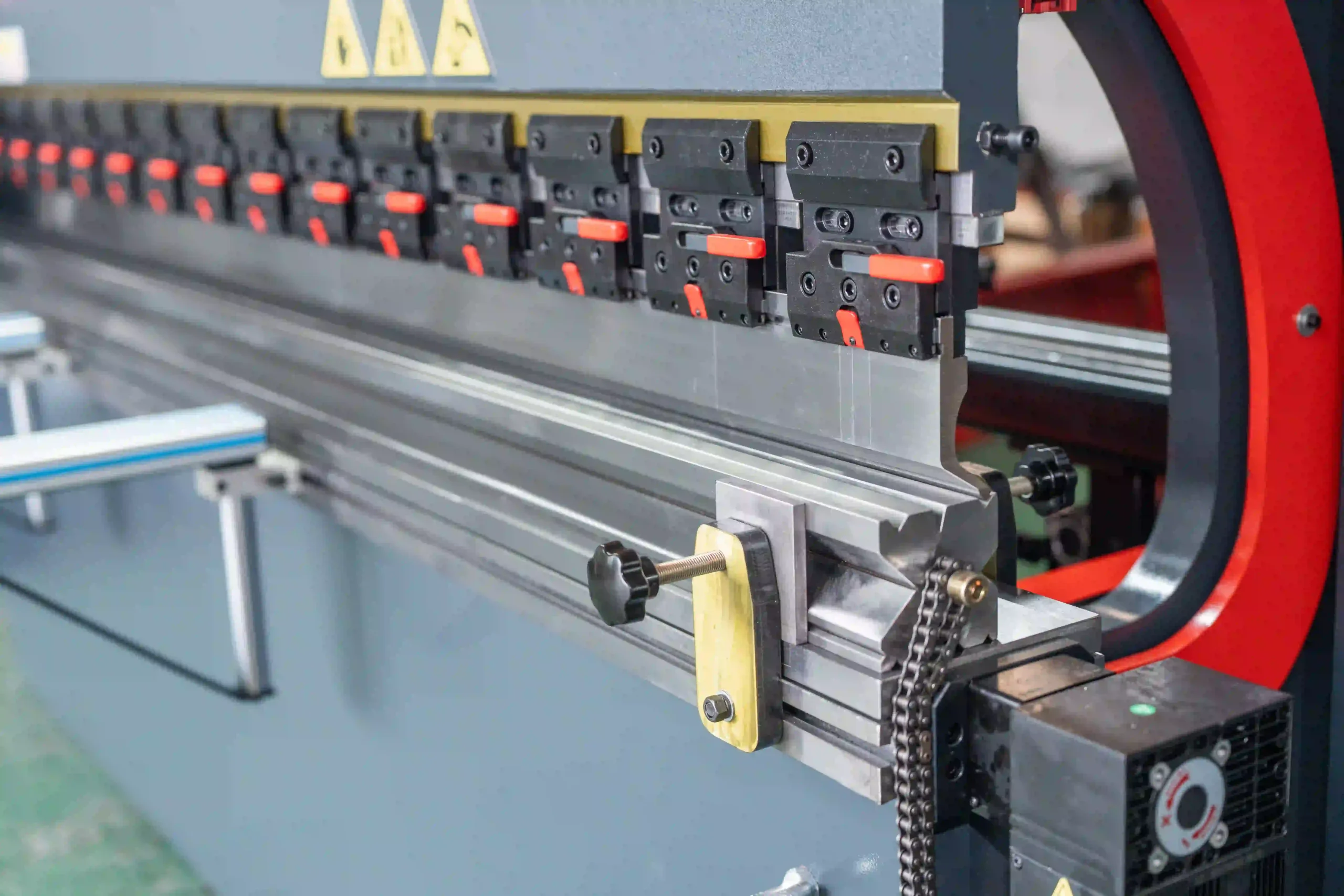

The machine was equipped with a Bosch Rexroth servo proportional valve for stable hydraulic control and an INOVANCE main servo motor for energy-saving and quieter operation. The frame was built with 50/60/80 mm high-strength welded plates for the side wall, ram, and worktable structure. To improve safety, we added semi-enclosed side guards. To improve production efficiency, the machine used fast tool clamps that allow the tooling to be inserted directly from the bottom.
Why This Machine
The 170T/3200 CNC hydraulic press brake is a strong and practical choice for metal fabrication workshops that need both bending capacity and stable accuracy. The 3200 mm bending length covers most common sheet metal jobs, while the 170-ton bending force is suitable for a wide range of medium-duty applications.

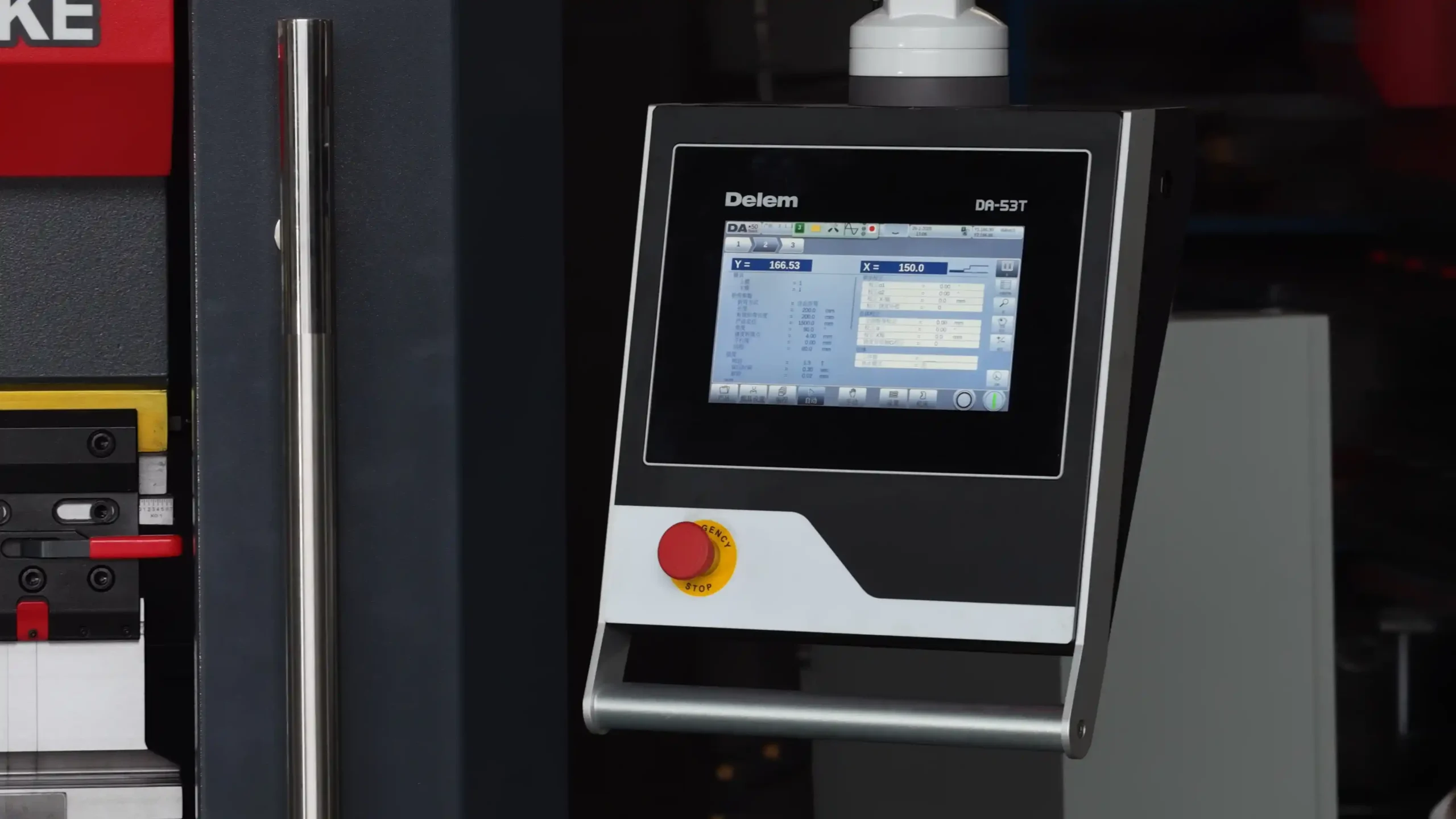

The Delem DA53T controller makes operation easier and more reliable for daily production. The Bosch Rexroth servo proportional valve helps ensure stable ram movement and repeatable bending performance. The INOVANCE main servo motor reduces energy consumption and makes the machine quieter during operation.

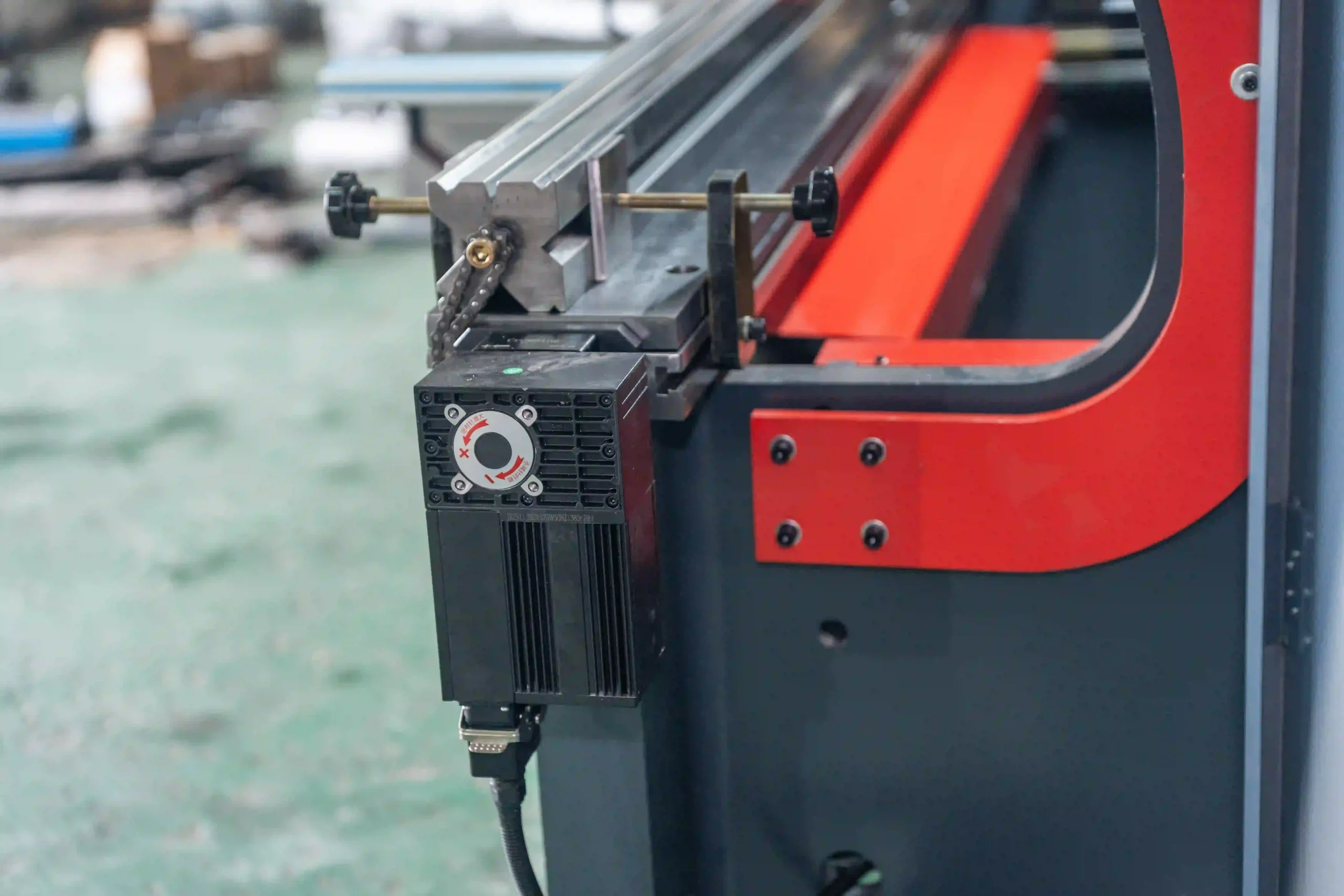

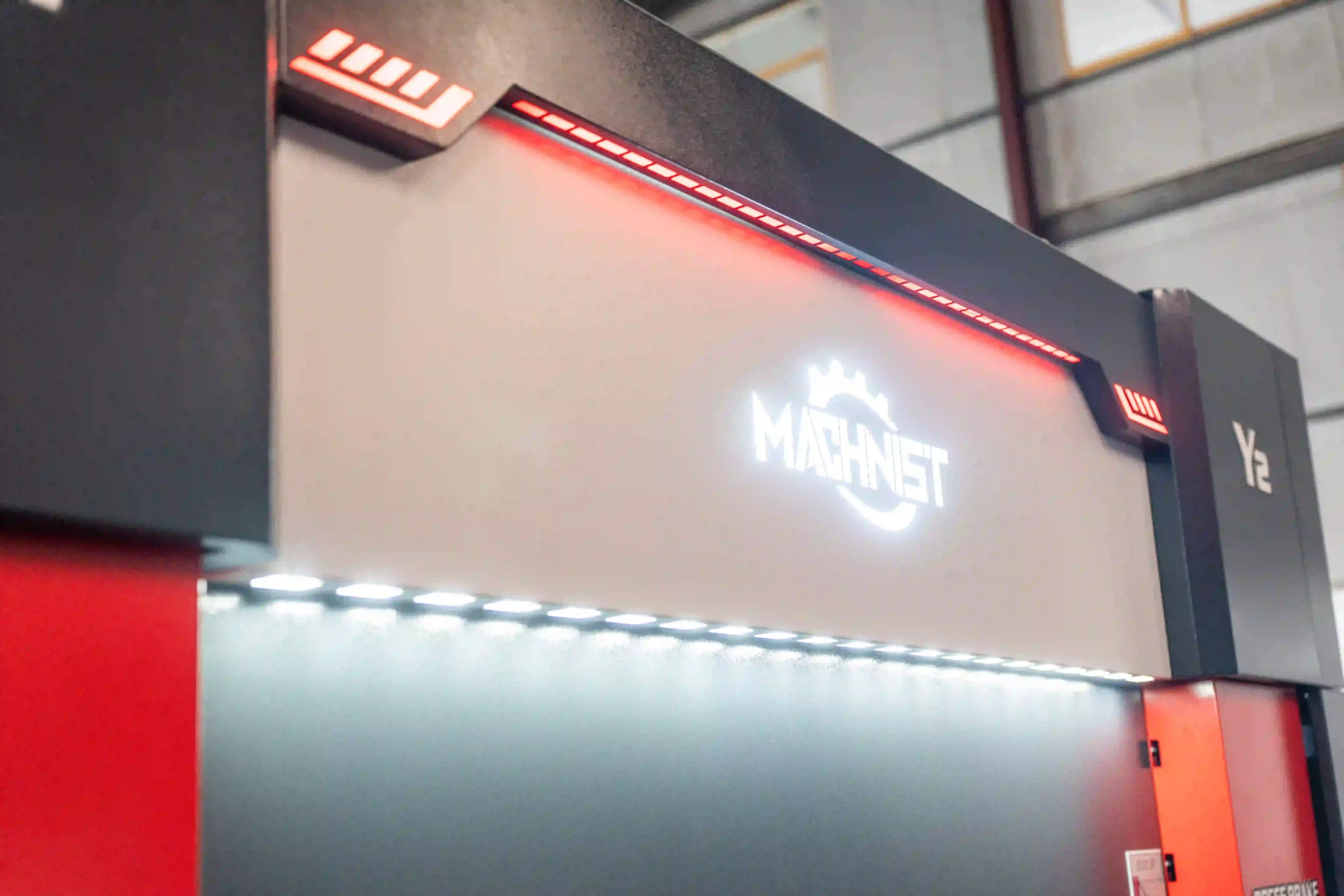

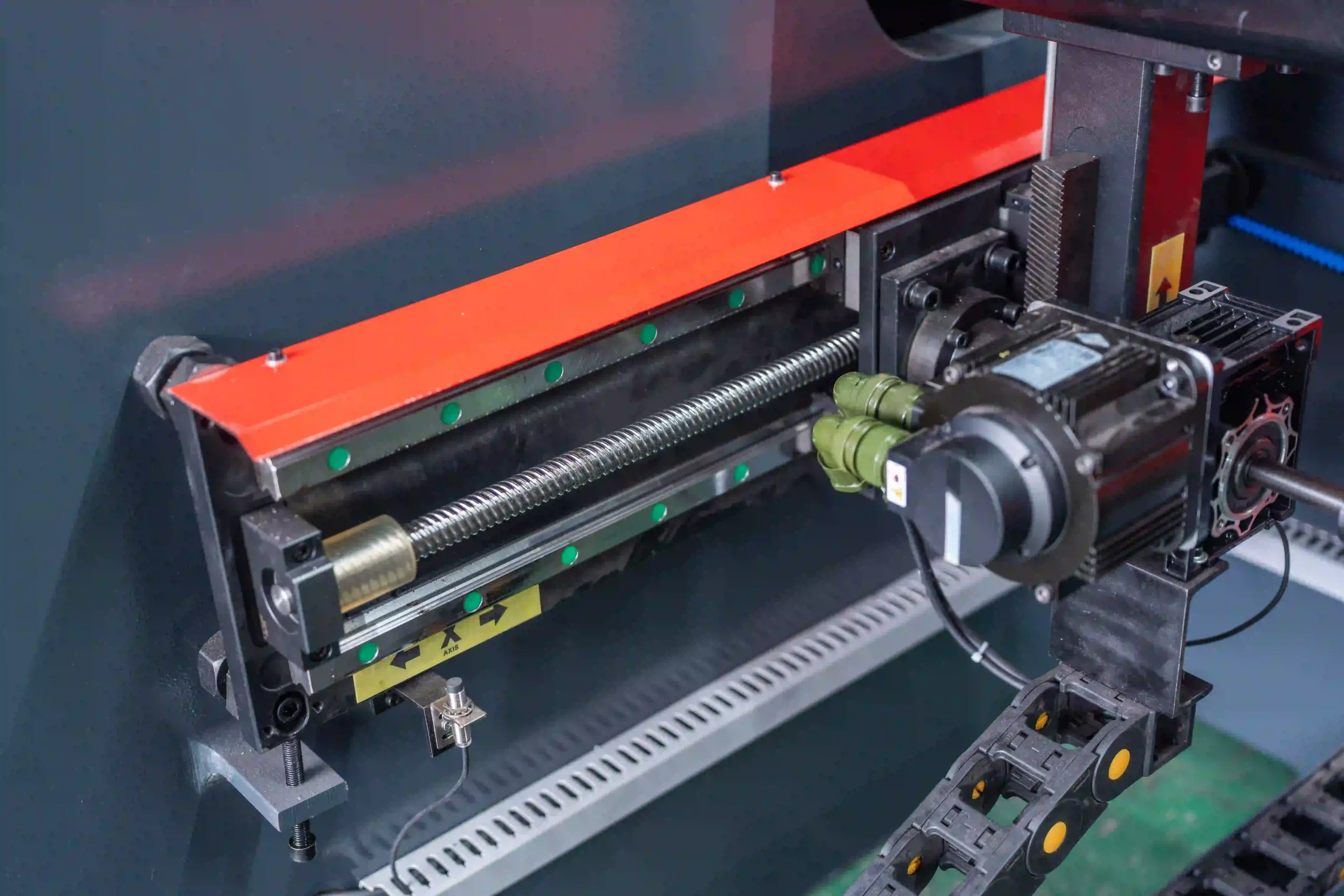

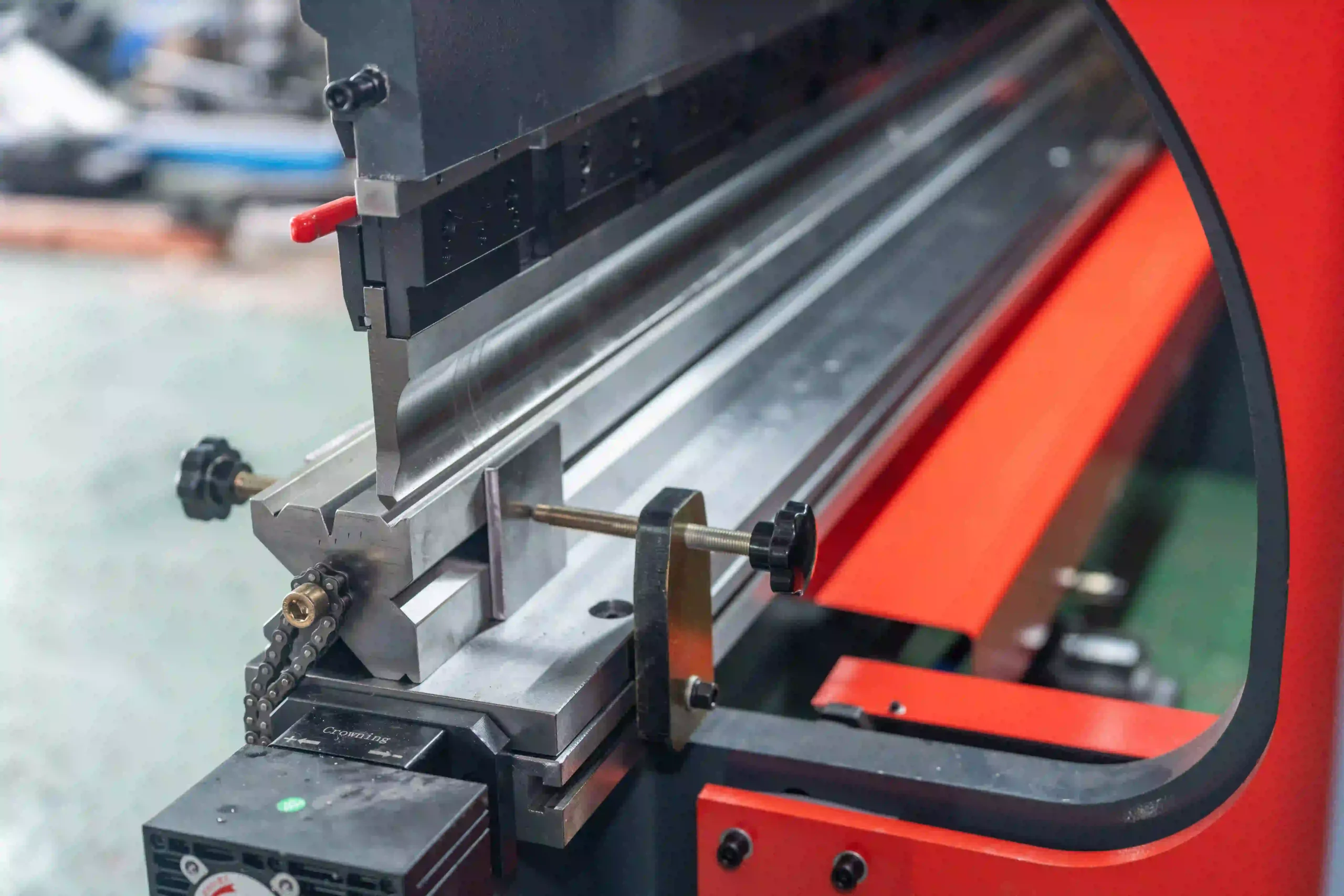

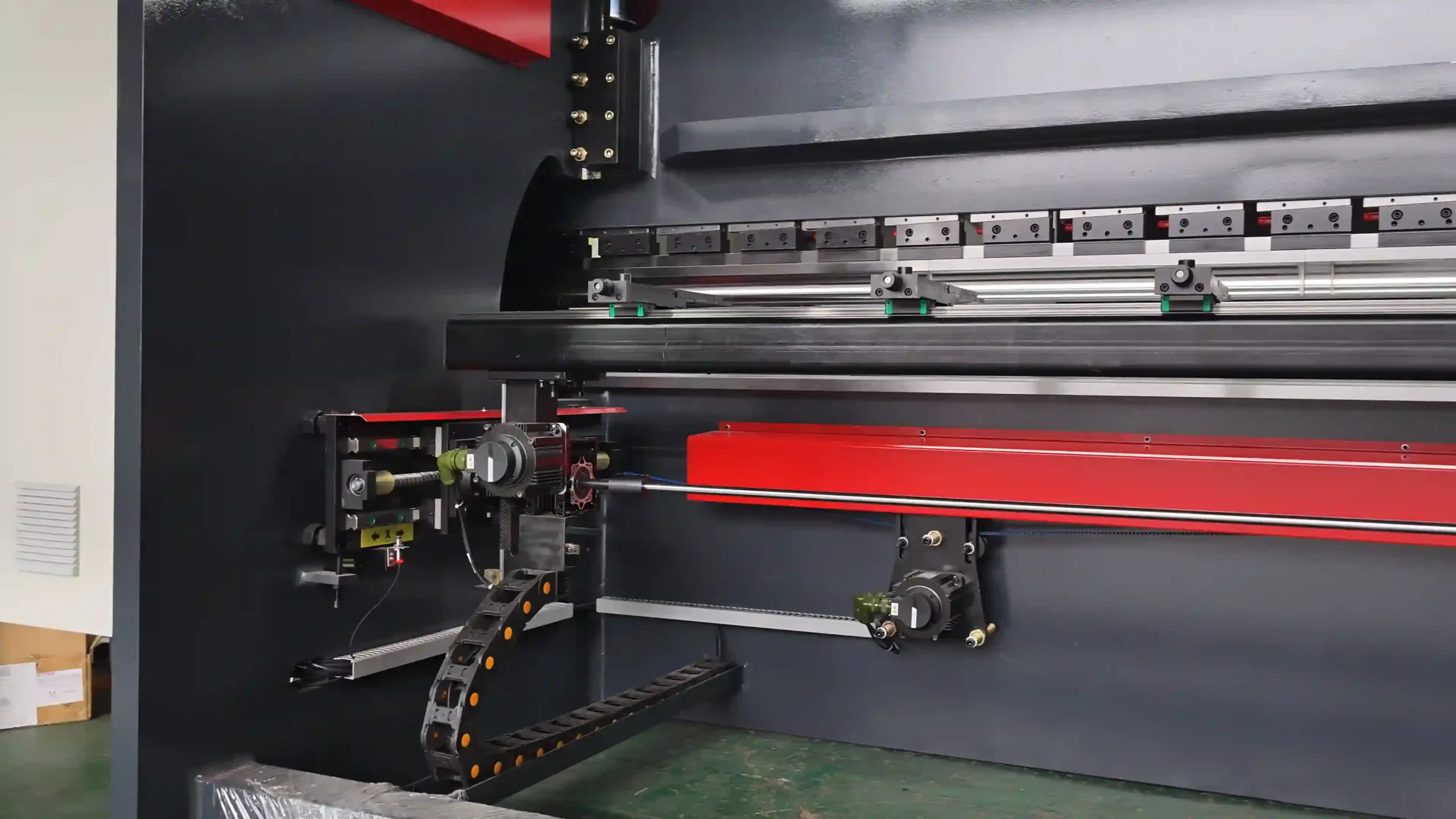

The heavy-duty 50/60/80 mm welded structure improves long-term frame rigidity. The fast clamping system saves time during tooling changes, and the multi-V lower die gives the customer an economical and flexible tooling solution for different material thicknesses. The reinforced backgauge fingers improve positioning stability, while the customized sheet metal cover gives the machine a cleaner and more modern appearance.
Project Result
The machine provided the customer with a reliable CNC bending solution for daily metal fabrication work. With the DA53T CNC controller, 4+1 axis system, servo hydraulic valve, energy-saving servo motor, and reinforced machine frame, the press brake was suitable for stable long-term production.
The fast clamping system and multi-V lower die improved tooling convenience and helped the customer handle different bending jobs more efficiently. The semi-enclosed side guards also improved operator safety, while the customized exterior design made the machine look more professional in the workshop.
Customer Feedback
The customer was satisfied with the machine structure, bending stability, quiet operation, and practical tooling configuration. They especially appreciated the fast clamping system, economical multi-V lower die, reinforced backgauge fingers, and the customized modern appearance of the machine.
