Stable 3000W sheet metal cutting solution with industrial-grade laser, motion and gas control components

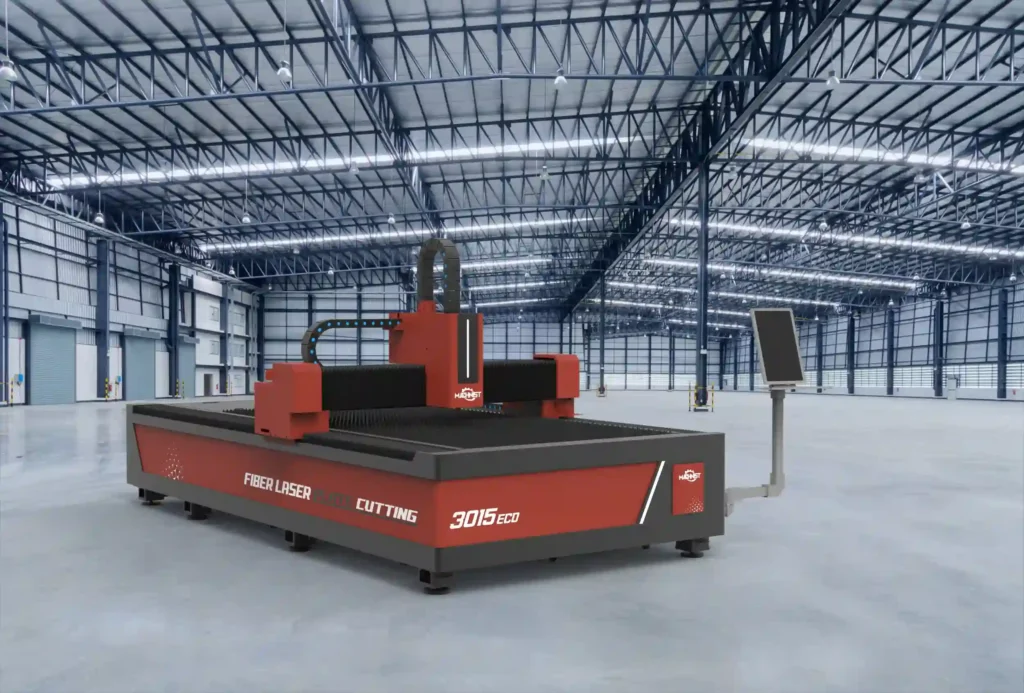

This 3015 single-table fiber laser cutting machine is configured for efficient and stable sheet metal processing. The solution uses a 3000W CE-version MAX laser source according to the selected order, a BOCI BLT421 cutting head, Hanli water chiller, Inovance 630 series servo motors, Motovario reducers, Schneider electrical components and SMC proportional gas control. An aluminum crossbeam supports responsive motion, while two machine bed solutions are available for different production and investment requirements.
Country
Brazil
City
São Paulo
Installation Year
2023
Customer Industry
Sheet Metal Fabrication
Customer Type
Dealer
Machine Type
Fiber Laser Cutting Machine
Machine Model
3015 Single-Table Fiber Laser Cutting Machine · 3000W
Controller
FSCUT Bochu 2000E
Axis Configuration
Machine Configuration
Inovance 630 Series Servo Motors
3015 single-table structure with a 1500 × 3000 mm working area for metal sheet cutting.
3000W CE-version Raycus or MAX fiber laser source, selected according to the actual order specification, with one-year international warranty coverage.
BOCI BLT421 laser cutting head selected as a high-performance Chinese-brand cutting solution for stable 3000W sheet processing.
Hanli 3000W water chiller for controlled cooling of the laser source and cutting-head system.
Inovance 630 series servo motors combined with Motovario reducers for responsive and stable motion control.
Schneider electrical components and SMC proportional valve for reliable electrical control and assist-gas regulation.
Aluminum crossbeam designed to reduce moving inertia while maintaining the required rigidity, supporting faster acceleration and more stable deceleration.
Two bed structure options available: a heavy-duty plate-welded bed with an overall weight of approximately 3.8 tons, or an economical bed structure with an overall weight of approximately 2.2 tons.
Customer Requirement
The application required a practical 3000W fiber laser cutting solution for processing metal sheets within a 1500 × 3000 mm working area. The machine needed reliable laser output, stable motion performance, controlled assist-gas regulation and a component configuration suitable for overseas service and long-term daily operation.
Recommended Solution
MACHNIST provided a 3015 single-table 3000W fiber laser cutting machine configured with a CE-version Raycus or MAX laser source according to the final order, a BOCI BLT421 cutting head, Hanli water chiller, Inovance 630 series servo motors, Motovario reducers, Schneider electrical components and an SMC proportional valve. The aluminum crossbeam was selected to support responsive movement with lower moving inertia. Depending on the customer’s production requirements and investment plan, the machine can be supplied with either a 3.8-ton plate-welded heavy-duty bed or a 2.2-ton economical bed structure.
Why This Machine
The 3015 single-table model is a practical solution for customers who primarily process metal sheets and do not require an exchange-table structure. The 3000W power level supports efficient sheet cutting applications, while the selected laser source, cutting head, cooling system, servo drive components, electrical components and gas control system form a stable and serviceable configuration for overseas users. The available bed structure options also allow the machine to be matched to different production intensity and investment requirements.
Project Result
After production, the machine configuration and installed components were inspected before shipment. The completed machine provides a clear and traceable configuration for the customer, including the laser source, cutting head, water chiller, servo drive components, electrical system, gas control components, crossbeam structure and selected machine bed solution. Cutting-test images, machine inspection photos and delivery records can be provided as part of the final acceptance process.
